22

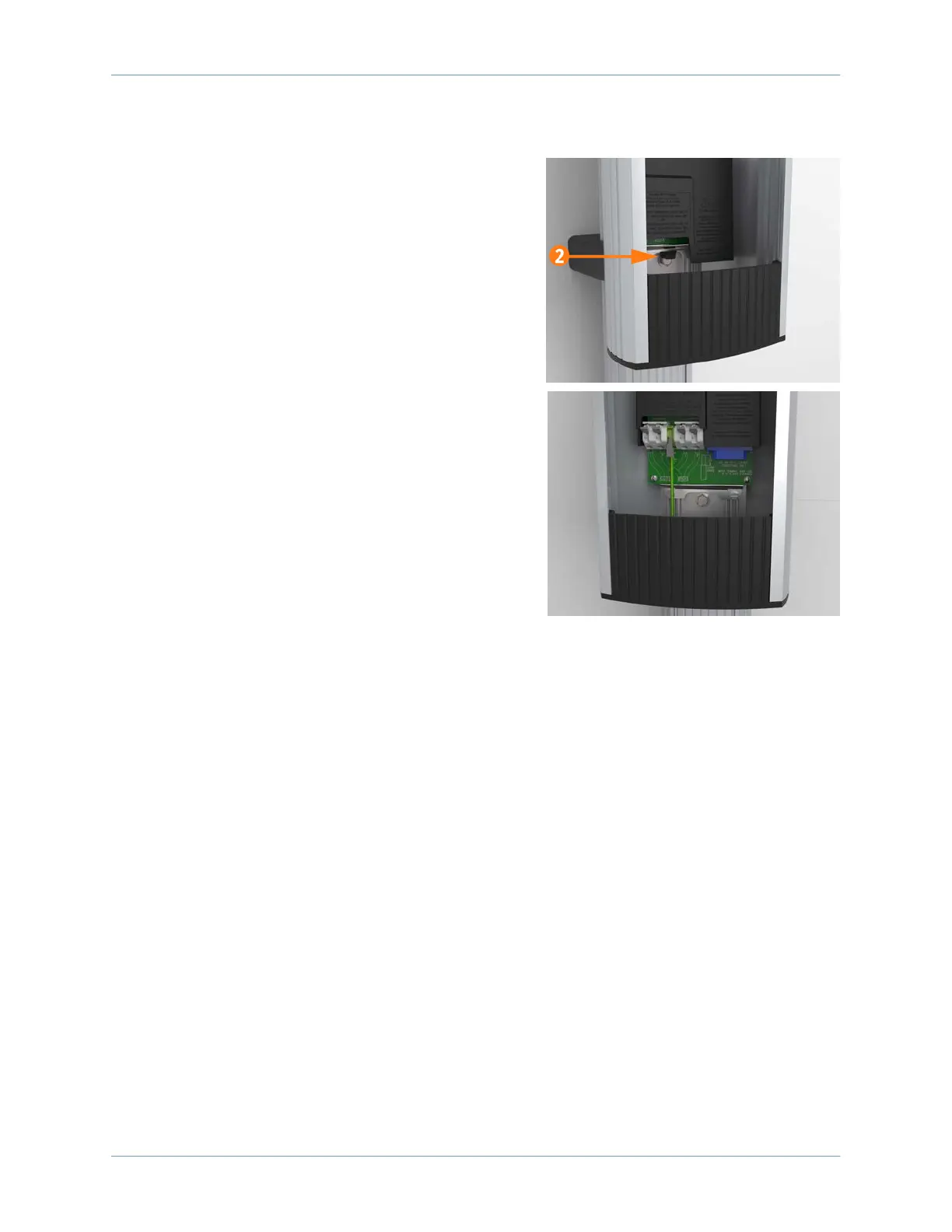

Wiring for Dual or Single Port Stations
1. Strip wires 13 mm (1/2 in).
2. Push the black tab on the terminal block to release the
terminal block cover.
3. Slide the cover up until it locks into the raised
position.
4. Lift all applicable levers on the terminal block.
5. Insert the ground wire into the center connector
(GND).
6. Push the center lever down until it clicks into its fully
closed position.
To Next Page
