Install a Pedestal Mount CT4000
5

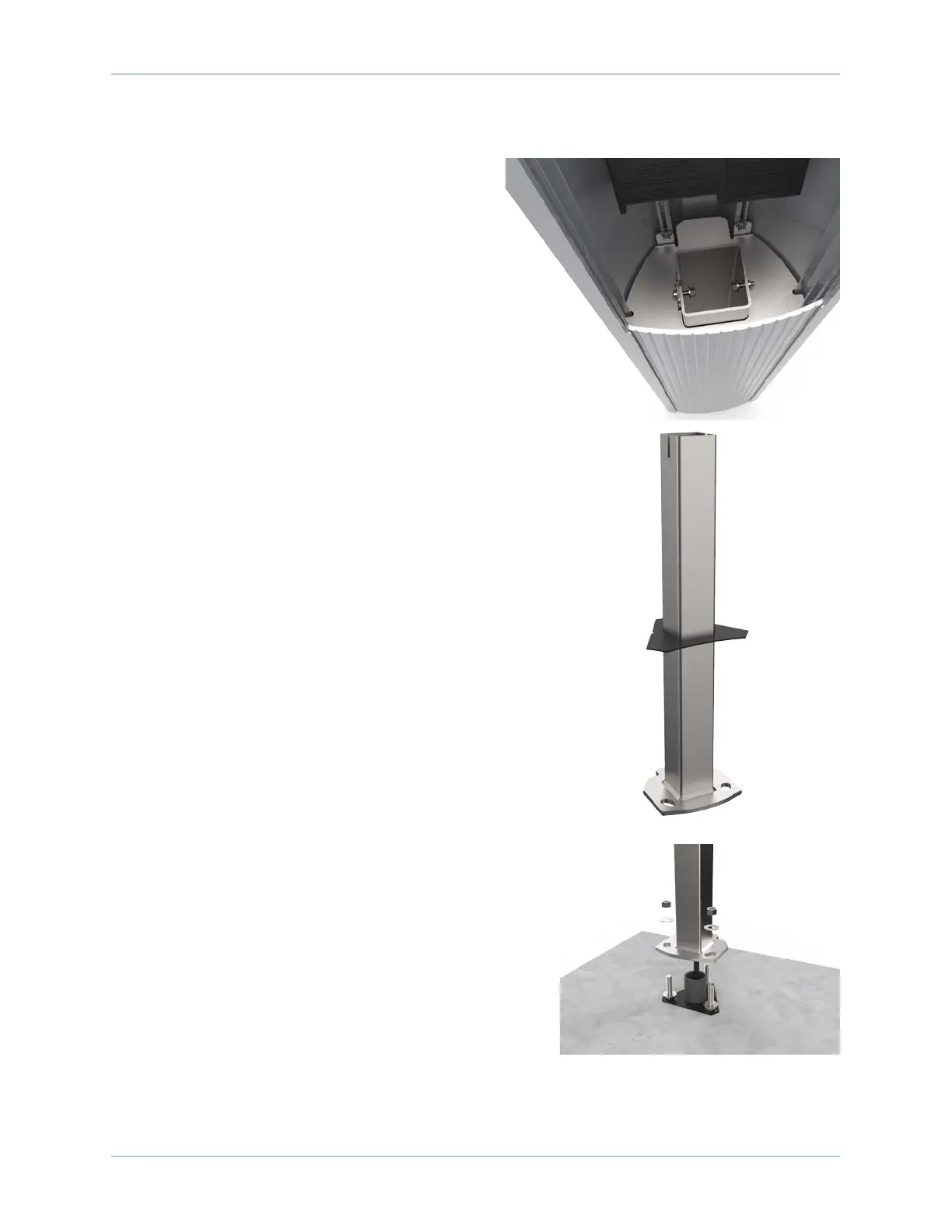

Prepare the Pedestal for Mounting
1. Using a 10 mm (3/8 in) socket wrench, loosen
(but do not remove) the two screws holding the
pedestal inside the housing.
2. Remove and discard the cardboard shipping
spacer.
3. Remove the pedestal from the housing by
pulling it out from the bottom of the housing.
Keep the rubber spacer in place over the
pedestal.
Mount the Pedestal
1. Pull wires through the conduit.
2. Place the pedestal over the conduit, ensuring the
curved front edge of the pedestal base is located
where you want the front of the charging station.
Note: If the conduit is not coming up through the
center of the pedestal, install the conduit in the
side of the housing after mounting the pedestal.
3. Adjust the lower nuts as necessary to ensure the
pedestal is level.
To Next Page
