ECO 2 Ultrasound Diagnostic System
Page 109 / 189

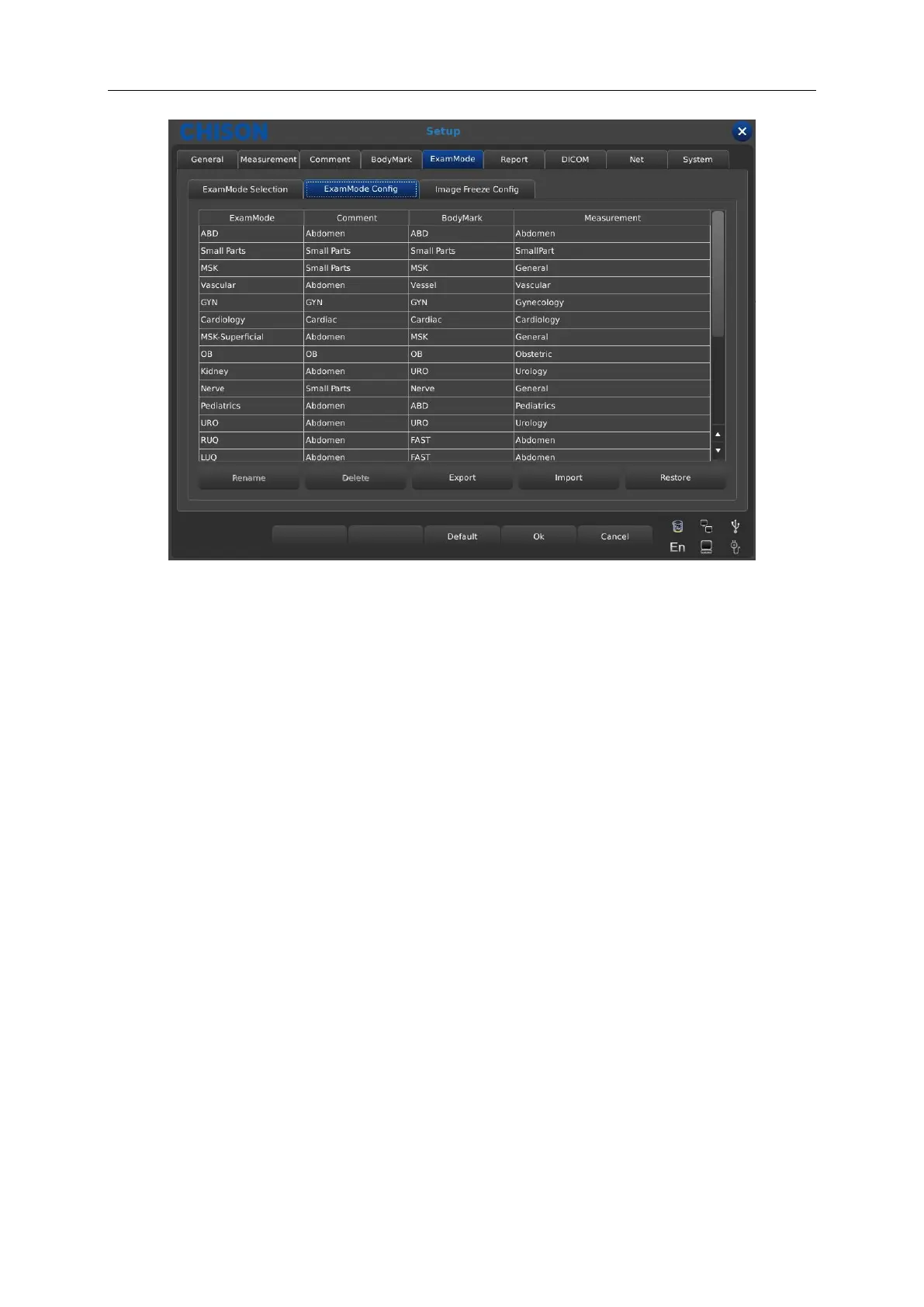

ExamMode: show all existed Exam modes in system.
Comment: double press [ENTER] to activate widget box, can choose existed annotation status
name. After setting, the default of the Exam mode is user-selected.
BodyMark: same as Comment, select user-needed default body marks.
Measurement: same as Comment, select user-needed default measurement menu.
Rename: rename selected Exam mode.
Delete: delete selected Exam mode.
Export: export all built-in Exam modes into USB flash disk.
Import: import all built-in Exam modes into USB flash disk.
Restore: restore all Exam mode as factory setting.
7.5.4 Image Freeze Config
Operator can be set to quickly enter the following statuses when the image is frozen, including
cine, body mark, comment, trace, distance and calc.
