ECO 2 Ultrasound Diagnostic System
Page 56 / 189
2. Press [Change] button to select cursor type: arrow or cross. And change the size of the cursor.
3. Adjust the position of probe. Rotate [MENU] or [ANGLE] knob can adjust the probe direction.
4. Press [ENTER] to confirm when adjustment was finished.
5. Press [EXIT] to exit the arrow settings.
6. Press [DEL] to clear the arrows has inputted.
5.13 Image and Cine Disposition
5.13.1 The Principle of Cine Storage
In real image status, the image can be stored in the movie memory in chronological order,
maximum frames can be set. The maximum number of frames of the film storage can be set,
please refer to pre-set chapter.
If the movie memory is full, the recent frame saved into memory, the previous frame removed from
memory.

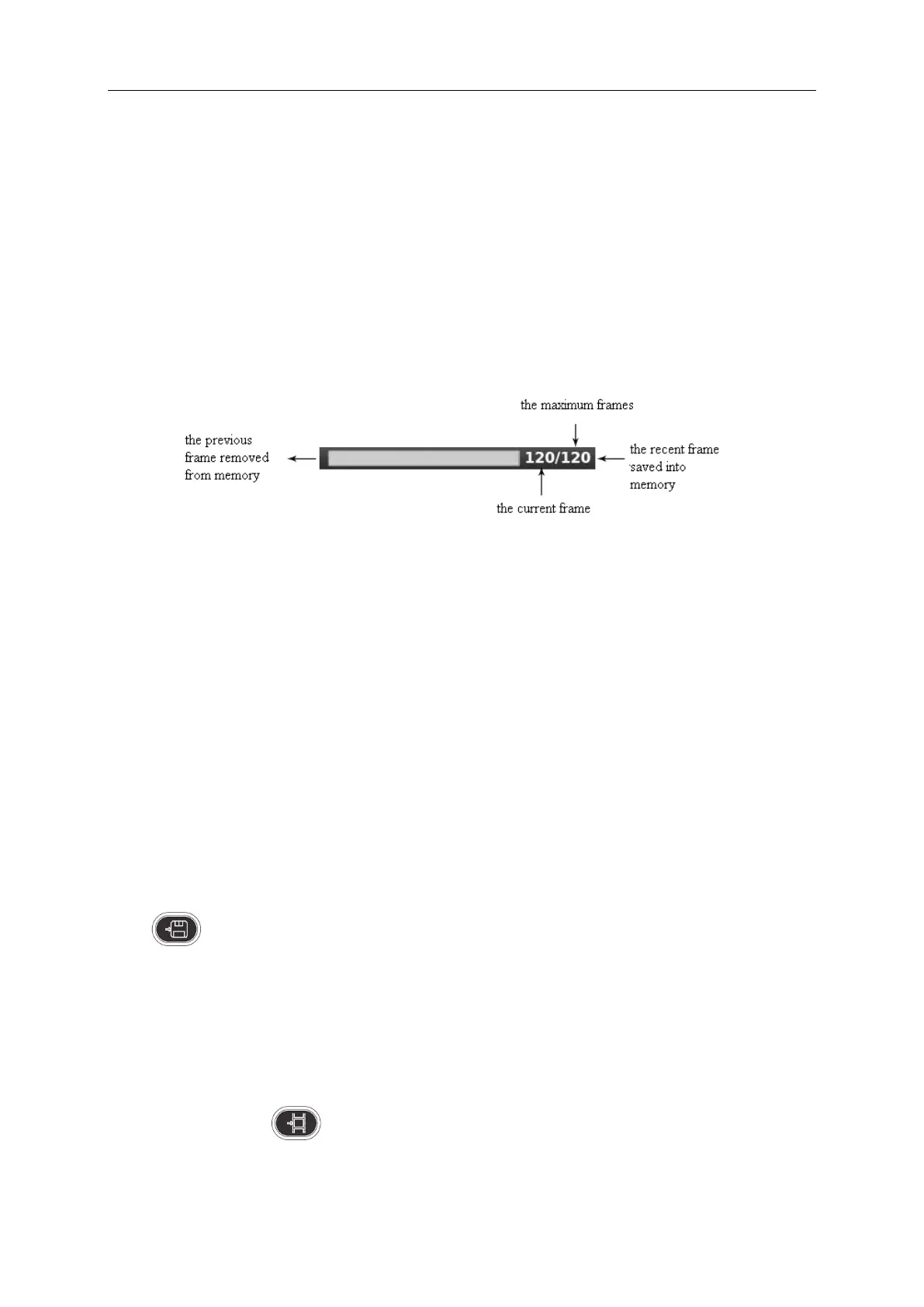

Cine loop indicate diagram
5.13.2 Manual Loop
Press [FREEZE] to freeze image, pop cine playback bar, at this time, move cursor to play by hand;
Trackball rolling to the right, the loop play with ascending order side by side. Or press [Next/Pre]
to play.
5.13.3 Automatic Loop
After freezing image, press [Play/Pause] to play, press it again to stop.
Press [ENTER] to choose the area of automatic playback area needed.
5.13.4 Save and Recall Image
Press to save current image, the image will be displayed below the screen;
If you need to recall images that have been stored, move cursor to needed image, press [ENTER]
to recall it; or you can recall archived patient’s information to recall image, please refer to archive
chapter.
5.13.5 Save and Recall Cine
In freeze status, press to save cine, then it will be displayed below the screen, move cursor
to needed cine, press [ENTER] to recall the cine.
