Overview of Screens Chore-Tronics® 2 Control
26
MT1843B
and the control is connected to a remote light dimmer, then the Sunset feature will
not function.
If it is desired to have the light clock raise the lights from the Min% level to the
Max% level several times per day (spiking), then have the lights turn completely off
at the end of the day, then the Output going to the light dimmer will need to be wired
to an Output relay that is assigned to one of the spare clocks (see spare clocks screen
description). The ON At and OFF At time of the Spare Clock event will have to be
set so that the Spare Clock relay is on during all of the events entered in the light
clock. At the end of the day the Spare Clock will reach the OFF At time and the relay
will turn off, turning the lights in the house completely off.
The graphic at the bottom of the screen shows the current time of day (dashed line
with an arrow at the top), and the time of day when the light clock relays will be on
(shaded area), or if the dimmer control option is used when the lights will be at the
maximum light level (also shaded area). The non-shaded area represents when the
light clock relays will be off or when the lights will be at the minimum light level (if
light dimmer is used).
(Clocks Screen) Light Clock Curve Tab
To access the Clocks "Light Clock Curve" Screen press the Tab Key under "L.
Curve".
1. Bend Point-This is the current displayed bend point of the Light Clock Curve.
Only one bend point can be shown at a time. To scroll from one bend point to
another use the Index Keys .
2. Active From Day-The is the day that the ON At and OFF At times shown in the
current bend point will become the active light clock settings.
3. Minimum and Maximum Light Dimmer setting-See the current light clock
screen for description.
4. The graphic at the bottom of the screen shows the current time of day (dashed
line with an arrow at the top), and the time of day when the light clock relays
will be on (shaded area), or if the dimmer control option is used when the lights
will be at the maximum light level (also shaded area). The non-shaded area rep-
resents when the light clock relays will be off or when the lights will be at the
minimum light level (if light dimmer is used).
MT1842-011 10/04

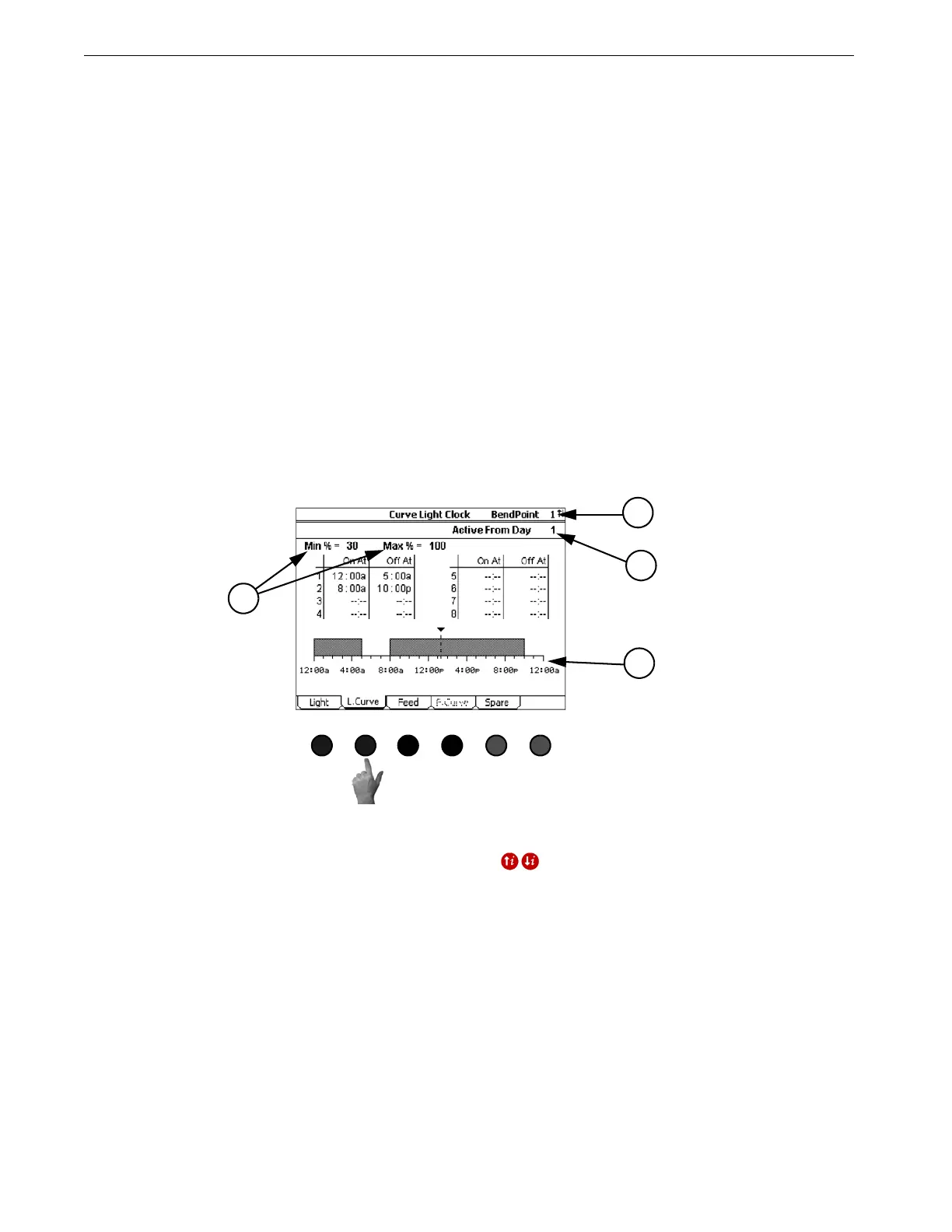

Figure 23. Clocks Screen: Light Clock Curve Tab
1
2
3
4
