(Clocks Screen) Feed Clock Tab
To access the Clocks "Feed Clock" Screen, press the Tab Key under "Feed". The
Feed Clock can be set up in one of two different formats. When set up in the OFF At
format, the Feed Clock will look identical to the with a maximum of 8 on and off
events and the Feed Clock Curve screen will be available (See Figure 24 below)
When the Feed Clock is set up in the Runtime format (Figure 25 below), there will
now be a maximum of 24 events with each event having a Start time and a Run For
time. When the Feed Clock is in the Runtime format, the Feed Clock Curve will not
be available. The current Feed Clock format can be changed in the Setup-
Control:Other screen (Screen 14-Others tab). If there are no Output relays assigned
to the Feed Clock, the statement "Not Set Up" will appear in the Feed Clock Screen.
The graphic at the bottom of the screen shows the current time of day (dashed line
with an arrow at the top), and the time of day when the Feed Clock relays will be on
(shaded area). The non-shaded area represents when the light clock relays will be off.
MT1842-013 10/04

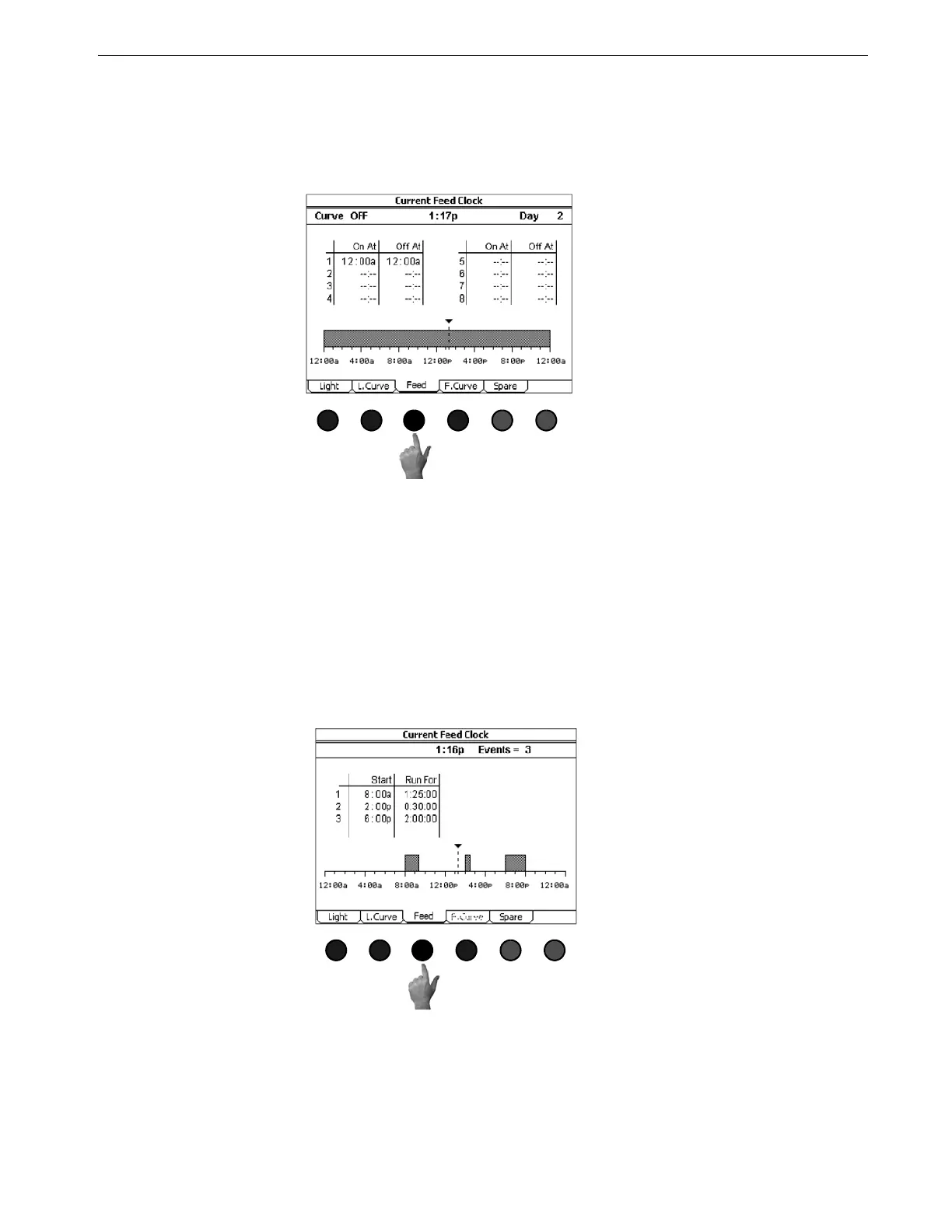

Figure 24. Clocks Screen: Feed Clock Tab
Figure 25. Clocks Screen: Runtime Format
MT1842-012 10/04
