Overview of Screens Chore-Tronics® 2 Control
28
MT1843B
(Clocks Screen) Feed Clock Curve Tab
To access the Feed Clock Curve Screen, push the Tab Key under "F.Curve".
1. Bend Point-This is the current displayed bend point of the Feed Clock Curve.
Only one bend point can be shown at a time. To scroll from one bend point to
another use the Index Keys .
2. Active From Day-The is the day that the ON At and OFF At times shown in the
current bend will become the active Feed Clock settings.
3. The graphic at the bottom of the screen shows the current time of day (dashed
line with an arrow at the top), and the time of day when the Feed Clock relays
will be on (shaded area). The non-shaded area represents when the light clock
relays will be off.
(Clocks Screen) Spare Clock Tab
To access the Clocks "Spare Clock" Screen, press the Tab Key under "Spare".
The Spare Clocks have 8 on and off events and can not be curved. A maximum of 8
Spare Clocks can be used. To scroll from one Spare Clock to another use the Index
Keys . Each Spare Clock can be given a specific name to identify the clock
with a particular use. The Spare Clock(s) name is entered in the Setup-
General:Outputs screen (Screen 13-Outputs tab).
MT1842-014 10/04
1
2
3

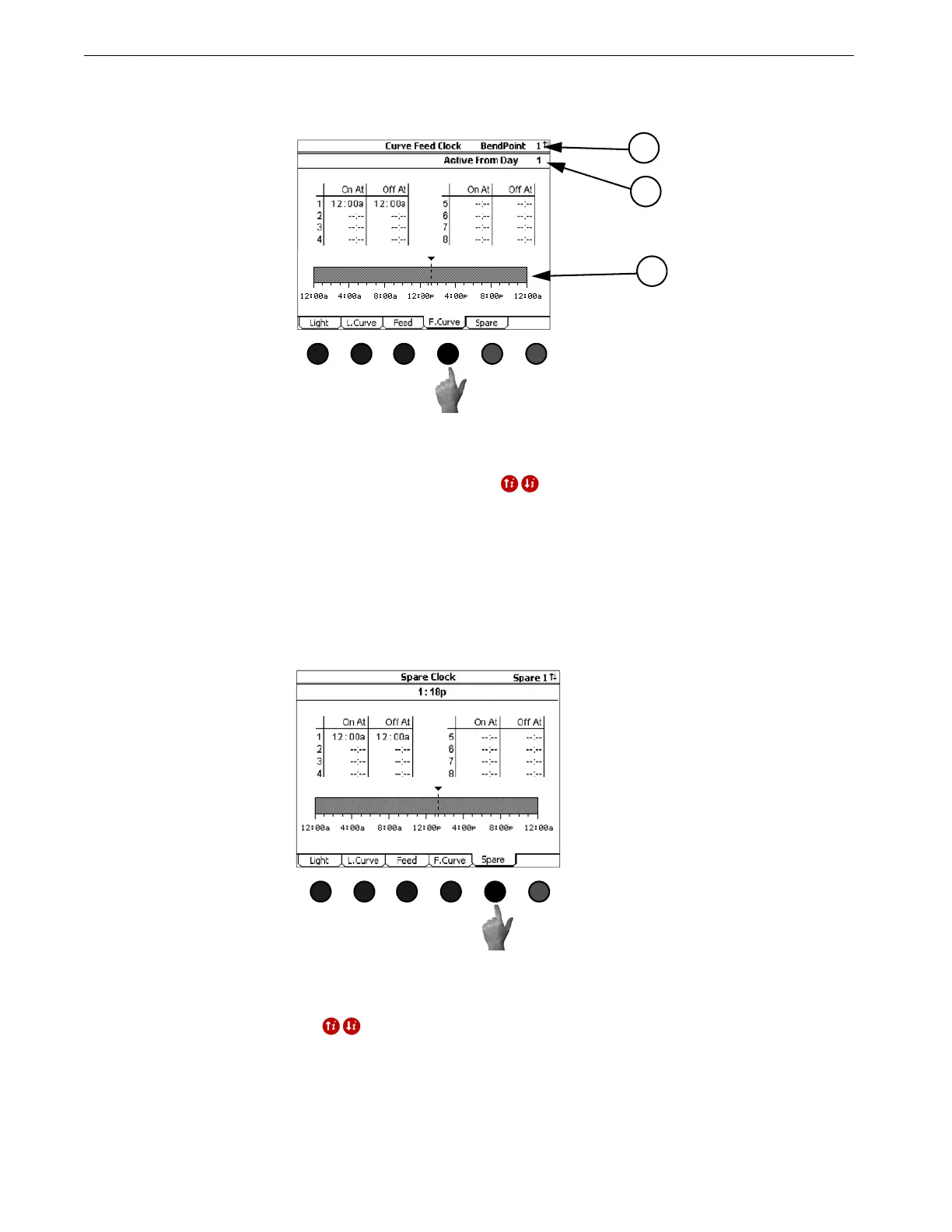

Figure 26. Clocks Screen: Feed Clock Curve Tab
MT1842-015 10/04
Figure 27. Clocks Screen: Spare Clock Tab
To Next Page
