Tab Keys
There are six Tab Keys across the bottom of the display. The Tab Keys allow access
to different screens within a given Subject Key. The name of each screen will appear
at the bottom of the display above the Tab Key. To select a screen, press the Tab Key
that is directly below the name of the desired screen. In Figure 5 below, the Tab Key
that is under "Equip. For" has been pressed, accessing the "Equip. For" screen.
Index Keys
The Index keys are used to scroll through the Feed Clock Curve and the Light Clock
Curve bend points and to scroll through certain lists such as heat zone runtimes in the
History-Environment screen. An arrow(s) will appear whenever the Index Keys can
be used to quickly scroll through lists or bend points. In Figure 6 below, there is an
example of using the Index Keys to scroll from HtZone 1 to HtZone 2.]
MT1842-046 10/04
Item Description
1Tab Key

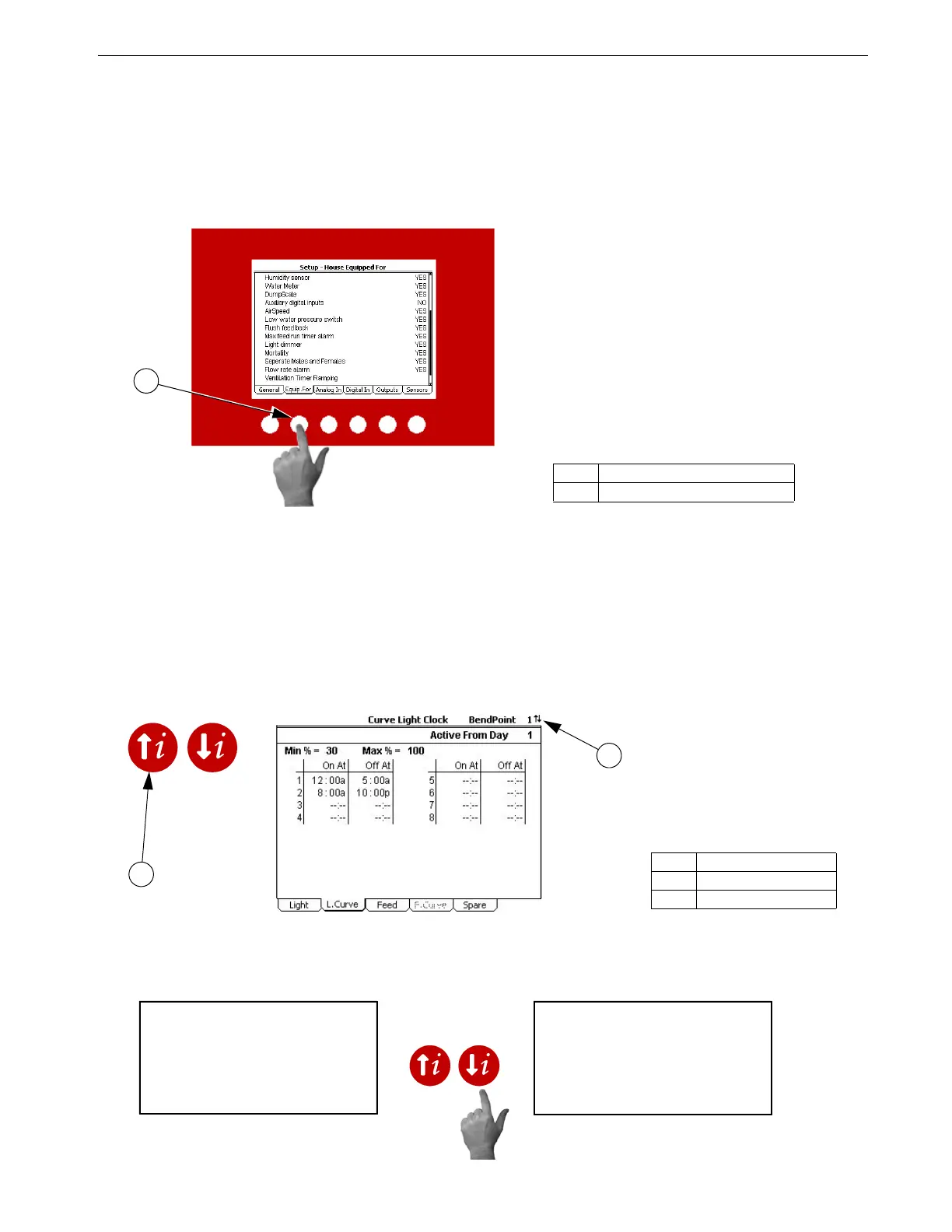

Figure 5. Tab Keys
1
MT1842-047 10/04
Item Description
1Index Keys
2 Index Key Arrows
1
2
MT1842-048 10/04
Heating History HtZone 1
----------------------------------------
DAY Ht Zone 1
7 4:13
6 4:13
5 4:13
4 4:13
3 4:13
2 4:13
1 4:13
00 4:13
Heating History HtZone 2
----------------------------------------
DAY Ht Zone 1
7 4:13
6 4:13
5 4:13
4 4:13
3 4:13
2 4:13
1 4:13
00 4:13
Figure 6. Index Keys
Example: To change from HtZone 1 to HtZone 2, push the Down Index Key.
