Operation Overview

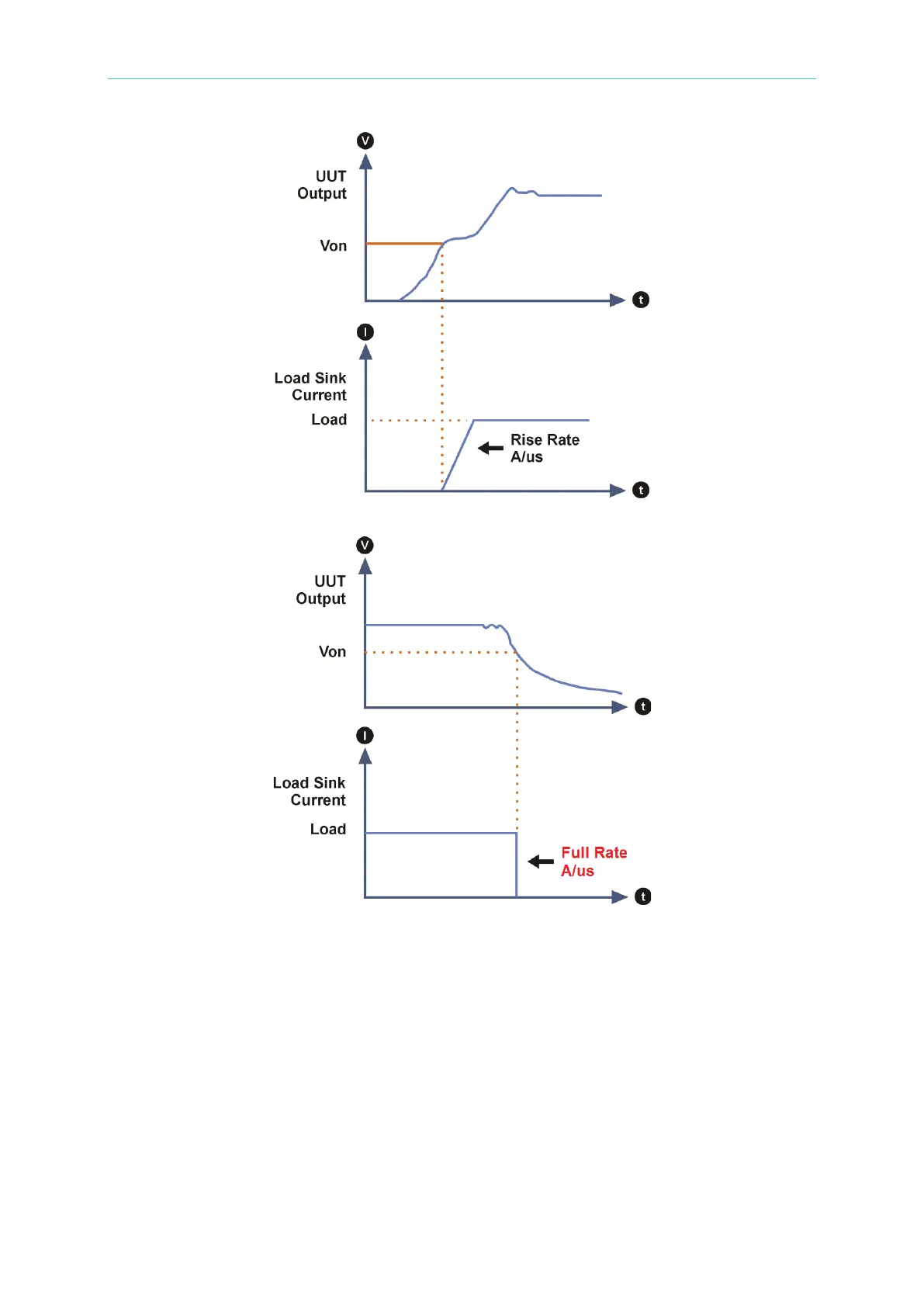

Figure 3-17 Start Sinking Current (Von Non-Latch)
Figure 3-18 Stop Sinking Current (Von Non-Latch)
In the battery discharge timing measuring mode, you may set the conducting voltage Voff to
avoid repeatedly start sinking and stop sinking current when the UUT output voltage is
repeatedly up and down near the Von voltage.
When you set the conducting voltage Voff, the Load will start sinking current when the load is
ON and the UUT output voltage reaches the Von voltage, and stop sinking current when the
UUT output voltage is below the Voff voltage. Then, the load is OFF. It will not sink current
when the UUT output voltage reaches the Von voltage again, until you turn it on.
The conducting voltage Voff is only available in Timing mode, and to avoid the logic error, the
Voff should be less than or equal to Von.
