3.2 Front Panel Description
The Mainframe front panel includes a 2 characters 7-segment LED display, and keypads.
The front panels of Mainframe 63600-5, 63601-5, 63600-2, 63600-1 are shown in Figure 3-1,
Figure 3-2, Figure 3-3 and Figure 3-4.

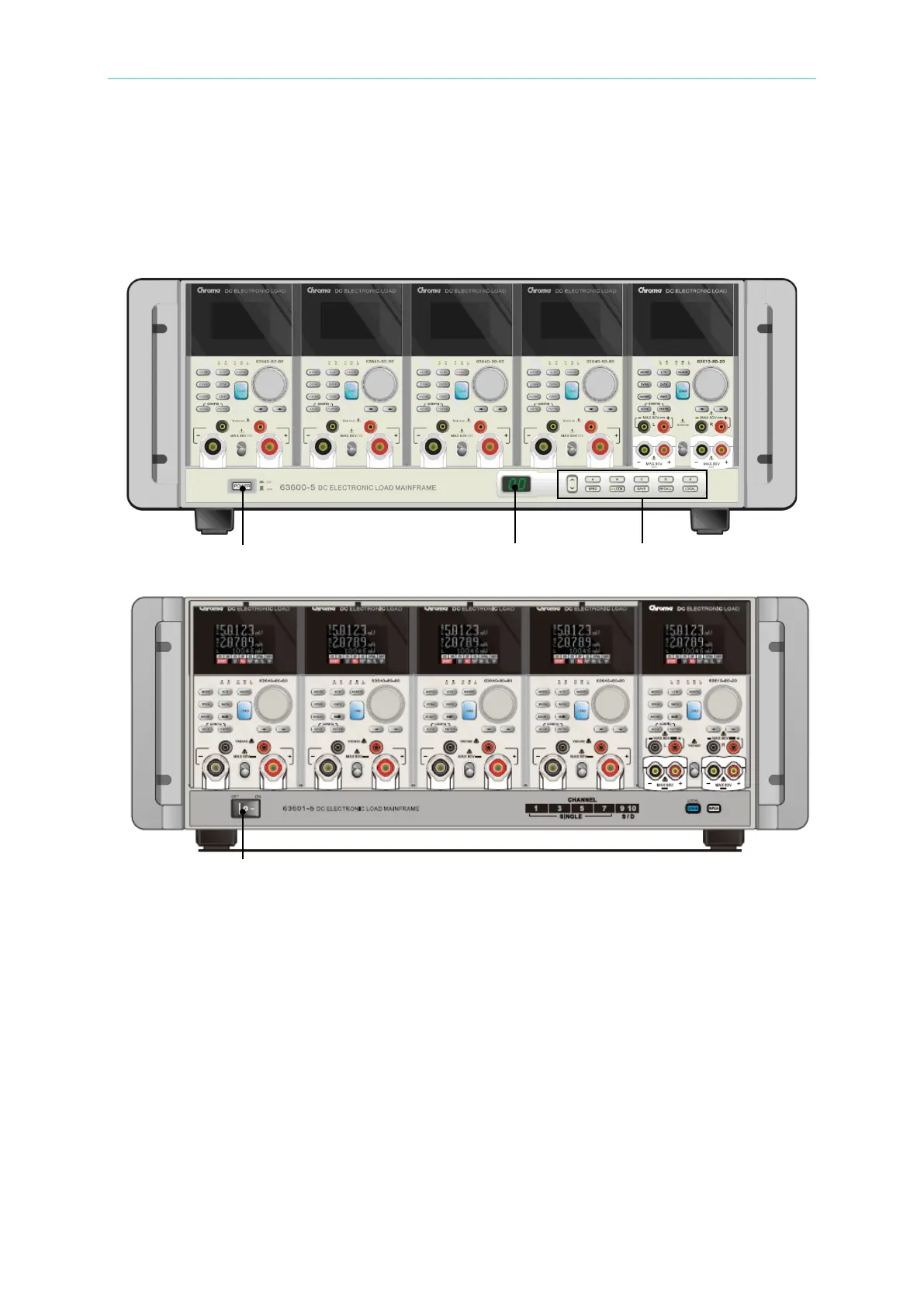

Figure 3-1 Front Panel of 63600-5
Figure 3-2 Front Panel of 63601-5
Power key
LED Display
Keypads
Power Key
