17
Update
Quick S
t
art

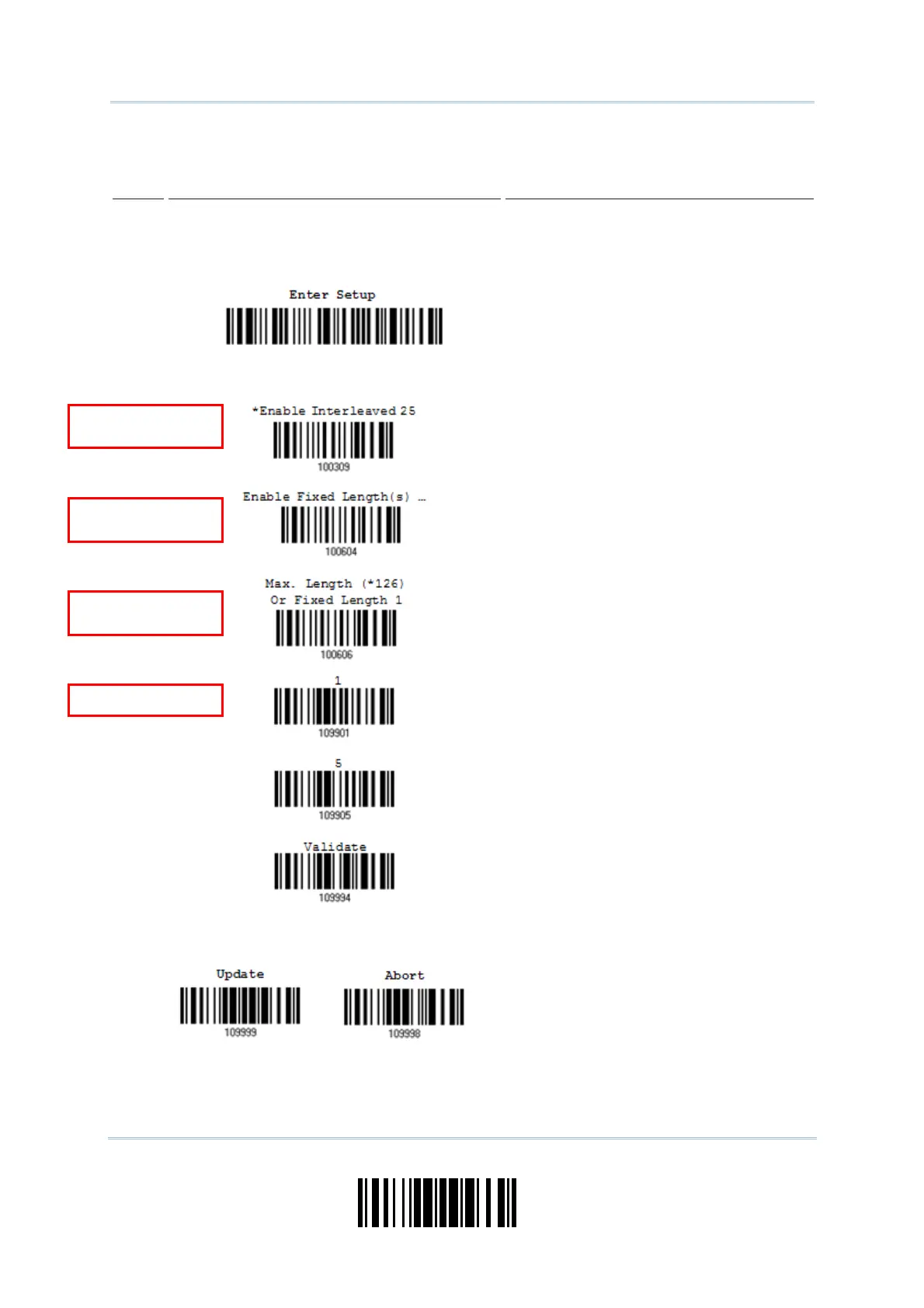

The example below shows how to set numeric parameters:
Steps
Action User Feedback if Successful
1 Power on the scanner...
T
he scanner will respond with a long beep
(high tone)
and its LED indicator will
become solid red and go off quickly.
2 Enter the Configuration Mode…
T
he scanner will respond with six beeps
(high-low tone repeats three times), and
its LED indicator will become flashing red.
Read a Setup barcode...
For example,
T
he scanner will respond with two beeps
(low-high tone) if reading a normal setup
barcode.
3
T
he scanner will respond with one short
beep if reading a special setup barcode
such as “Max. Length”, indicating the
setup requires reading more barcodes.
Read the “Decimal Value” barcode(s).
Refer to Appendix IV “Decimal
System”
T
he scanner will respond with two beeps
(low-high tone) when the input values are
validated.
4 Exit the Configuration Mode…
OR
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner.
N
ormal setup
barcode
N
ormal setup
barcode
Special setup
barcode
Decimal barcodes

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the CipherLab 1564 and is the answer not in the manual?

CipherLab 1564 Specifications

General IconGeneral
TypeHandheld bar code reader
Wavelength625 nm
Sensor typeCCD
Read rate (max)60 reads/s
Tilt reading angle-60 - 60 °
Optical sensor resolution752 pixels
Linear (1D) barcodes supportedCodabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range90 m
Bluetooth version2.0+EDR
Operating frequency2400 MHz
Standard interfacesBluetooth
Connectivity technologyWired & Wireless
CertificationBSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product colorBlack
Housing materialThermoplastic urethane (TPU)
Protection featuresShock resistant
International Protection (IP) codeIP30
Battery life16 h
Input voltage5 V
Battery voltage3.7 V
Battery capacity800 mAh
Power consumption230 mA
Power source typeBattery, DC
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth153 mm
Width61 mm
Height93 mm
Weight185 g
