5-52
Cisco 7600 Series Router Installation Guide
OL-4503-26
Chapter 5 Removal and Replacement Procedures
Removing and Replacing the Power Supply

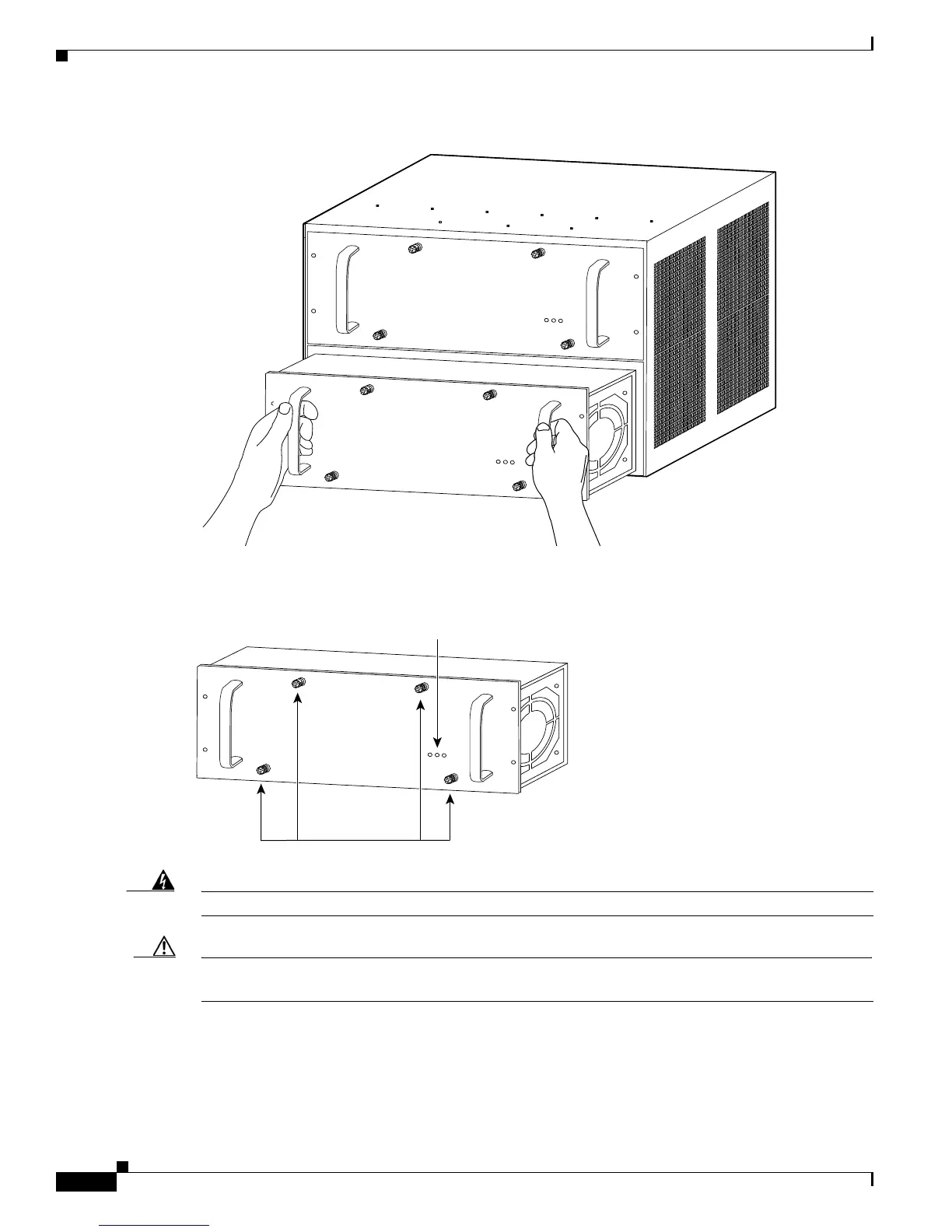

Figure 5-56 Handling the Power Supply
Step 3 Tighten the power supply captive installation screws (Figure 5-57).
Figure 5-57 Power Supply Captive Installation Screws
Warning
Power supply captive installation screws must be tight to ensure protective grounding continuity.
Caution In a system with dual power supplies, connect each power supply to a separate input line. In case of a
line failure, the second source will most likely still be available.
Step 4 Verify that all connections to the DC PEM are secure.
Step 5 Remove the tape from the circuit breaker switch handle, and restore power by moving the circuit breaker
switch handle to the On (|) position.
63901
INPUT OK
FAN OK
OUTPUT FAIL
INPUT OK
FAN OK
OUTPUT FAIL
INPUT OK
FAN OK
OUTPUT FAIL
63895
Captive installation screws
Status LEDs
