5-105
Cisco 7600 Series Router Installation Guide
OL-4503-26
Chapter 5 Removal and Replacement Procedures
Removing and Replacing the Power Supply

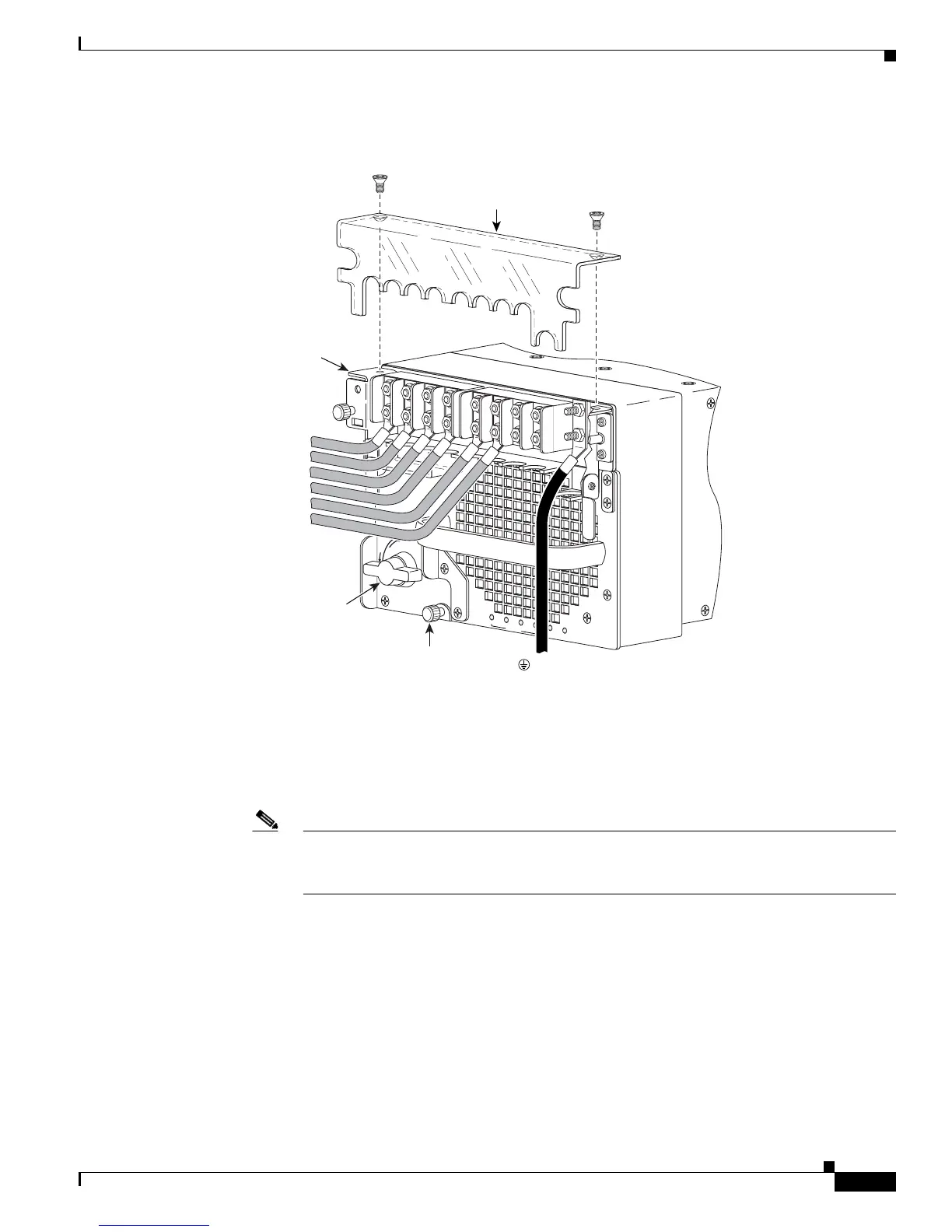

Figure 5-99 DC-Input Wire Connections for 4000-W DC-Input Power Supply for Left Side of Power
Bay
b. From the left side of the power supply, connect each of the DC-input wires to the terminal block
(
Figure 5-97 and Figure 5-99) in this order:
Negative (-)
Positive (+)
Note When you tighten the terminal nuts, make sure they are snug. Do not over tighten them.
Recommended torque strength is 20 inch-pounds. Over tightening the terminal nuts can
break the terminal block (Maximum torque: 36 inch-pounds).
c. Secure outer block cover.
Step 8 Wire for 6000 W (left side of power supply bay) as follows:
a. From the left side of the power supply, connect the ground wire to the ground (Figure 5-100).
191288
R
U
N
I
N
S
T
A
L
L
CISCO SYSTEMS, INC
1
2
3
4
INPUT OK
FAN
OK
OUTPUT
FAI L
Terminal
block cover
Power leads
attached to
terminal block
( ) Ground
Input power
module
( - ) Negative
(+) Positive
( - ) Negative
(+) Positive
( - ) Negative
(+) Positive
Captive
installation
screw
Power
switch
