Chapter 1 Configuring the Switch for Use with the ASA Services Module
Using the MSFC as a Directly Connected Router
You might need to bypass the ASASM in some network scenarios. Figure 1-2 shows an IPX host on the
same Ethernet segment as IP hosts. Because the ASASM in routed firewall mode only handles IP traffic
and drops other protocol traffic like IPX (transparent firewall mode can optionally allow non-IP traffic),
you might want to bypass the ASASM for IPX traffic. Make sure that you configure the MSFC with an
access list that allows only IPX traffic to pass on VLAN 201.

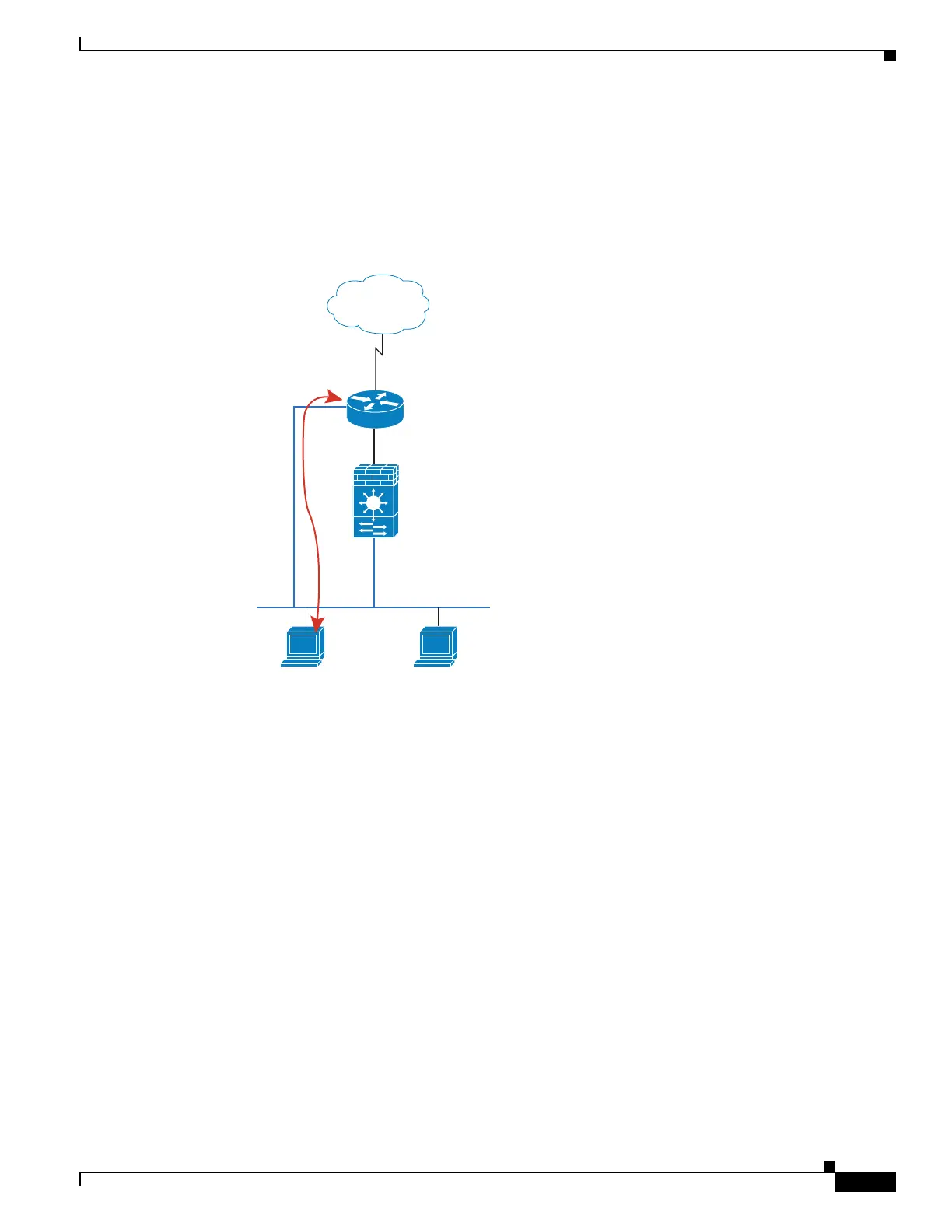

Figure 1-2 Multiple SVIs for IPX
ASA SM
MSFC
Inside
VLAN 200
VLAN 100
VLAN 201
VLAN 201
IPX Host IP Host
249953
Internet

Cisco ASA 5512-X Specifications

General

Firewall Throughput	1.2 Gbps
VPN Throughput	200 Mbps
Maximum VPN Peers	250
Integrated IPS	Yes
IPS Throughput	250 Mbps
RAM	4 GB
Power Supply	AC, 100-240V
Security Contexts	2 (Standard), 50 (with Security Contexts license)
Interfaces	6 x Gigabit Ethernet
Dimensions (H x W x D)	1.75 x 17.5 x 14.5 inches
Weight	16 lbs
