Chapter 1 Completing Interface Configuration (Routed Mode)
Completing Interface Configuration in Routed Mode

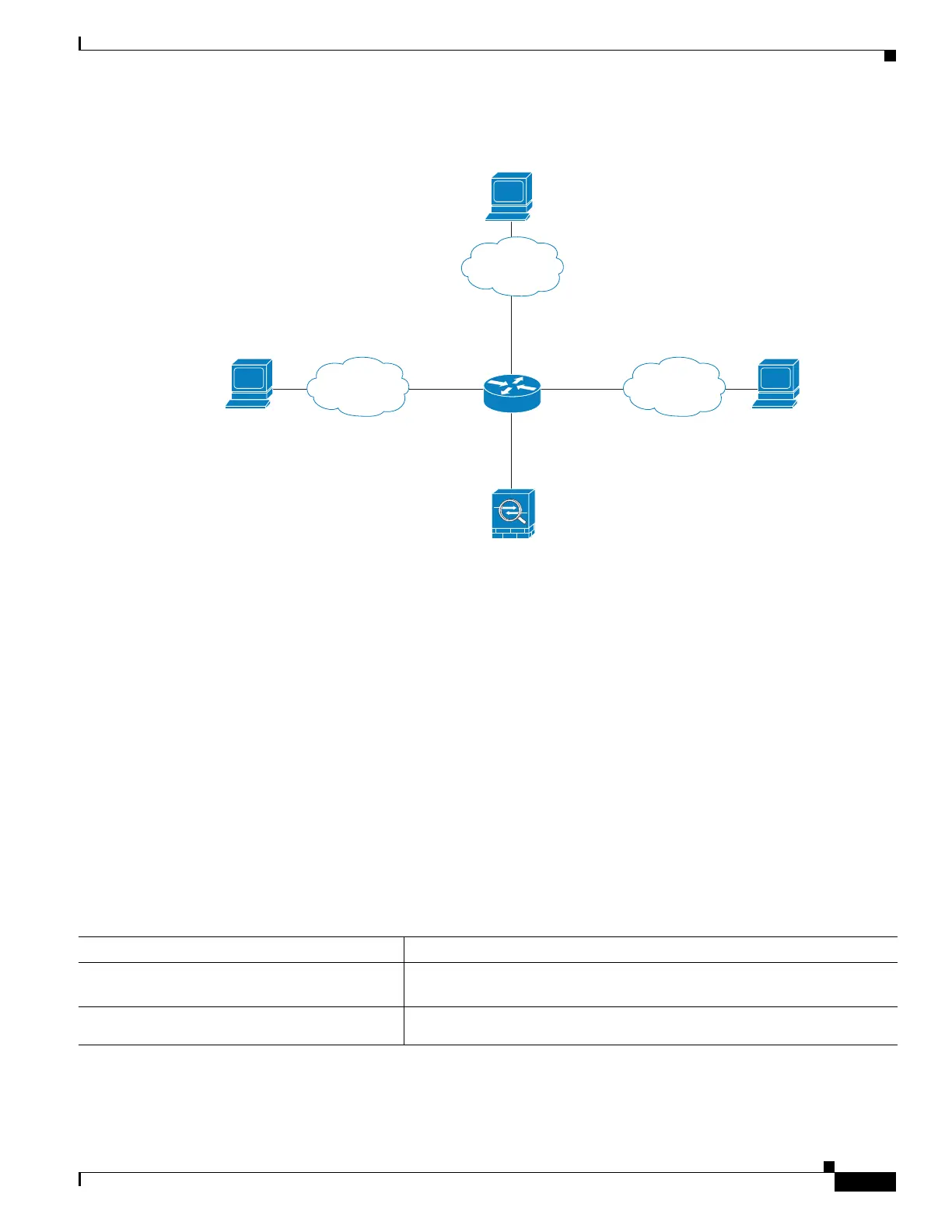

Figure 1-1 Communication Between Hosts on the Same Interface
The following sample configuration shows the Cisco IOS route-map commands used to enable policy
routing in the network shown in Figure 1-1:
route-map intra-inter3 permit 0
match ip address 103
set interface Vlan20
set ip next-hop 10.6.34.7
!
route-map intra-inter2 permit 20
match ip address 102
set interface Vlan20
set ip next-hop 10.6.34.7
!
route-map intra-inter1 permit 10
match ip address 101
set interface Vlan20
set ip next-hop 10.6.34.7
Detailed Steps
Vlan70
10.6.36.0
Vlan10
10.6.35.0
Vlan60
10.6.37.0
SVI, Vlan20
10.6.34.0
Host Host
Host
ASA
MSFC
IP cloud-2
IP cloud-3IP cloud-1
Command Purpose
same-security-traffic permit
inter-interface
Enables interfaces on the same security level so that they can communicate
with each other.
same-security-traffic permit
intra-interface
Enables communication between hosts connected to the same interface.

Cisco ASA 5512-X Specifications

General

Firewall Throughput	1.2 Gbps
VPN Throughput	200 Mbps
Maximum VPN Peers	250
Integrated IPS	Yes
IPS Throughput	250 Mbps
RAM	4 GB
Power Supply	AC, 100-240V
Security Contexts	2 (Standard), 50 (with Security Contexts license)
Interfaces	6 x Gigabit Ethernet
Dimensions (H x W x D)	1.75 x 17.5 x 14.5 inches
Weight	16 lbs
