Cisco Catalyst 4500 Series Installation Guide

3-15
Catalyst 4500 Series Switches Installation Guide
78-14409-08
Chapter 3 Installing the Switch in a Rack
Rack-Mounting the Switch
c. Secure the chassis using at least six (three per side) 12-24 x 3/4-inch screws
through the elongated holes in the L bracket and into the threaded holes in the
mounting post.
d. Use a tape measure and level to ensure that the chassis is installed straight and
level.

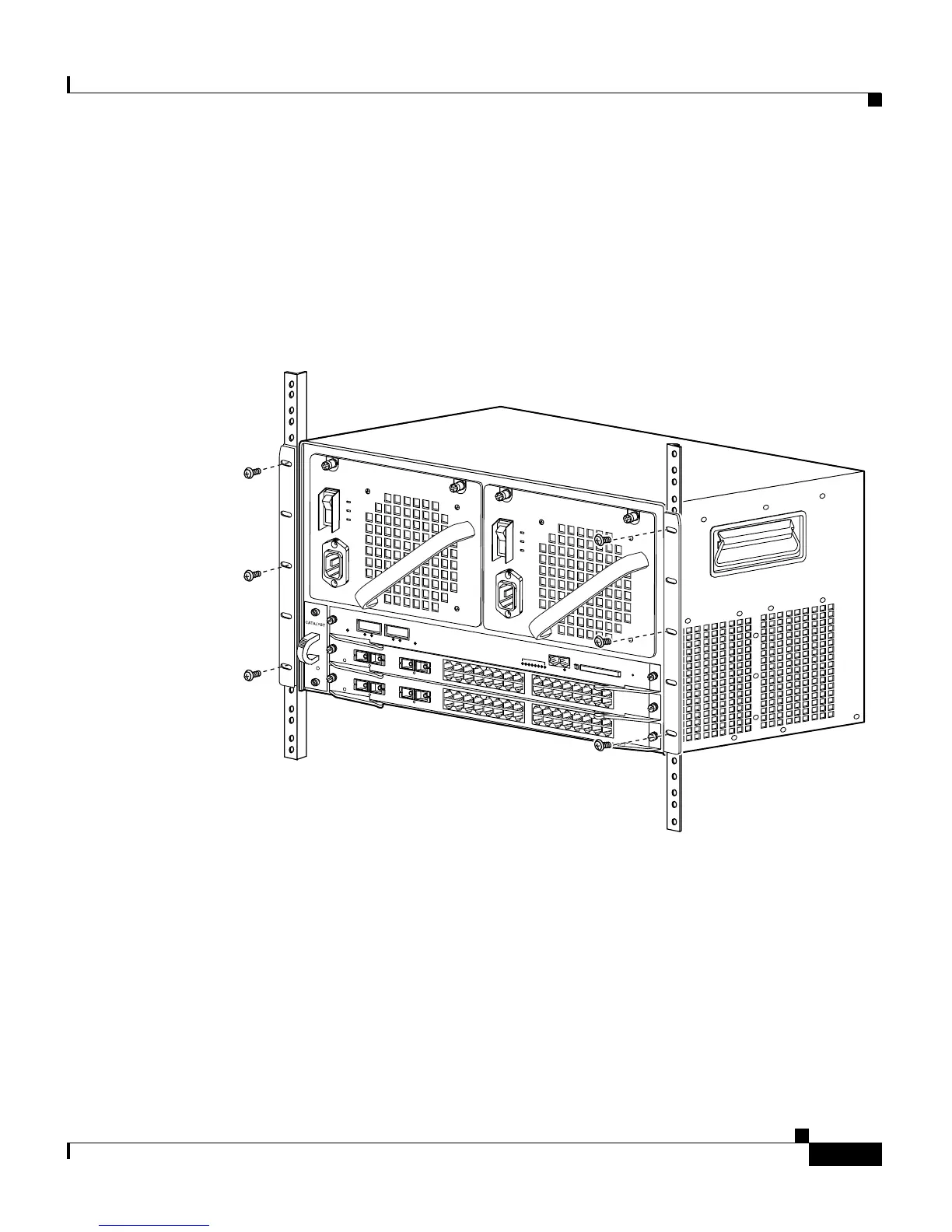

Figure 3-9 Installing a Catalyst 4503 Switch in the Rack
1
13
1
13
1
13
1
13
79186
4506
UPLINK 1
UPLINK 2
ACTIVE
LINE
ACTIVE
LINE
ACTIVE
RESET
UTILIZATION
STATUS
4503
WS-X4515 SUPERVISOR ENGINE IV
1%
100%
CONSOLE
LINK
EJECT
FLASH
10/100
MGT

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
