Chapter 4 Removing and Replacing FRUs
Removing and Replacing the Power Supply
Caution Use both hands to grasp a power supply.
Step 5 Grasp the power supply handle with one hand. Place your other hand underneath
to support the bottom of the power supply, as shown in
Figure 4-8.

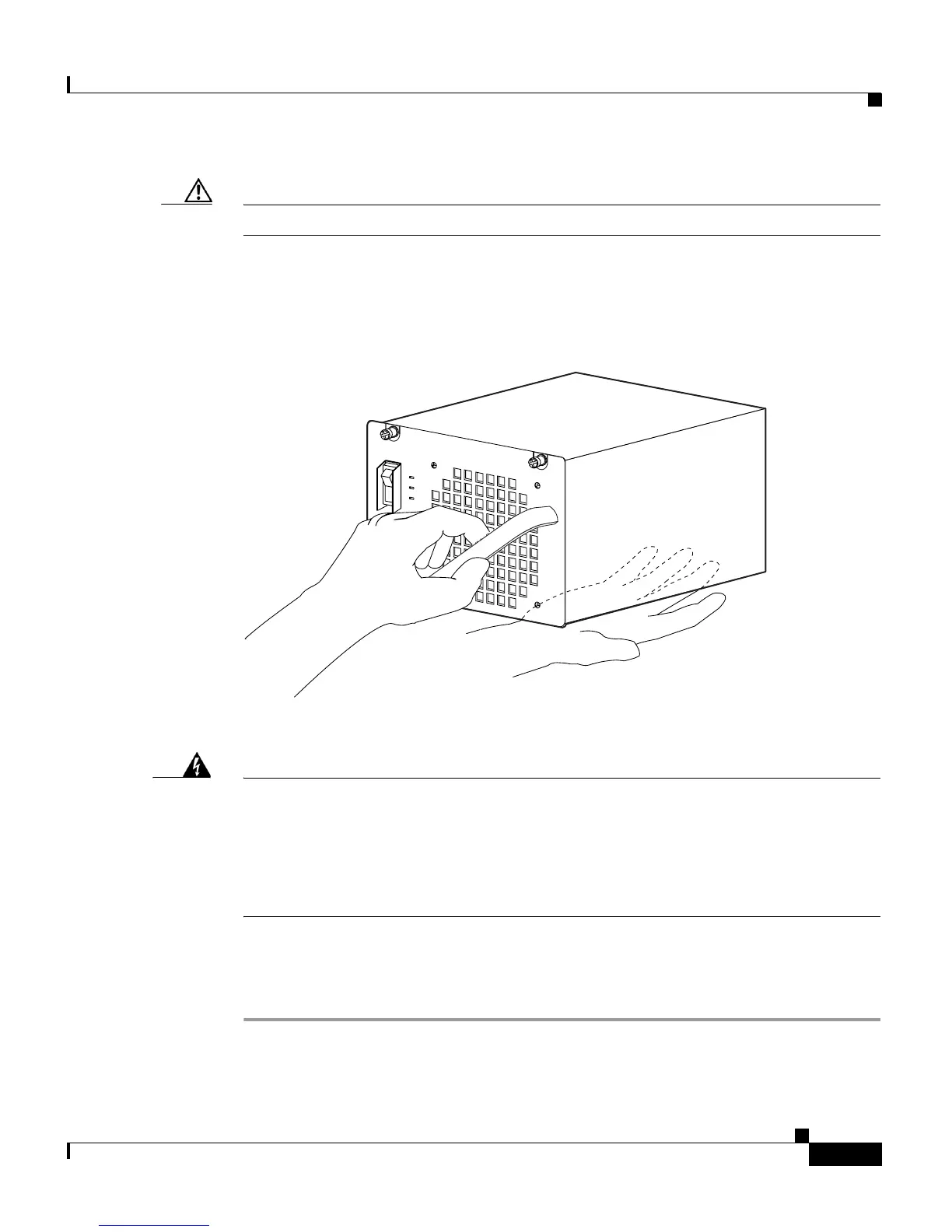

Figure 4-8 Handling an AC-Input Power Supply
Step 6 Pull the power supply out of the bay and set it aside.
Warning Blank faceplates and cover panels serve three important functions: they
prevent exposure to hazardous voltages and currents inside the chassis; they
contain electromagnetic interference (EMI) that might disrupt other equipment;
and they direct the flow of cooling air through the chassis. Do not operate the
system unless all cards, faceplates, front covers, and rear covers are in place.
Statement 1029
Step 7 If the power supply bay is to remain empty, install a blank power supply filler
plate over the opening. Secure the filler plate with the two mounting screws and
tighten them with a screwdriver.
79141

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
