Chapter 4 Removing and Replacing FRUs
Removing and Replacing the Power Supply
4-14
Catalyst 4500 Series Switches Installation Guide
78-14409-08
Step 6 Using a screwdriver, loosen and remove the captive screws on the power supply.
(See
Figure 4-15, which shows the single input power supply. The triple-input
power supply has captive screws in the same location.)

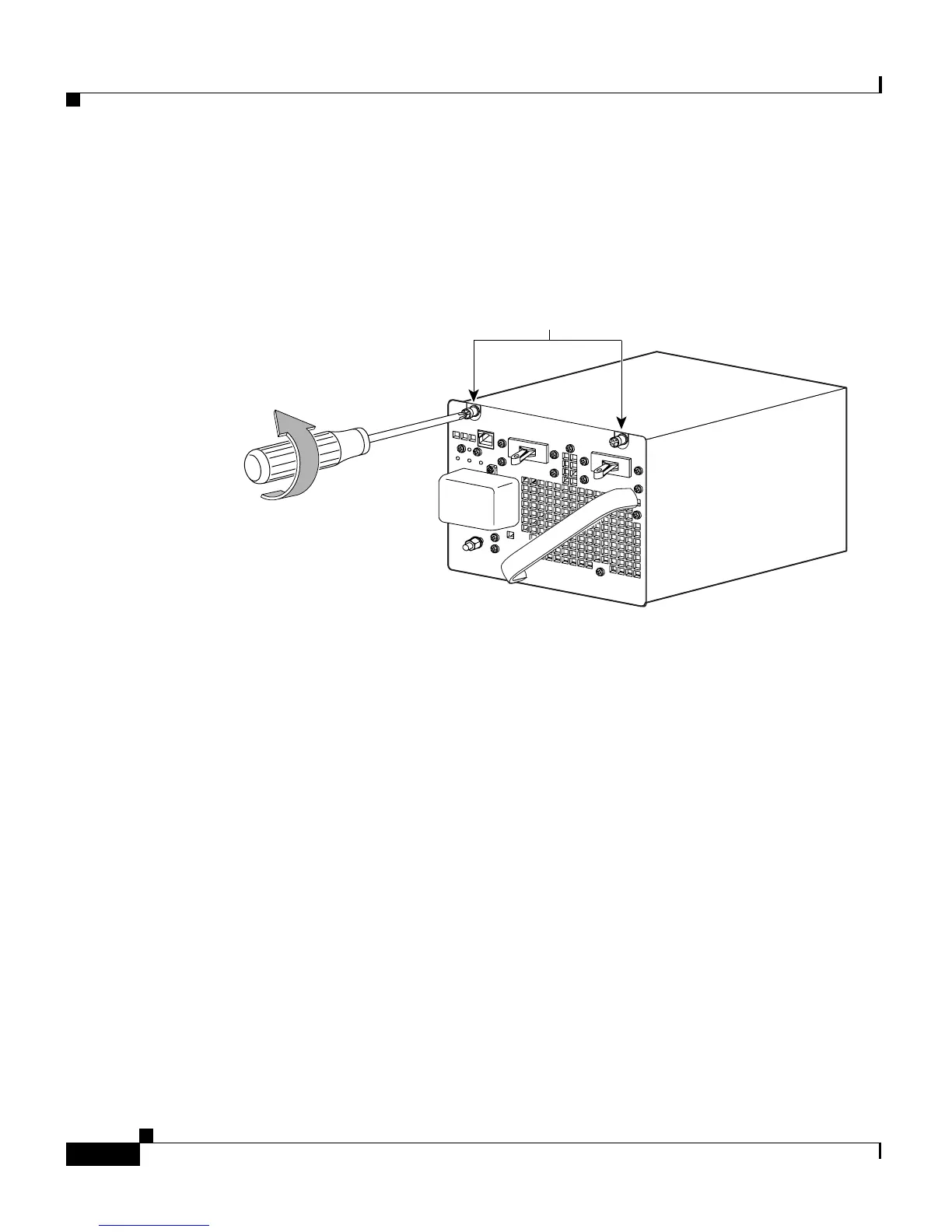

Figure 4-15 Loosening the Captive Screws
Step 7 Grasp the power supply handle with one hand. Place your other hand underneath
as you slowly pull the power supply out of the bay (see
Figure 4-16).
Captive screws
79162
