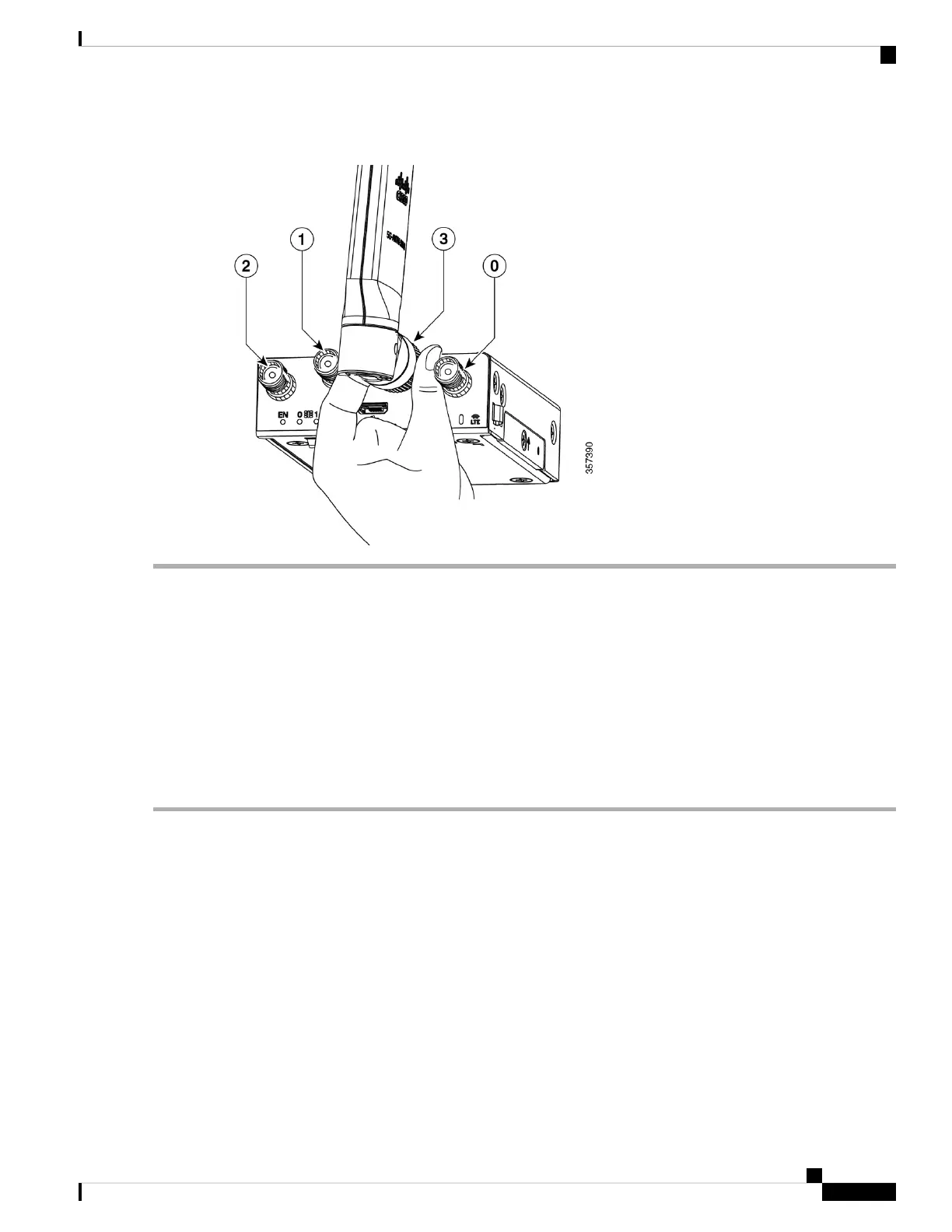

Figure 81: Attaching the Antennas
Step 1 Use your thumb and index finger to insert and tighten antenna 1 and antenna 3 in the middle antenna attachment slots as
indicated in the figure.
While installing the antennas, first install antenna 1 and antenna 3 (this instruction is for the two antenna
attachments present in the middle) and secure it completely. If you install antenna 2 and antenna 0 first (this
refers to the first and the last antenna attachments), there will be less space to insert your thumb and index
finger and therefore you may not be able to secure antenna 1 and 3.
Note
Step 2 Insert antenna 2 and antenna 0 in the first and last antenna attachment slots.
Step 3 After installing the antennas, adjust the antenna orientation by spacing out each of them equally until they are spread out.
This is important as it helps in getting higher RF performance.
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
111
Cisco Catalyst Pluggable Interface Module
Configuring a Pluggable Interface Module

Cisco Catalyst 8300 Series Specifications

General

Software	Cisco IOS XE
Interface Modules	Modular
WAN Ports	Varies based on module selection
LAN Ports	Varies based on module selection
Redundancy	Yes, with dual power supplies and modular components
Security	Integrated threat defense, encryption, and secure boot
Management	Cisco DNA Center, CLI, SNMP, REST APIs
Form Factor	Rack-mountable
Rack Height	1RU or 2RU
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Serial
Power Supply	Redundant power supply options available
Key Features	SD-WAN, advanced security
Product Family	Catalyst
Port Density	Varies based on module selection
Dimensions	Varies by model
Weight	Varies by model and module selection
