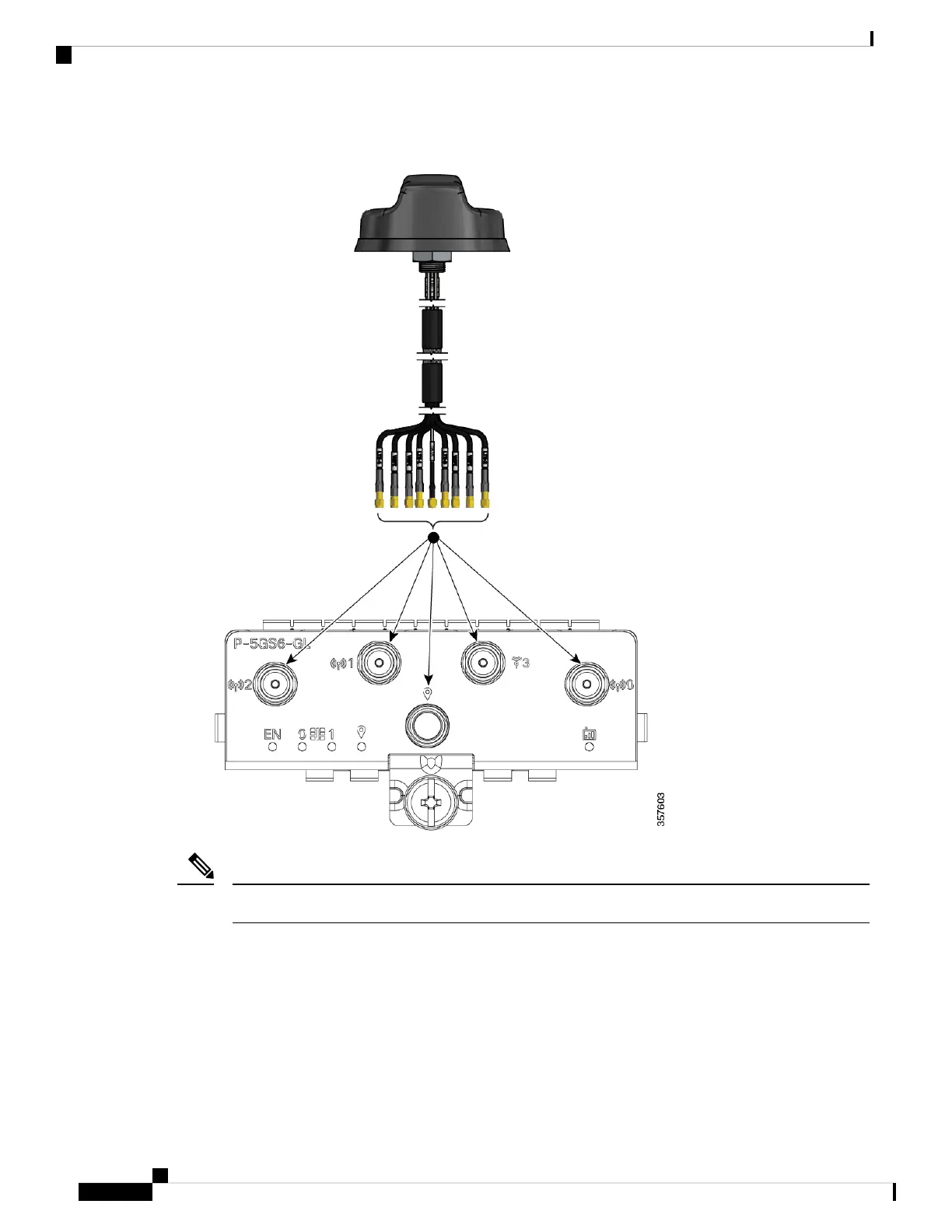

Figure 82: Attaching 5G NR Antenna (5G-ANTM-O4-B) to P-5GS6-GL PIM
5G NR Antenna (5G-ANTM-04-B) is supported on both P-LTEAP18-GL and P-5GS6-GL PIMs.
Note
1. Attach each SMA cable to the ports as indicated in the table mappings.
2. Ensure that you tighten and secure each SMA cable into the SMA connector on the PIM.
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
114
Cisco Catalyst Pluggable Interface Module
Attaching the Antennas
