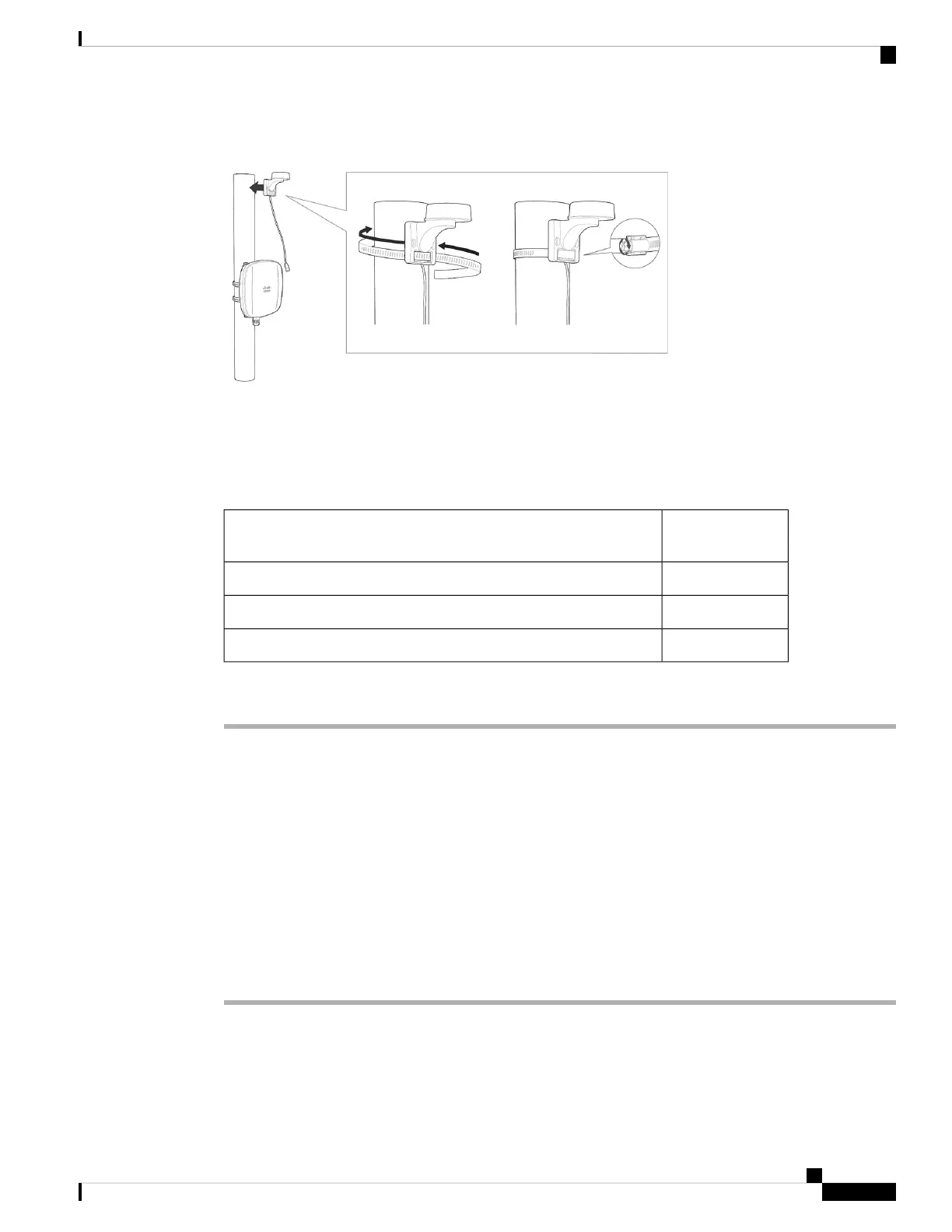

Figure 17: Pole mounting a GNSS antenna
Before you begin
Ensure that you have the following materials before beginning to mount the GNSS antenna to a pole:
Table 12: Material Required to Mount CW-ANT-GPS2-S-00 to a Pole
Supplied in the
Kit?
Materials Required
YesWall/pole mount bracket
YesOne stainless steel band clamp (adjustable 2 to 5 inch (51 to 127 mm)
NoA flathead screwdriver
Procedure
Step 1 Select a mounting location on the pole to mount the CW-ANT-GPS2-S-00 GNSS antenna bracket.
You can attach the antenna to a pole having a diameter of 2 to 3.9 inch (51 to 99.06 mm).
Step 2 Hold the bracket up against the pole and slide the band strap through the horizontal slot at the bottom of the
mounting bracket.
Step 3 Place the GNSS antenna in its final position.
Tighten the band clamp with the wrench or a screwdriver so that the bracket does not slide on the pole. Ensure
that the clamp is tight enough not to let the antenna move.
Step 4 Remove the protective cap and connect the antenna to the GNSS port.
The GNSS port is located at the top of the AP. See Connectors and Ports on the AP, on page 5.
Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide
37
Installing the Access Point
Pole Mounting the GNSS Antenna
