Installing the Cisco 1113 in a Rack
Figure 3-4 Positioning Chassis Rail Mount on Chassis
Step 4 See Figure 3-5. Align the holes (1) and then slide the rail until it locks into place (2).

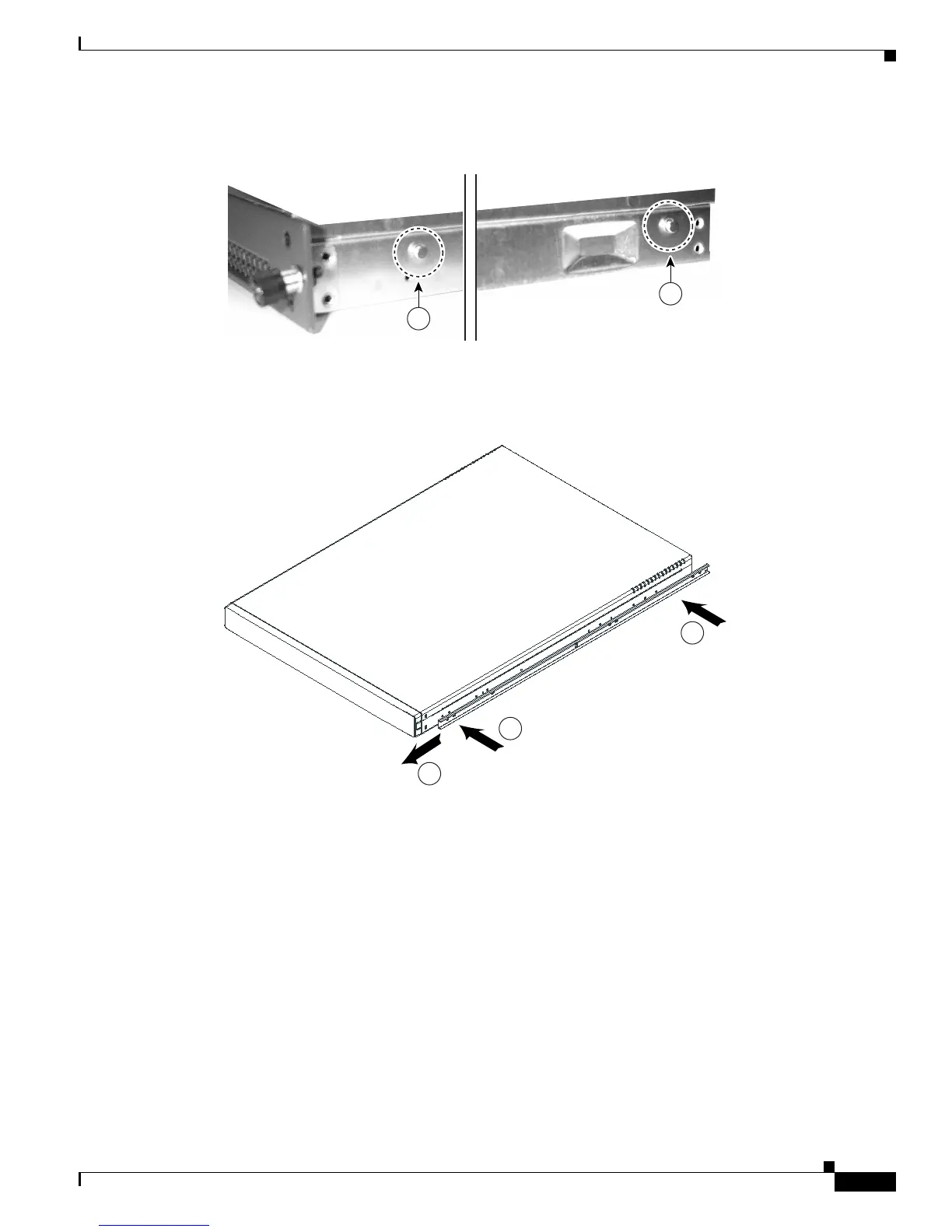

Figure 3-5 Attaching Chassis Rail Mount to Chassis
Figure 3-6 shows the chassis rail mount locked into place.
