4-82 D9865 Satellite Receiver Installation and Operation Guide 4035197 Rev C
Viewing the RF Status
To View the RF Status Information
Proceed as follows to view the RF status:
From the Info screen, select RF Status and press OK.

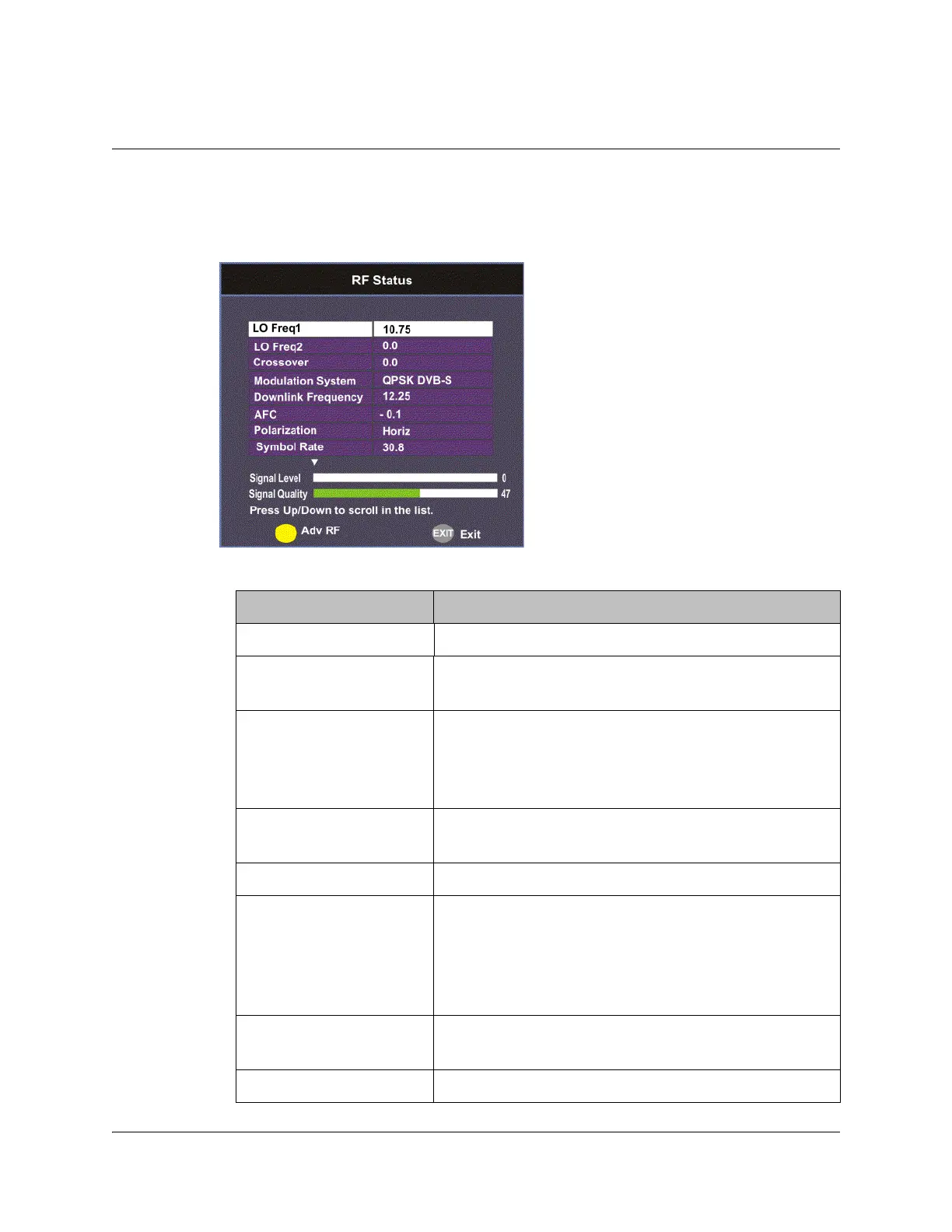

The following table describes the RF Status information displayed:
RF Status Description
Downlink Frequency Indicates the current downlink frequency, in GHz.
Symbol Rate Indicates the Symbol Rate of the received signal, in
MS/s.
Polarization Indicates the signal polarization setting. This setting
is only applicable when LNB Power is set to H-NIT
or V-NIT. The selected setting must match the
polarization of the transmitted signal.
FEC Indicates the FEC (Forward Error Correction) rate of
the received signal.
LO Freq 1/2 Displays the Local Oscillator frequency #1 and #2.
Crossover Indicates the crossover frequency, which is an
internal threshold frequency used for selecting the
LO1 or LO2 frequency, depending on the current
Downlink frequency setting. This is only used in
Ku-Band dual LNB application.
AFC Indicates the current Automatic Frequency Control
adjustment, in MHz.
Modulation System Indicates the modulation type of the received signal.
To Next Page
