4035197 Rev C D9865 Satellite Receiver Installation and Operation Guide 5-9
Tuning Setup
To Set up Tuning Information
Proceed as follows to configure the Tuning Setup page:

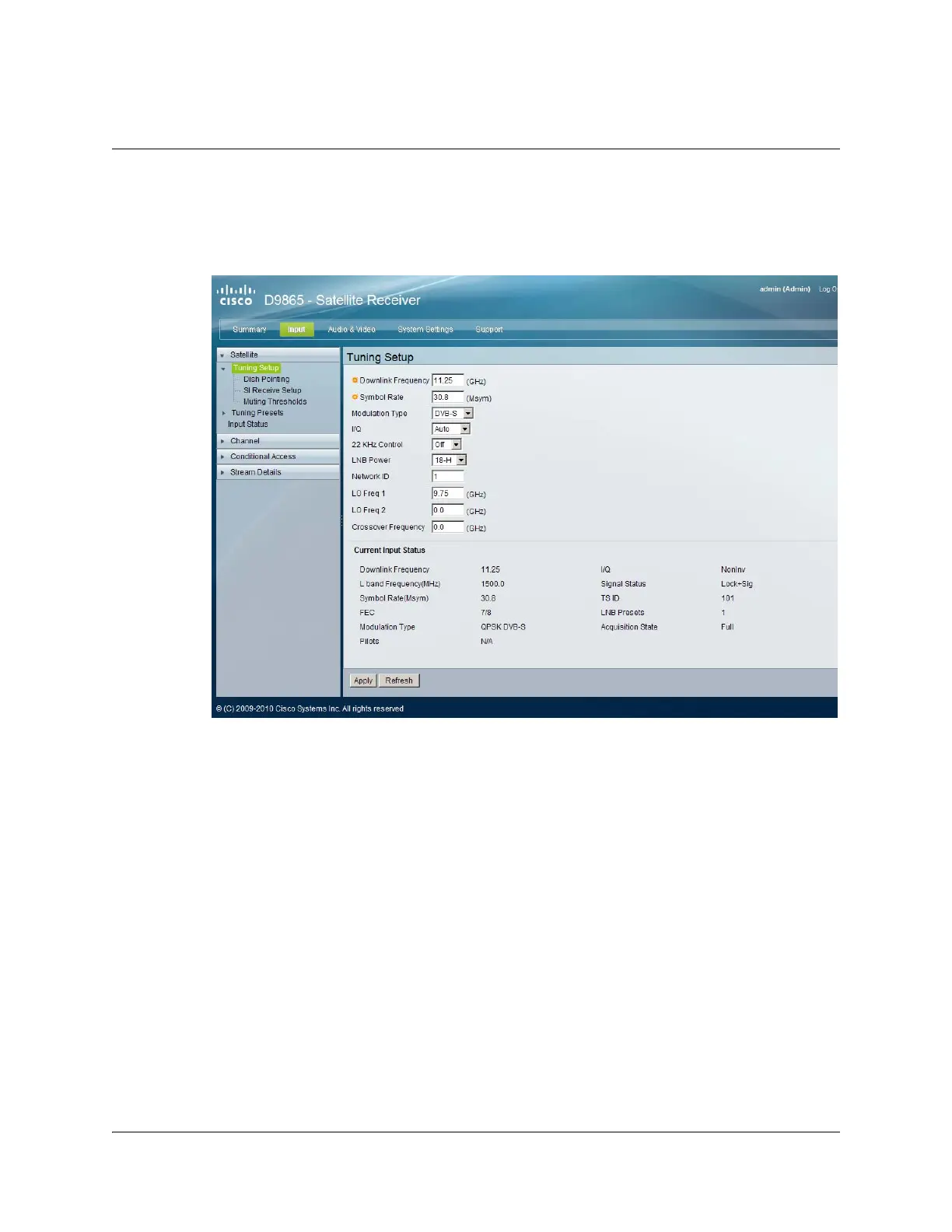

1. From the user interface of the D9865, click Input > Satellite > Tuning Setup.
The Tuning Setup page is displayed.
2. Set the Downlink Frequency used by the receiver for tuning the received digital
signal. You can enter a value in the range from 0.0 to 15.0 GHz. The formula for
C-Band is: Downlink Freq = LO Freq - L-Band Freq. The formula for Ku-Band is
Downlink Freq = LO Freq + L-Band Freq.
3. Type the Symbol Rate. The symbol rate must match that of transmitted signal.
You can enter a value in the range from 1.0 to 45.0 MS/s for DVB-S or 1.0 to 31.0
MS/s for DVB-S2.
4. Select the Modulation Type for the received signal (DVB-S or DVB-S2).
