4035197 Rev C D9865 Satellite Receiver Installation and Operation Guide 5-21
Setting up the Tuning Presets/LNB
To Set Up the Tuning Presets
The Tuning Presets page allows you to select or configure up to 64 network presets.
Your receiver may be shipped pre-configured with a number of network presets.
You can configure the network preset to use one of 10 LNB configurations.
Proceed as follows to set up the Tuning Preset/LNB:
1. From the user interface of the D9865, click Input > Satellite > Tuning Presets.

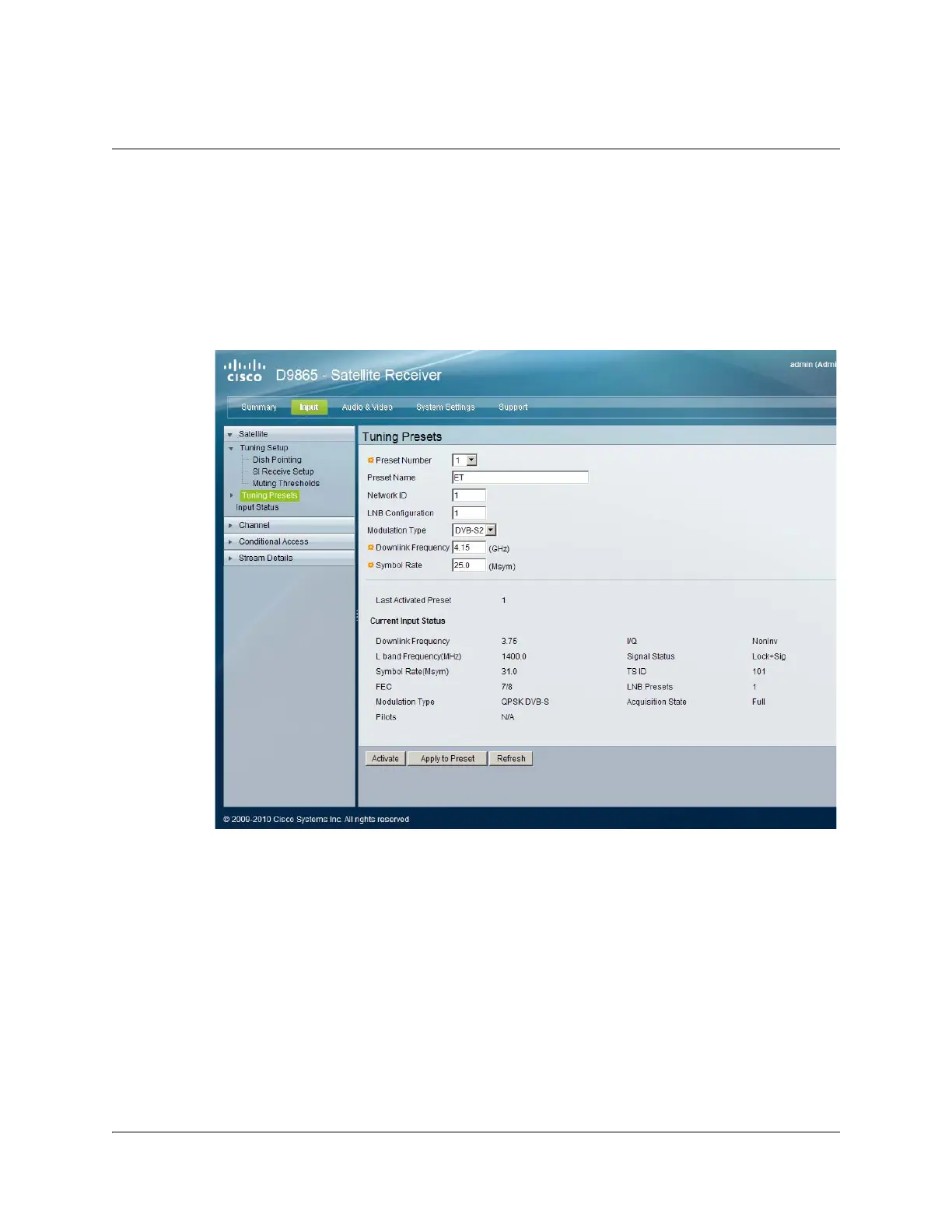

The Tuning Presets page is displayed.
2. Select the Preset Number, a value in the range from 1 to 64.
3. Enter the Preset network Name.
4. Enter the Network ID, obtained from your service provider.
5. Enter the LNB Configuration, a value in the range from 1 to 10.
6. Select the Modulation Type for the received signal (DVB-S or DVB-S2).
7. Set the Downlink Frequency used by the receiver for tuning the received digital
signal. You can enter a value in the range from 0.0 to 15.0 GHz. The formula for
C-Band is: Downlink Freq = LO Freq - L-Band Freq. The formula for Ku-Band is
Downlink Freq = LO Freq + L-Band Freq.
To Next Page
