Setting up the Preset / LNB
To Set Up Preset/LNB Parameters
The Preset/LNB Setup sub-menu allows you to select or configure up to 64 network
presets. Your receiver may be shipped pre-configured with a number of network
presets. You can configure the network preset to use one of 10 LNB configurations.
Proceed as follows to set up the preset/LNB settings:

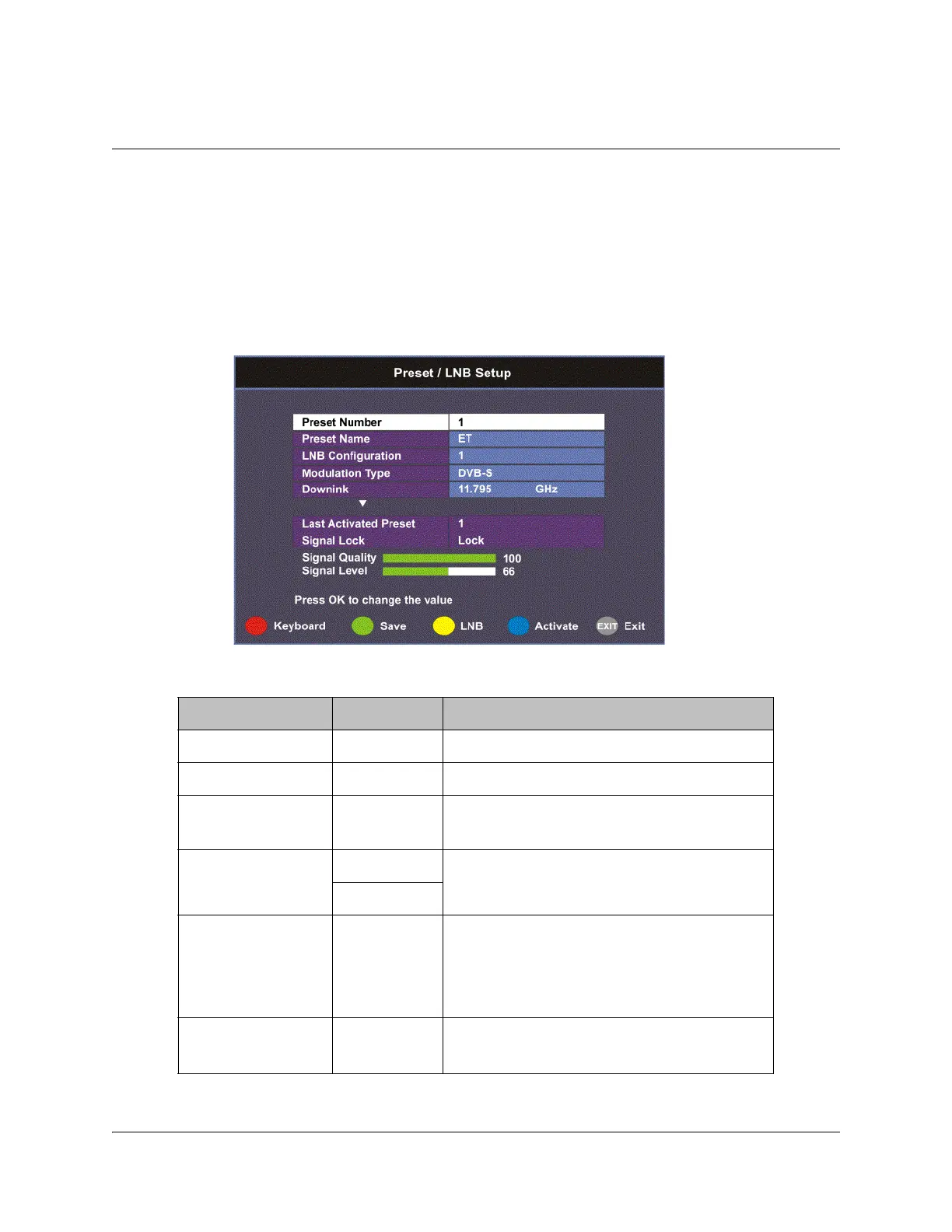

1. From the Tuning / Preset screen, press the yellow button (Preset) to set up the
Preset/LNB.
2. The following table describes each of the available options:
Selection Options Description
Preset Number 1 to 64 Enter or select the preset number.
Preset Name Enter name Set the preset network name.
LNB
Configuration
1 to 10 Enter or select the LNB configuration.
Modulation Type DVB-S Select the modulation scheme.
DVB-S2
Downlink (Freq) Enter
number
For C-Band,
Downlink Freq = LO Freq - L-band Freq.
For Ku-Band,
Downlink Freq = LO Freq + L-band Freq.
Symbol Rate 1.0 to 45.0
1.0 to 31.0
Range for DVB-S in MS/s.
Range for DVB-S2 in MS/s.
