4035197 Rev C D9865 Satellite Receiver Installation and Operation Guide 5-47
Setting Up IP Routing, Continued

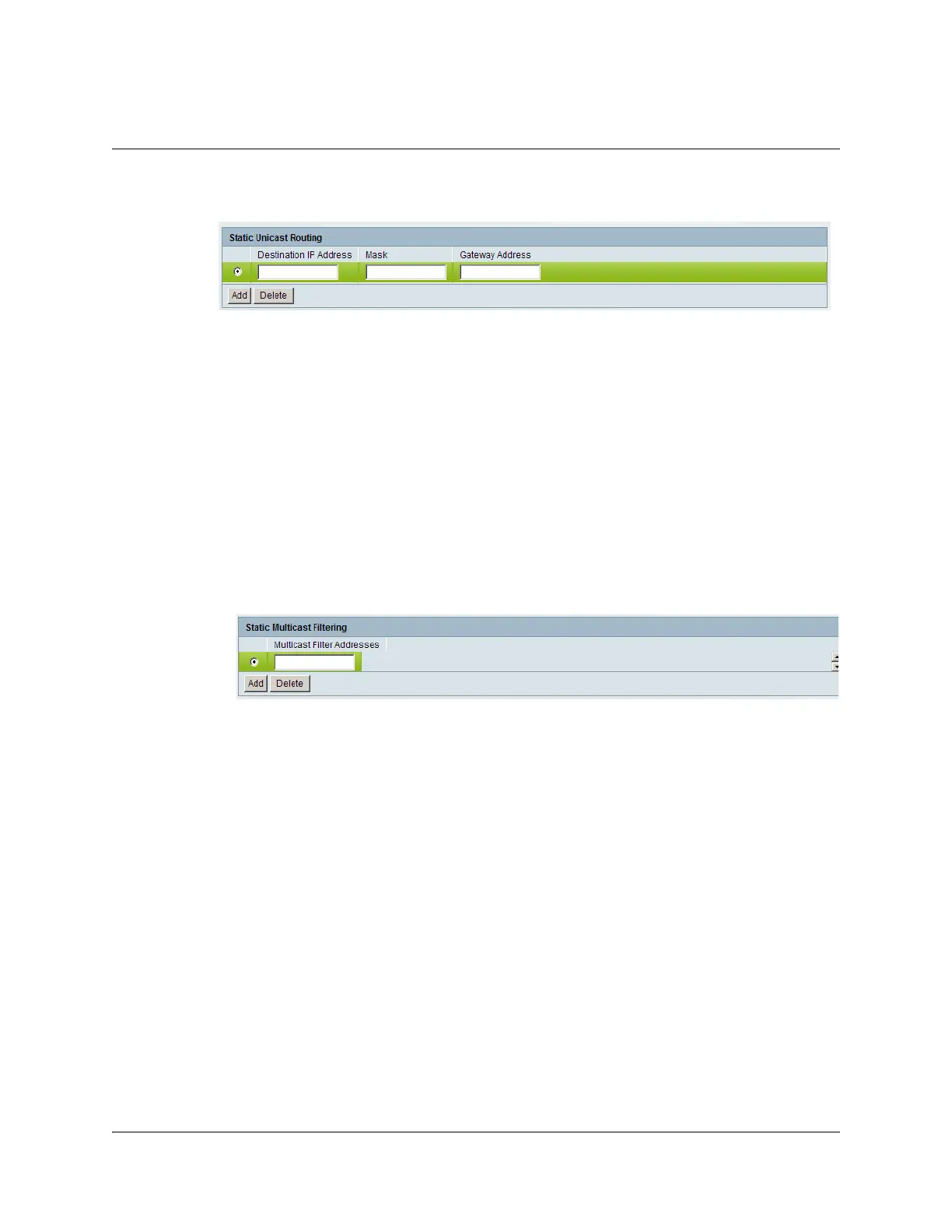

4. The Static Unicast Routing displays the static unicast routing addresses for the
MPE data. To add a new address, click Add. The following is displayed:
•Set the Destination IP Address for its participation in a Network
environment. The address must be 12 digits in length, in the following format:
###.###.###.###.
• Set the subnet Mask for its participation in a Network environment, from 8 to
32.
•Set the network Gateway Address used to expose the receiver to a WAN. The
address must be 12 digits in length, in the following format:
###.###.###.###.
•Click Add.
• To remove an address entry, select the entry and click Delete.
5. The Multicast Filtering Addresses section lists the multicast destination IP
addresses. To add a new address, click Add. The following is displayed:
•Enter a Multicast Filter Address and click Add.
• To remove an address entry, select the entry and click Delete.
