4.3. Hang the side modules onto the beam

Repeat this for both side modules; the side modules are identical.

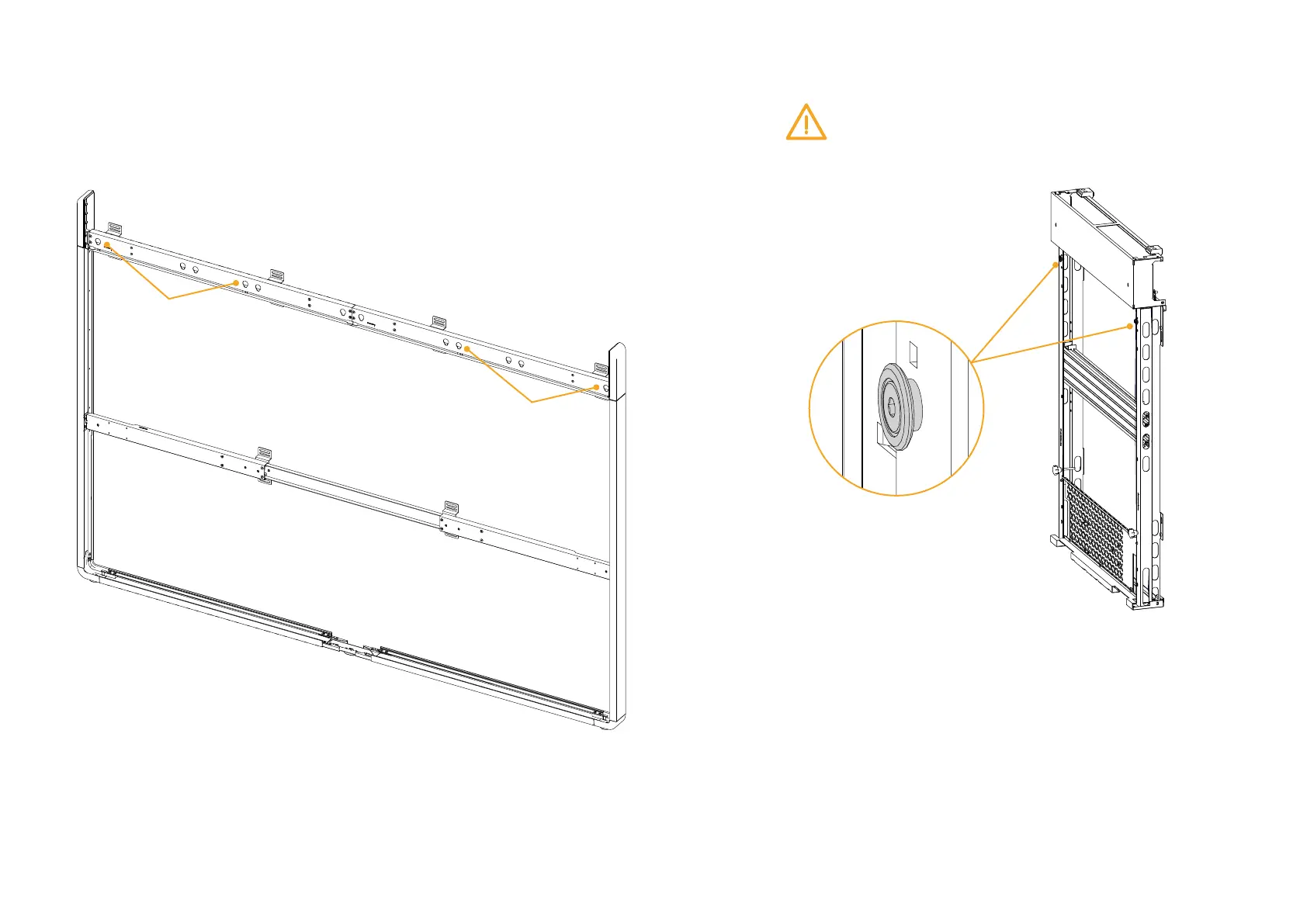

1. Observe the keyholes on the beam, and the large screw heads at

the back of the side modules.

These screw heads will hang in the keyholes

Rear view of side module

Screw with large head,

for hanging the module

on the beam.

Keyholes for the

left side module

Keyholes for the

right side module

To avoid getting your fingers pinched between the modules,

lift a side module by holding your hands on the top and bottom

of the module; NOT on the side toward the center module.
