20 Copyright © 2024 Cisco Systems, Inc. All rights reserved.D15519.02 | 2024 JANUARY | Cisco Room Kit EQX Installation Guide

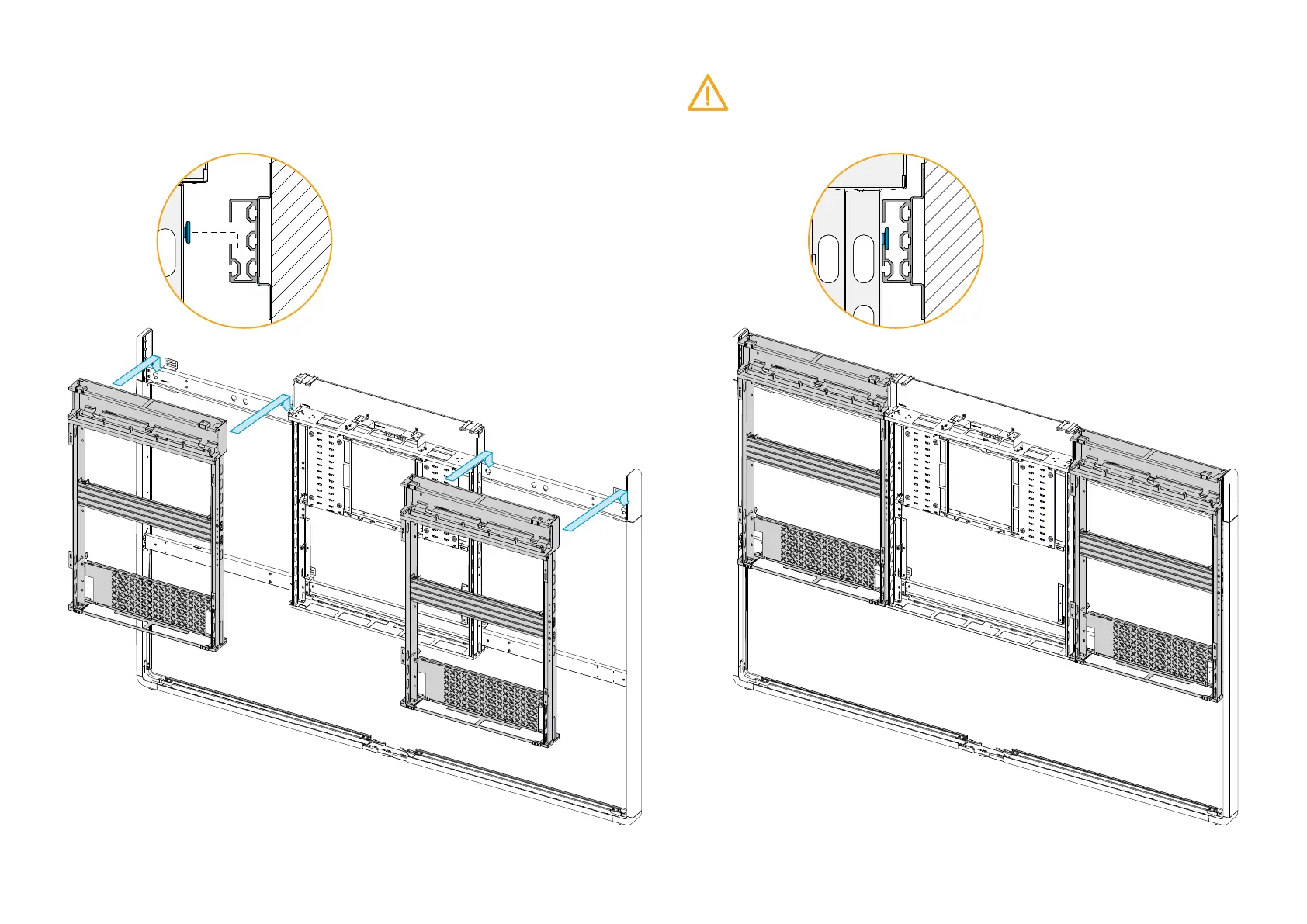

To avoid getting your fingers pinched between the modules,
lift a side module by holding your hands on the top and bottom
of the module; NOT on the side toward the center module.
2. Hang the large screw heads at the back of the module
onto the beam keyholes.
