Cisco SG350-10MP Administration Guide

Dashboard
Identification
34 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4
3
The following configuration options (right-hand corner) are available:
• Refresh Time—Select one of the options displayed.
• Multicast Groups—Click to open MAC Group Address
• MAC Address Table—Click to open Dynamic Addresses.
• TCAM Utilization Information—Click to open Hardware Resource Utilization.
• CPU Utilization Information—Click to open CPU Utilization.
Identification

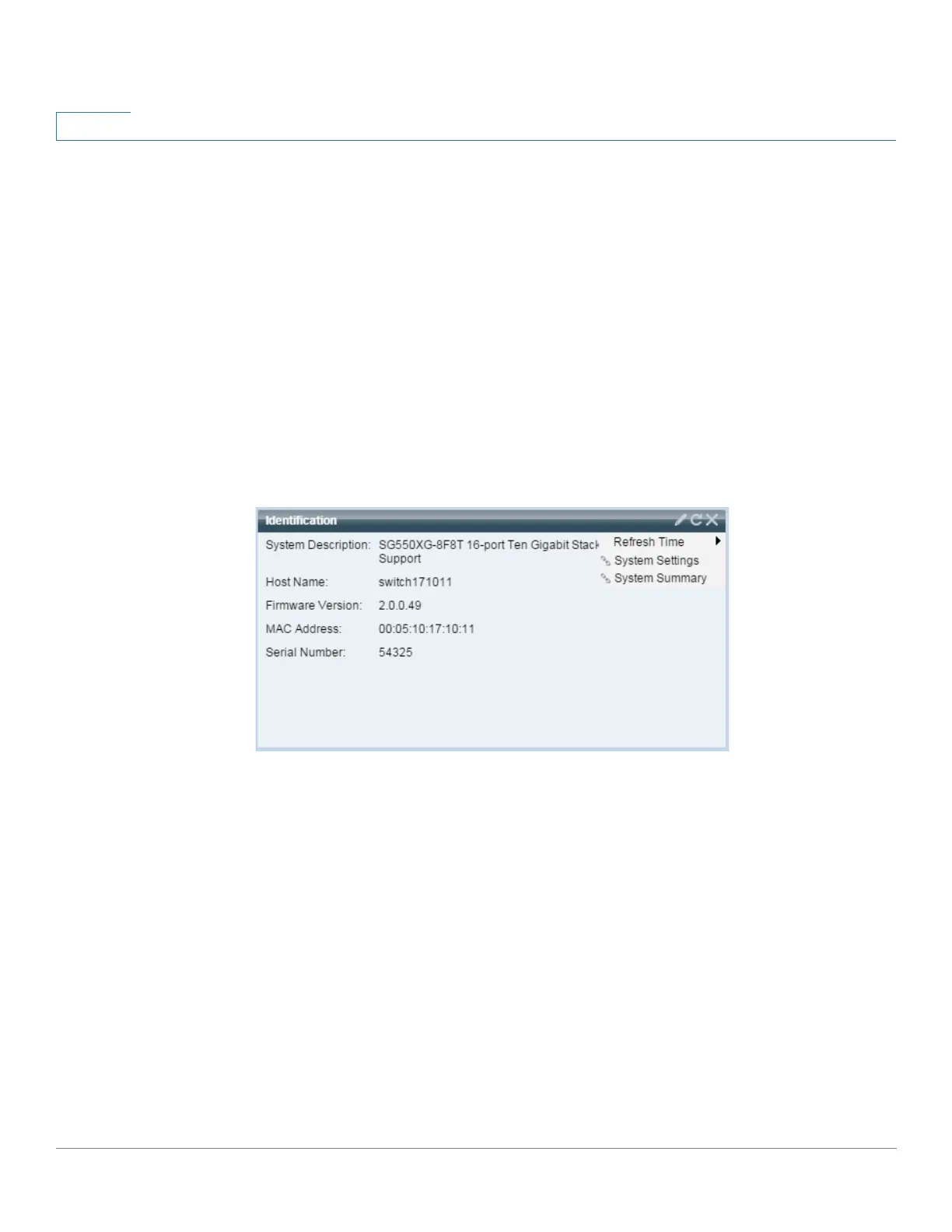

This module displays basic information regarding the device and stack, as shown below:
It displays the following fields:
• System Description—Displays description of the device.
• Host Name—Entered in the System Settings page or default is used. Also can be
added in the Getting Started Wizard.
• Firmware Version—Current firmware version running on device.
• MAC Address (master unit)—MAC address of the unit.
• Serial Number (master unit)—Serial number of the unit.
• System Location—Enter the physical location of the device.
• System Contact—Enter the name of a contact person.
• Total Available Power—Amount of power available to the device.

Cisco SG350-10MP Specifications

General

Model	SG350-10MP
Category	Switch
PoE Budget	130W
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Power Supply	Internal
Ports	8 x 10/100/1000 PoE+ + 2 x Gigabit SFP
MAC Address Table Size	16K
Jumbo Frame Support	9216 bytes
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	10% to 90% relative humidity, non-condensing
Storage Humidity	5% to 95% relative humidity, non-condensing
Dimensions (W x D x H)	279.4 x 170 x 44 mm (11.0 x 6.7 x 1.73 in)
