• VLAN Overlay column—Connected VLAN. Shows the VLANs of which the
connected port is a member. This field may contain a long list of VLANs. If
the complete list does not fit in the table, it can be viewed in the right-hand
information panel when selecting the client.
The client explorer is not supported for client groups that are connected to the network through
a cloud.
Overlays
Overlays are layers of information that can be activated on the topology view to add more
information or affect the way the topology is displayed. This can be accomplished, for
example, by coloring topology elements in different colors depending on various criteria or by
changing the icons that are displayed on topology elements to show detailed data relevant to
the selected overlay.

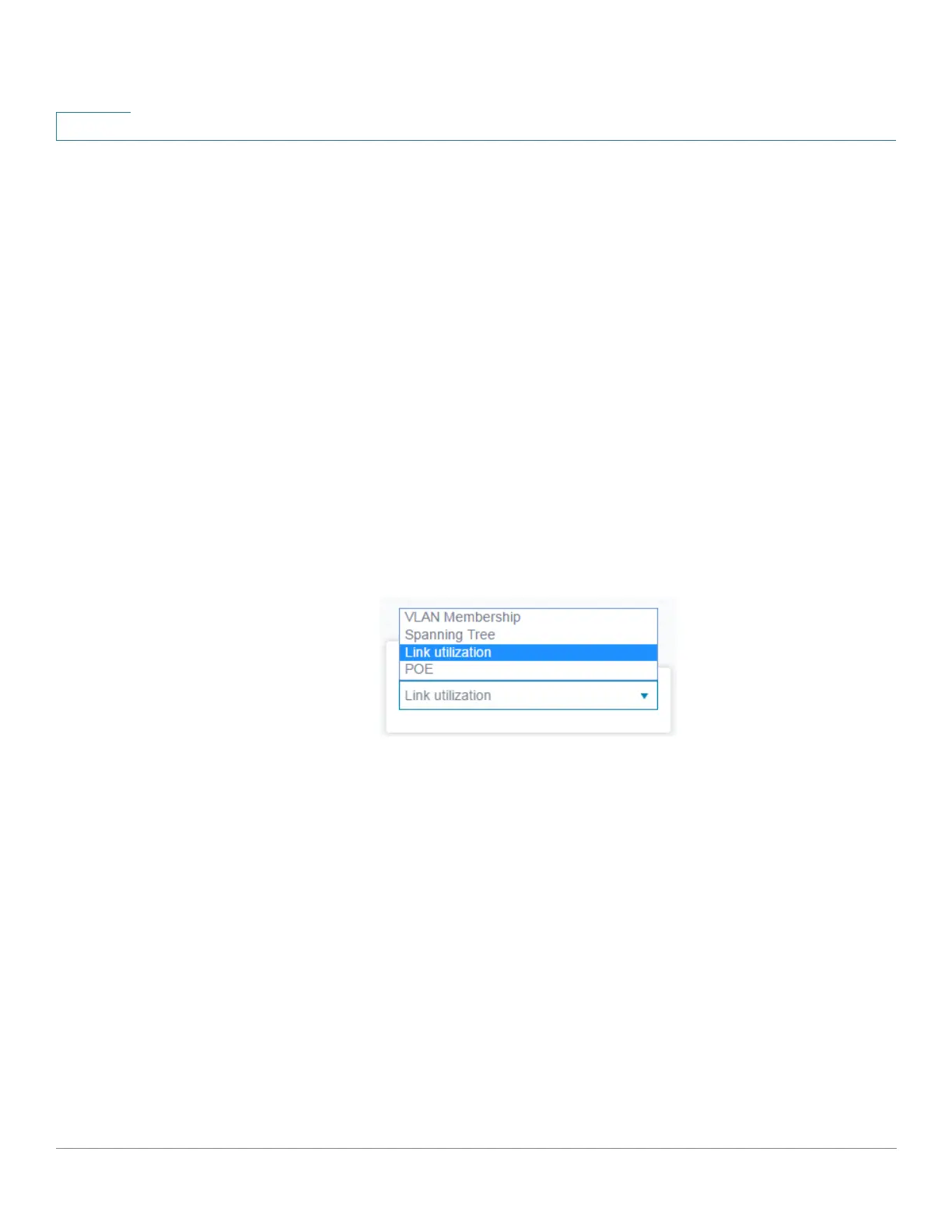

Select the overlay you want to use from a list of available overlays.
Some overlays may have parameters associated with them, such as the VLAN overlay. When
you select the VLAN overlay, for example, you must also select a specific VLAN.
Only one overlay can be active at a time, therefore selecting an overlay deactivates any other
active overlay.
The following overlays are supported:
• Link Utilization
• PoE Information
• VLAN Membership
• STP Information

Cisco SG350-10MP Specifications

General

Model	SG350-10MP
Category	Switch
PoE Budget	130W
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Power Supply	Internal
Ports	8 x 10/100/1000 PoE+ + 2 x Gigabit SFP
MAC Address Table Size	16K
Jumbo Frame Support	9216 bytes
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	10% to 90% relative humidity, non-condensing
Storage Humidity	5% to 95% relative humidity, non-condensing
Dimensions (W x D x H)	279.4 x 170 x 44 mm (11.0 x 6.7 x 1.73 in)
