Cisco SG350-10MP Administration Guide

Dashboard
Latest Logs
Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4 37
3

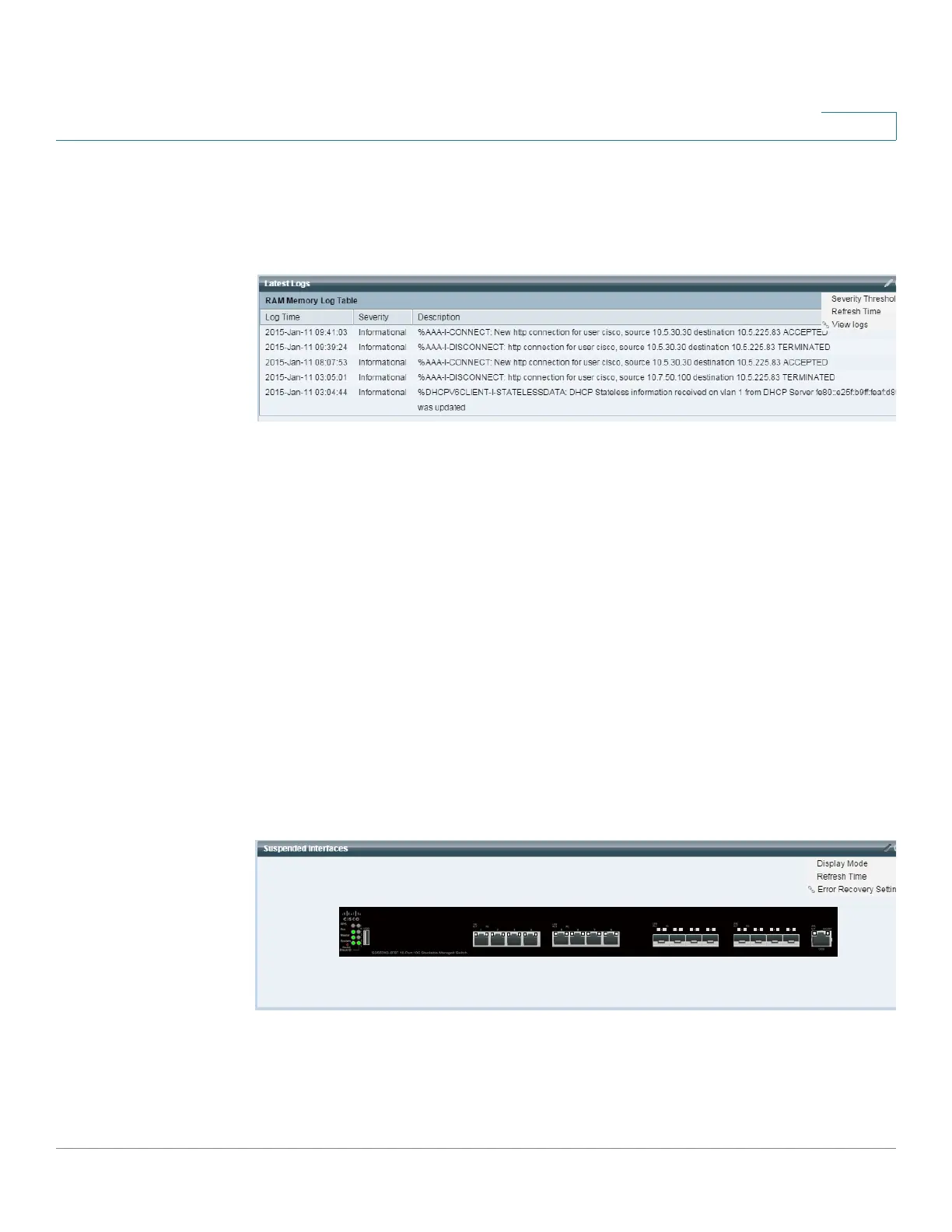

Latest Logs
This module contains information about the five latest events logged by the system as
SYSLOGs, as shown below:
The following configuration options (right-hand corner) are available:
• Severity Threshold—Described in Log Settings.
• Refresh Time—Select one of the options displayed.
• View Logs—Click to open RAM Memory.
NOTE See View Logs for more information.
Suspended Interfaces
This module displays interfaces that have been suspended in either device or table view. The
view is selected in the configuration options (pencil icon in upper-right corner).
• Device View
In this view, the device is displayed. This is shown below:
When units are connected in a stack, a drop-down selector enables the user to select the
device to be viewed. All suspended ports in the device are shown as red.

Cisco SG350-10MP Specifications

General

Model	SG350-10MP
Category	Switch
PoE Budget	130W
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Power Supply	Internal
Ports	8 x 10/100/1000 PoE+ + 2 x Gigabit SFP
MAC Address Table Size	16K
Jumbo Frame Support	9216 bytes
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	10% to 90% relative humidity, non-condensing
Storage Humidity	5% to 95% relative humidity, non-condensing
Dimensions (W x D x H)	279.4 x 170 x 44 mm (11.0 x 6.7 x 1.73 in)
