Cisco SG350-10MP Administration Guide

Dashboard
Port Utilization
Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4 35
3
• Current Power Consumption—Amount of power consumed by the device.
The following configuration options (right-hand corner) are available:
• Refresh Time—Select one of the options displayed.
• System Settings—Click to open System Settings.
• System Summary—Click to open System Summary.

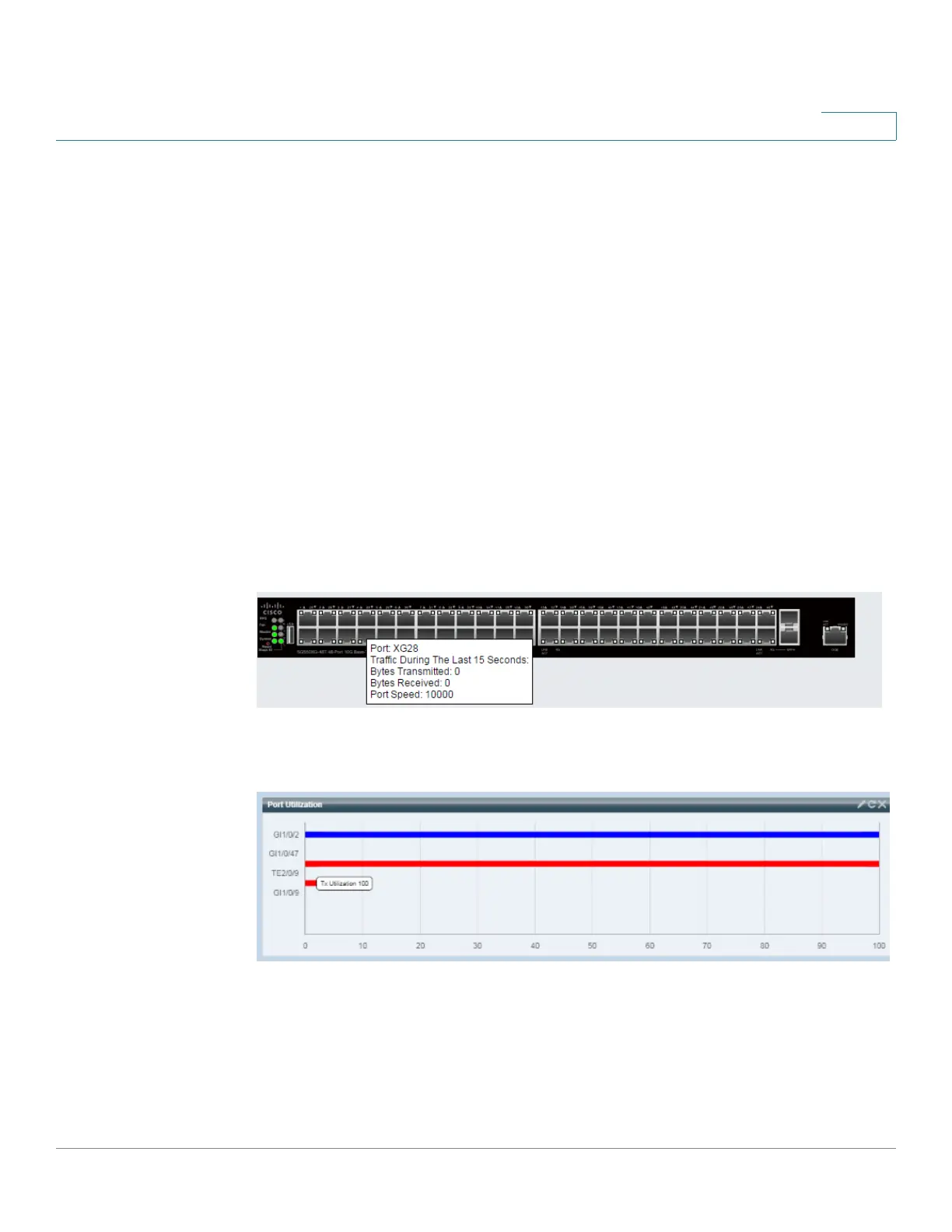

Port Utilization
This modules displays the ports on the device in either device or chart view. The view is
selected in the configuration options (pencil icon in upper-right corner).
• Display Mode—Device View
Displays the device. Hovering over a port displays information about it.
• Display Mode—Chart View
A list of ports is displayed. The port utilization is displayed in bar format:
For each port, the following port utilization information is displayed:
Tx—% (red)
Rx—% (blue)

Cisco SG350-10MP Specifications

General

Model	SG350-10MP
Category	Switch
PoE Budget	130W
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Power Supply	Internal
Ports	8 x 10/100/1000 PoE+ + 2 x Gigabit SFP
MAC Address Table Size	16K
Jumbo Frame Support	9216 bytes
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	10% to 90% relative humidity, non-condensing
Storage Humidity	5% to 95% relative humidity, non-condensing
Dimensions (W x D x H)	279.4 x 170 x 44 mm (11.0 x 6.7 x 1.73 in)
