Cisco SG350-10MP Administration Guide

Smart Network Application (SNA)
Services
518 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4
25

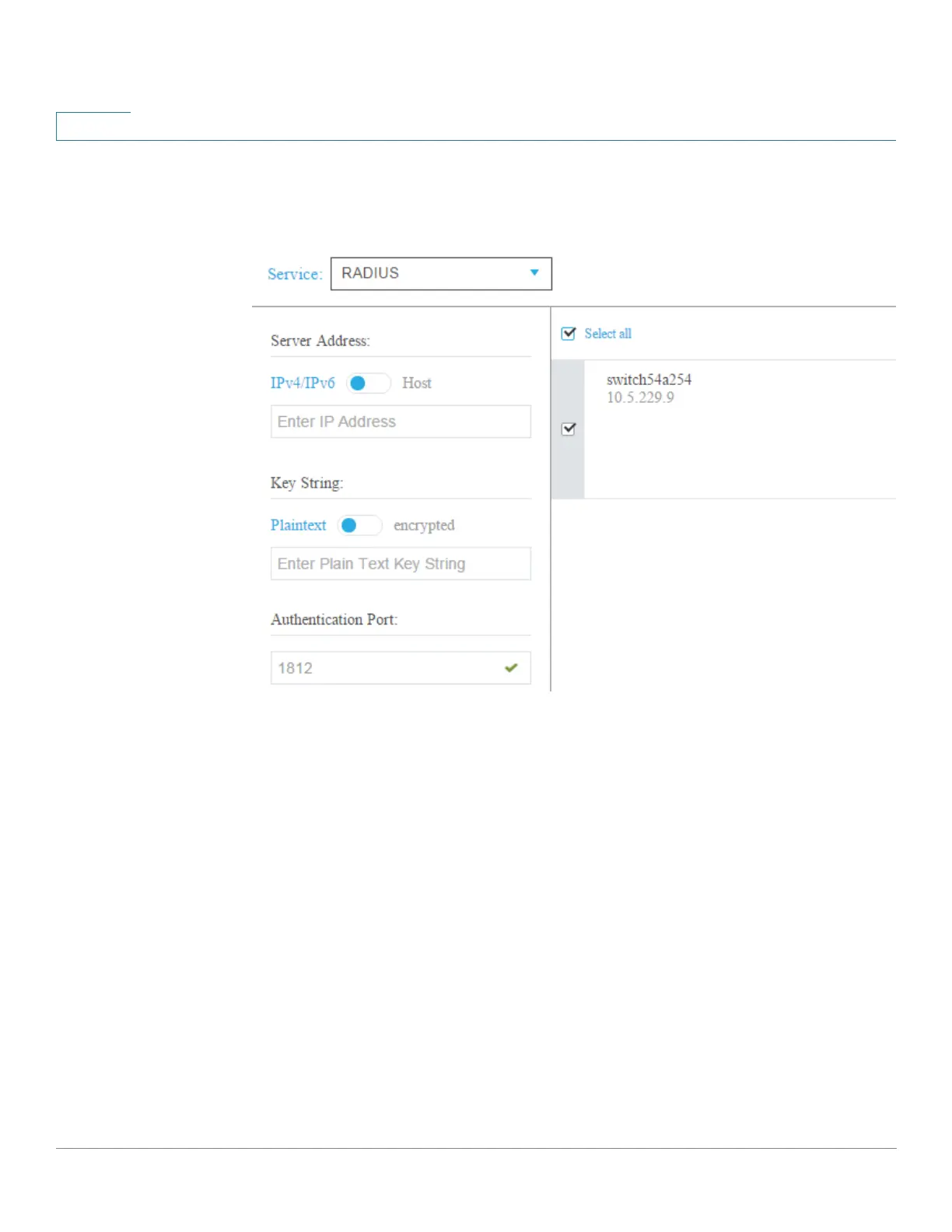

Current Configuration
For every selected device, the current configuration displays the RADIUS server with usage
type login or all of the lowest priority configured on it on the right-hand information.
If more than one RADIUS server of the lowest priority exists, a single server is displayed, in
the following order:
- The first RADIUS server (alphabetically) defined by host name.
- The RADIUS server with the lowest IPv4 address
- The RADIUS server with the lowest IPv6 address
The entry created by the service has a priority of 0 and usage type login.
If an entry with the same IP address or host name as the new entry already exists, with priority
0 and usage type 802.1x, the existing entry is updated to usage type all.
If an entry with a different IP address or host name already exists, the entry is displayed and if
its usage type is login, it is replaced by the new entry. If its usage type was all, it is changed to
802.1x.
If an entry with the same IP address or host name already exists in a priority lower than 0, the
entry’s priority is changed to 0, and the login usage is added to it, if needed.

Cisco SG350-10MP Specifications

General

Model	SG350-10MP
Category	Switch
PoE Budget	130W
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Power Supply	Internal
Ports	8 x 10/100/1000 PoE+ + 2 x Gigabit SFP
MAC Address Table Size	16K
Jumbo Frame Support	9216 bytes
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	10% to 90% relative humidity, non-condensing
Storage Humidity	5% to 95% relative humidity, non-condensing
Dimensions (W x D x H)	279.4 x 170 x 44 mm (11.0 x 6.7 x 1.73 in)
