Cisco vEdge Series User Manual

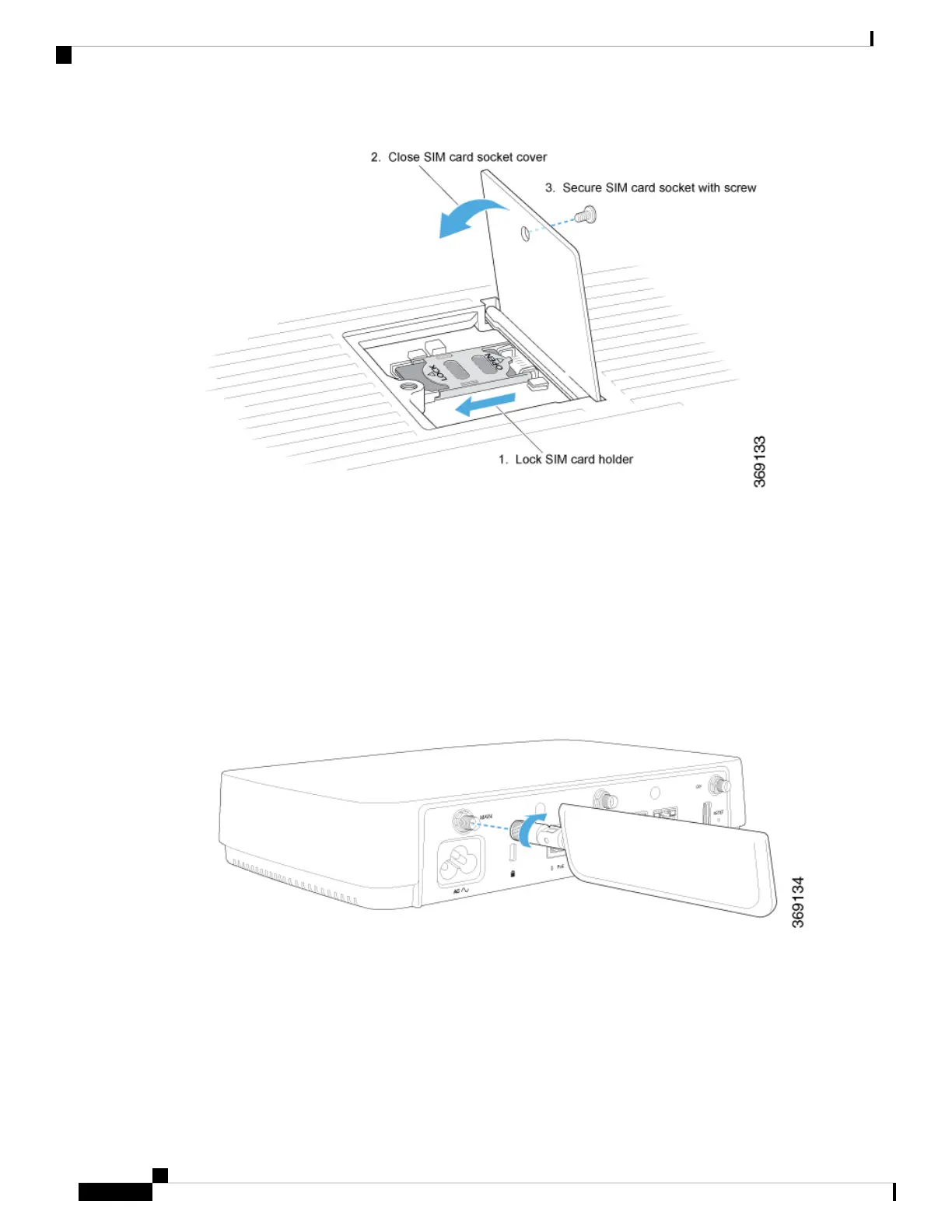

If you need to change the SIM card later, make sure you disconnect the router's power first, before installing
the new card.
Attach the Antennas to the vEdge 100wm Router
The rear panel of the vEdge 100wm router has two antenna terminals. To attach the multiband antennas to
the router:
1. Screw one antenna into the terminal marked MAIN, and screw the other antenna into the terminal marked
DIV.
Figure 8: Attaching the Antennas to the Rear of the Router
1. Turn each antenna so that it is vertical.
Figure 9: Turning the Antenna to a Vertical Position
Hardware Installation Guide for vEdge Routers
100
vEdge 100wm Router
Install the vEdge 100wm Router

Cisco vEdge Series Specifications

General

Connectivity Technology	Wired
Virtualization Support	Yes
High Availability	Yes
QoS Support	Yes
Product Type	Router
Data Link Protocol	Ethernet
Routing Protocols	BGP, OSPF
Interfaces	Gigabit Ethernet
Operating System	Cisco vEdge OS
Security	IPSec
Management	CLI
