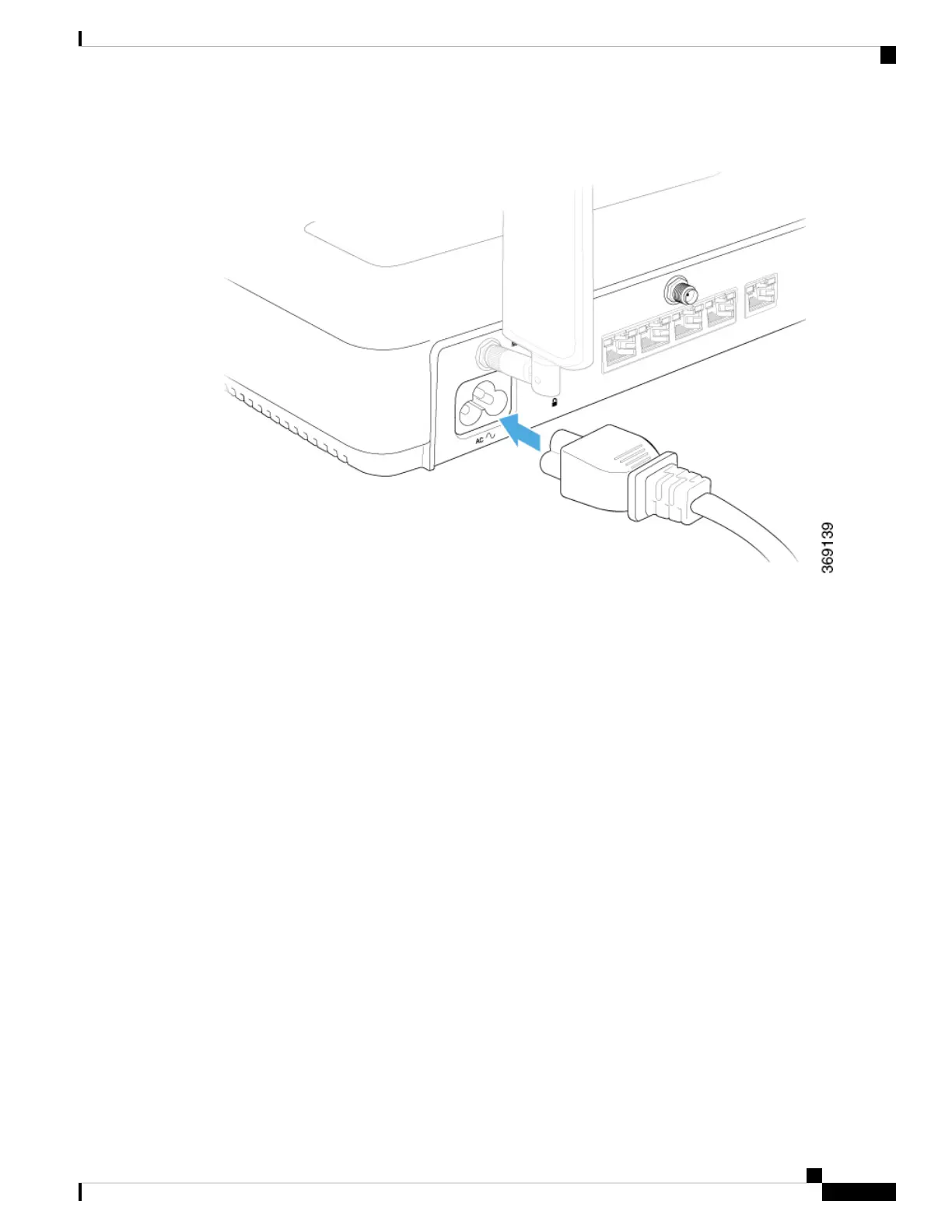

Figure 1: Connecting AC Power Supply to a vEdge 100wm Router
Note: It is strongly recommended that you use the power cord supplied with the vEdge 100wm router.
Caution: If you are connecting AC power to the router, it is recommended that the building have an external
surge protective device installed.
Connect the Router to LAN and WAN Interfaces
To connect the vEdge 100wm router to the LAN, plug the appropriate cable into any port except Port 4 on
the front of the router.
To connect the vEdge 100wm router to a WAN, plug the appropriate cable into Port 4 on the front of the
router.
Figure 2: Connecting a vEdge 100wm Router to LAN and WAN Interfaces
Hardware Installation Guide for vEdge Routers
103
vEdge 100wm Router
Connect the vEdge 100wm Router
