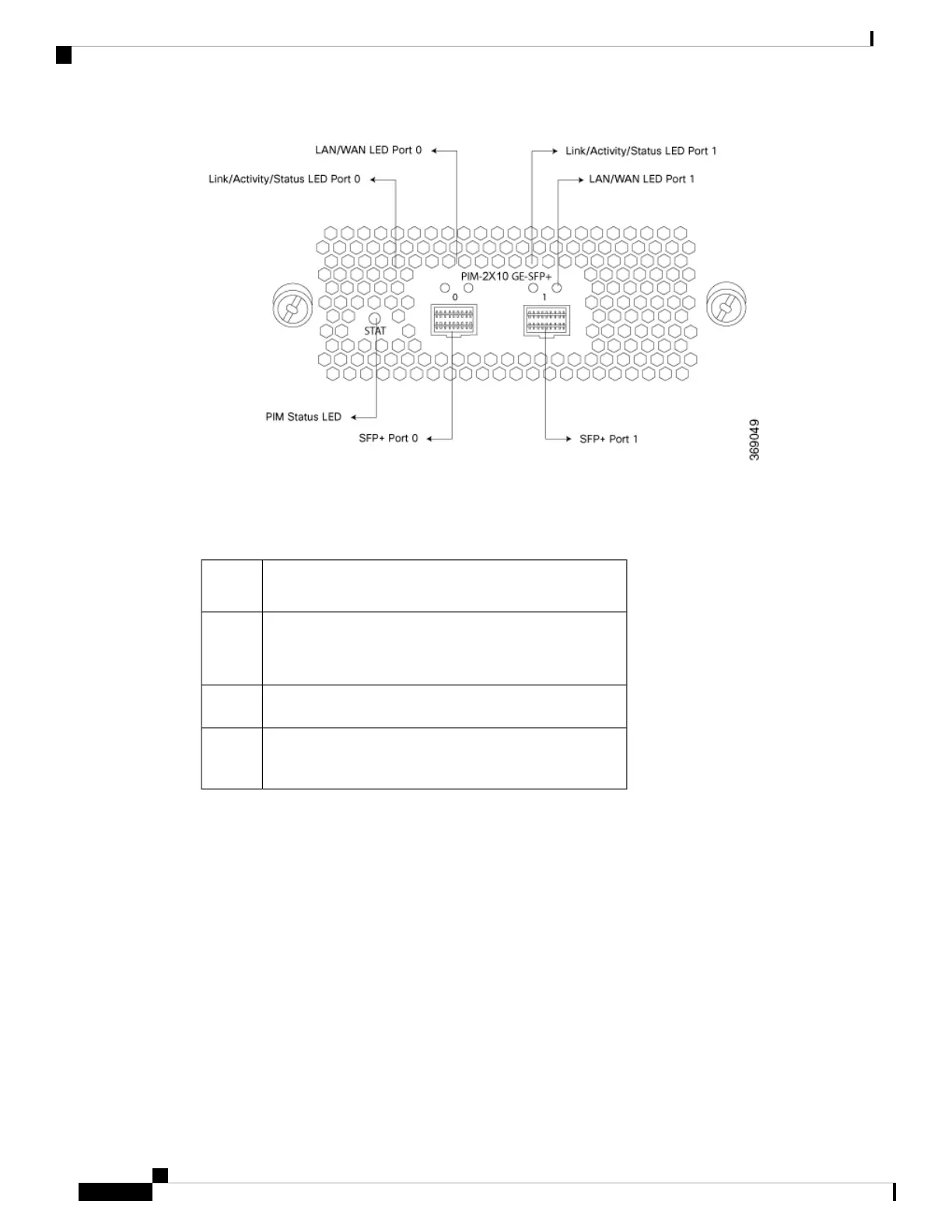

The status LED on the front panel indicates the status of the PIM (see Table 1). For an explanation of the
LAN/WAN LED and the Link/Activity/Status LED, see Network Port LEDs .
Table 53:
DescriptionLED
State
• The PIM module is offline.
• The router is powered off.
Off
• The PIM module is online and functioning normally.Green
• The PIM module is online but is not functioning
normally.
Red
Note: You can install the 8x1-Gigabit Ethernet SFP PIM in either PIM Slot 0 or PIM Slot 1. However, when
it is installed in PIM Slot 0, only four ports are usable. When it is installed in PIM Slot 1, all eight ports are
usable. There is no such restriction with the 2x10-Gigabit Ethernet SFP+ PIM. For details, see Interface Port
Combinations for the vEdge 2000 Router below.
Interface Port Combinations for the vEdge 2000 Router
A vEdge 2000 router has four fixed 1-Gigabit Ethernet interfaces, and you can install one or two PIM modules
for additional interfaces.
You can combine the fixed interfaces and the PIM modules as follows:
• Two 2x10-Gigabit Ethernet SFP+ PIMs. This combination allows you to configure four 10-Gigabit
Ethernet interfaces. This would give you a total of four 10-Gigabit Ethernet interfaces and four 1-Gigabit
Ethernet interfaces in the router.
Hardware Installation Guide for vEdge Routers
166
vEdge 2000 Router
PIM and Transceiver Modules

Cisco vEdge Series Specifications

General

Connectivity Technology	Wired
Virtualization Support	Yes
High Availability	Yes
QoS Support	Yes
Product Type	Router
Data Link Protocol	Ethernet
Routing Protocols	BGP, OSPF
Interfaces	Gigabit Ethernet
Operating System	Cisco vEdge OS
Security	IPSec
Management	CLI
