QuantityComponent
2Mounting ears, left and right
1Wall-mount bracket
4Mounting ears screws (Packet A)
4Rack-mount screws (Packet B)
1Lock plate and screw (Packet C)
4Wall-mount screws (Packet D)
1Quick Start document
Mount the vEdge 100 Router
You can mount the vEdge 100 router in one of the following ways:
• Mount the router in a 19-inch rack
• Mount the router on the wall
In addition to the accessory box, you need the following tools to mount a vEdge 100 router:
• Number 2 Phillips (+) screwdriver
• Tape measure or level
Mount the vEdge 100 Router in a Rack
You can mount the vEdge 100 router on two front posts in a 19-inch rack using simple rack mount ear
accessories. To do so:
1. Place the router chassis on the floor or on a sturdy table near the rack.
2. Verify the internal dimensions of the rack with a tape measure. The rack-mount tray is 440 mm wide and
must fit within the mounting posts.
3. Secure the left and right mounting ears to either side of the router chassis using the four screws (two on
each side) in the packet marked A.

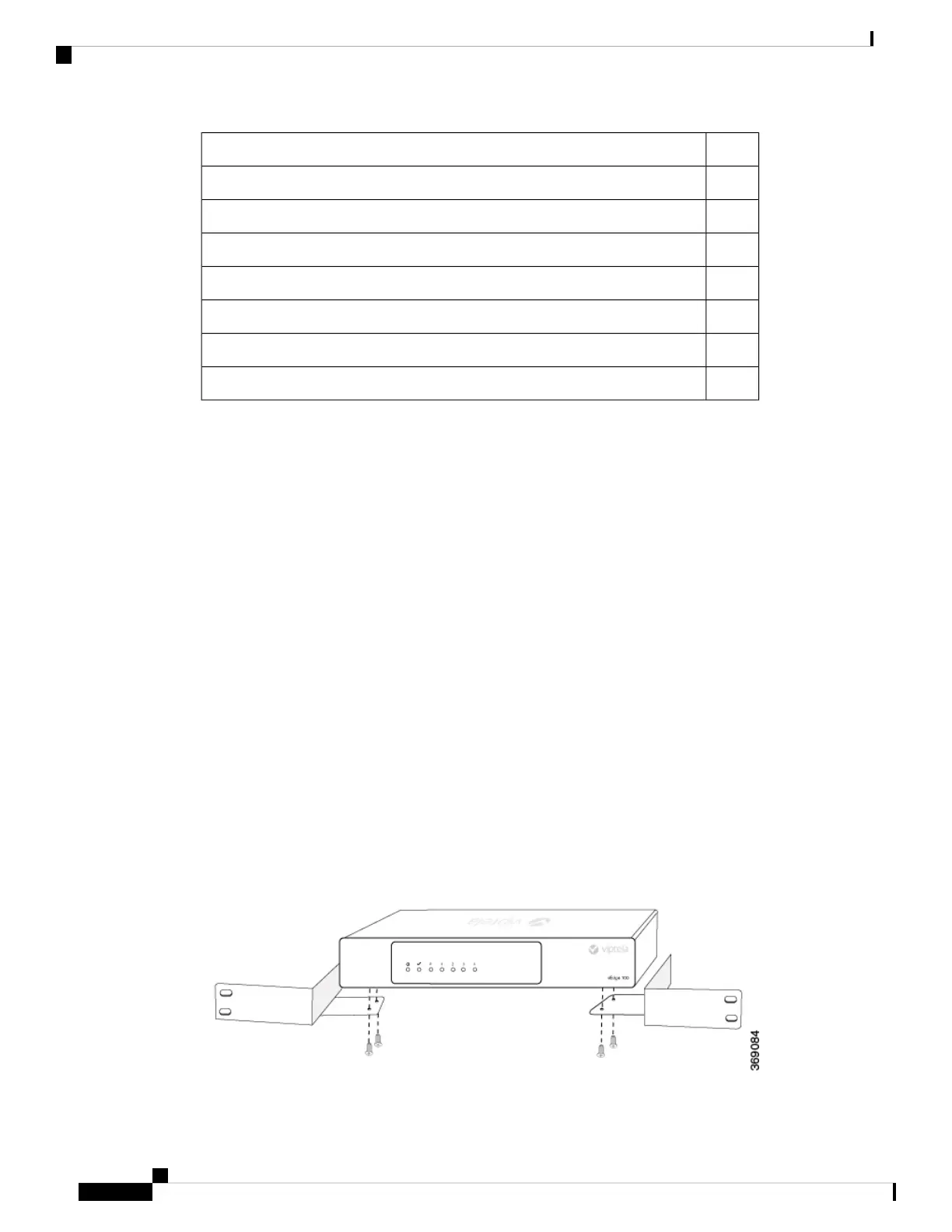

Figure 2: Attaching the Mounting Ears to the vEdge 100 Router Chassis
Hardware Installation Guide for vEdge Routers
12
vEdge 100 Router
Install the vEdge 100 Router
