1. Mount the router on the mounting plate by aligning the four screws on the underside of the router chassis
to the holes in the mounting plate. Then gently slide the router chassis into the slots.

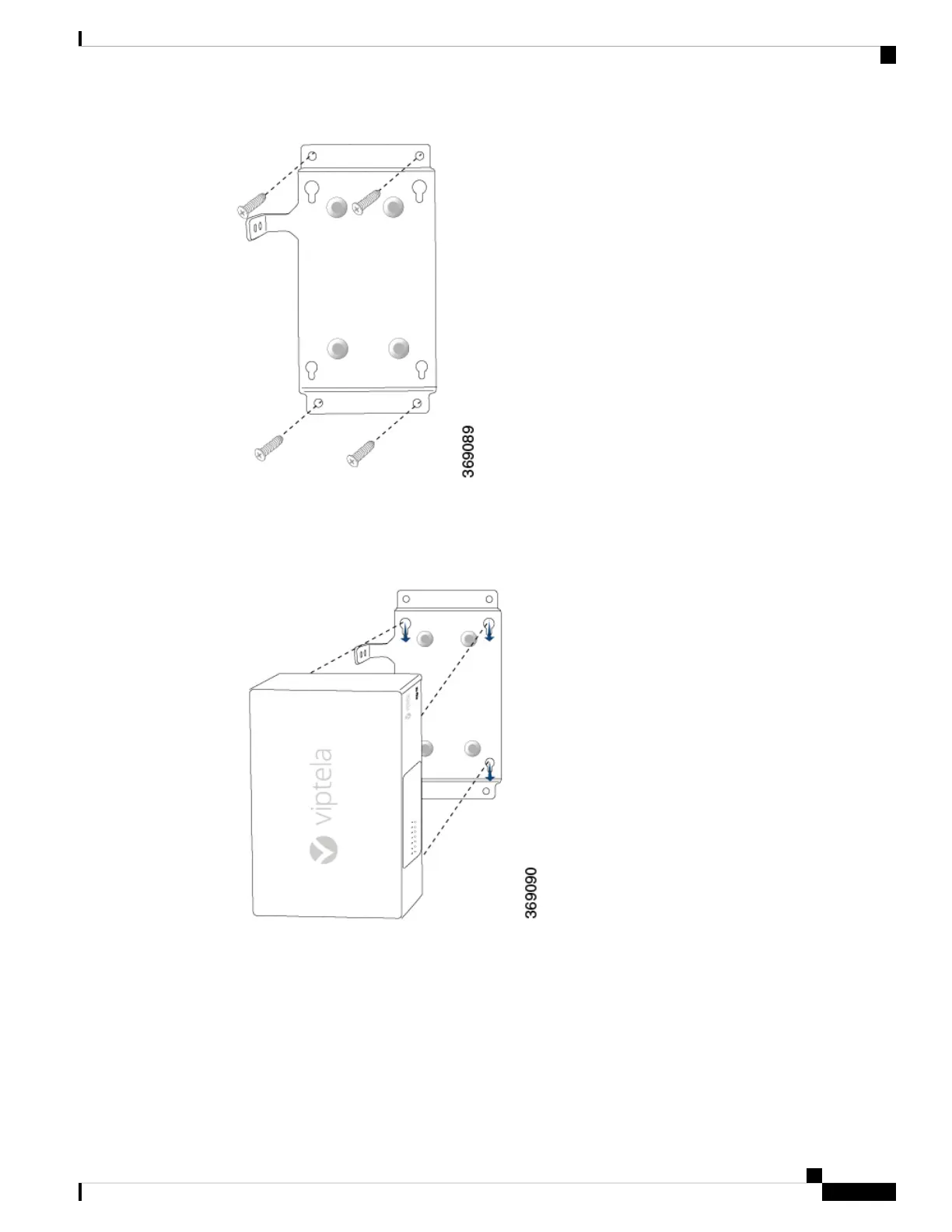

Figure 8: Mounting the vEdge 100 Router on the Mounting Plate
1. Secure the router by aligning the round hole on the L-shaped bracket of the mounting plate with the screw
hole in the rear of the router chassis. Then attach the L-shaped bracket to the router using a mounting ear
screw from packet A.
Figure 9: Securing the vEdge 100 Router to the Mounting Plate
Hardware Installation Guide for vEdge Routers
15
vEdge 100 Router
Install the vEdge 100 Router
