Cisco vEdge Series User Manual

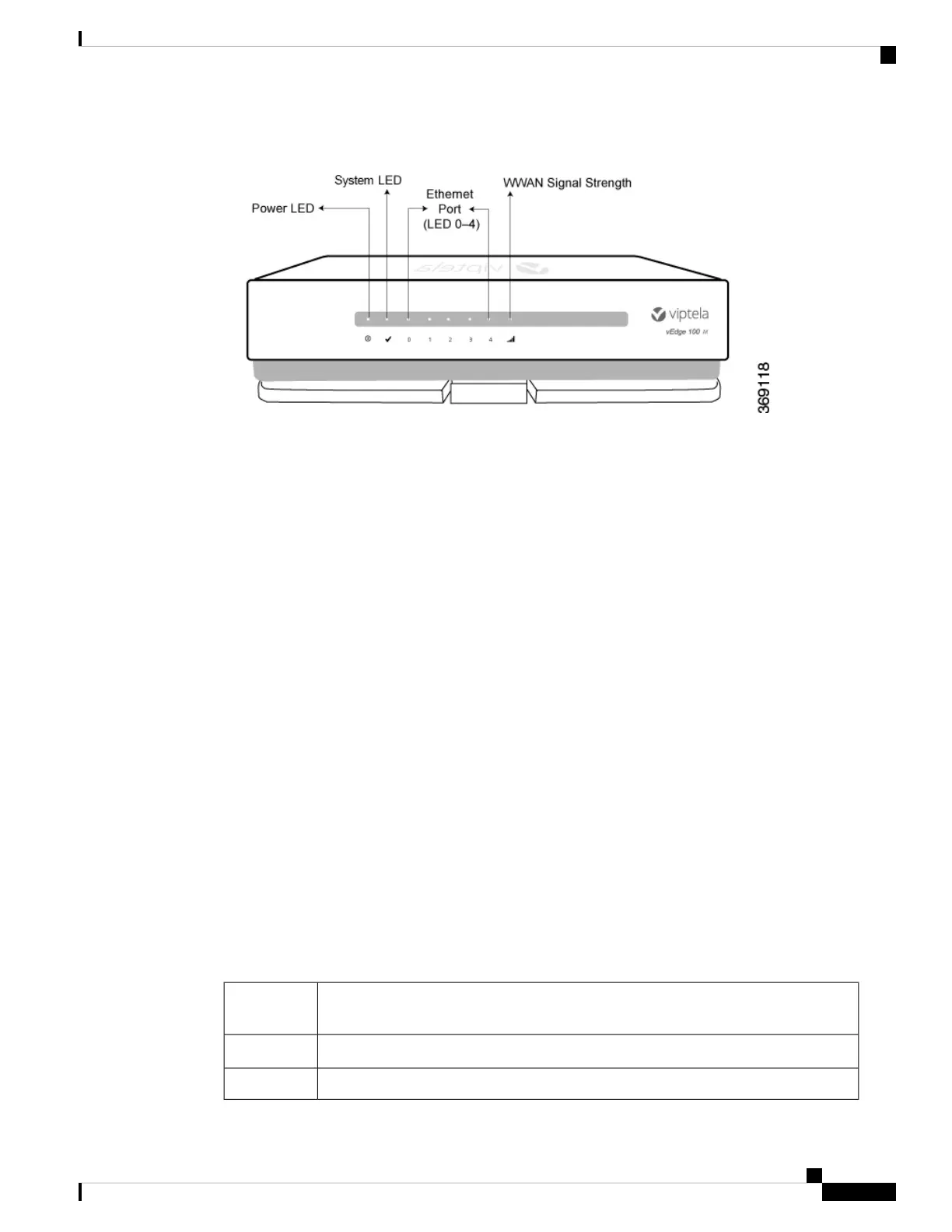

Figure 1: Chassis Status LEDs in a vEdge 100m Router
Rear Panel
The rear panel of the vEdge 100m router has two antenna terminals, a GPS antenna input, a Kensington
security lock slot, and a Reset button. See Chassis Views for the location of all components on the rear panel
of the router.
Antenna Terminals
The rear panel of the vEdge 100m router has two SMA antenna terminals for attaching the two multiband
swivel-mount dipole antennas that ship with the router. For antenna specifications, see Multiband Antenna
Specifications .
GPS Input
The GPS antenna input on the rear panel of the vEdge 100m router allows you to connect an external GPS
antenna that has an SMA connector. If you connect a GPS antenna to the router, it can automatically identify
the router's geographical location.
Kensington Security Lock Slot
The rear panel of the vEdge 100m router has a small metal-enforced hole for attaching a Kensington lock to
secure the router.
Reset Button
The Reset button on the rear panel of the vEdge 100m router is recessed, to avoid accidentally pressing it
while the router is operational. To press the Reset button, use a sharp narrow tool. Table 2 describes the effects
of pressing the Reset button.
Table 19:
BehaviorPress
Duration
Press for 2 seconds to reset and reboot the router.Short press
Press for 10 seconds to reset the router and reboot it with factory default configuration.Long press
Hardware Installation Guide for vEdge Routers
59
vEdge 100m Router
Front and Rear Panel Components

Cisco vEdge Series Specifications

General

Connectivity Technology	Wired
Virtualization Support	Yes
High Availability	Yes
QoS Support	Yes
Product Type	Router
Data Link Protocol	Ethernet
Routing Protocols	BGP, OSPF
Interfaces	Gigabit Ethernet
Operating System	Cisco vEdge OS
Security	IPSec
Management	CLI
