Connect the Router to a Management Console
To connect the vEdge 100m router to a management console:
1. Connect one end of the USB Type-A to Mini-B connector cable into the console port, labeled CONSOLE,
on the vEdge router.
2. Connect the other end of the console cable into a management console.

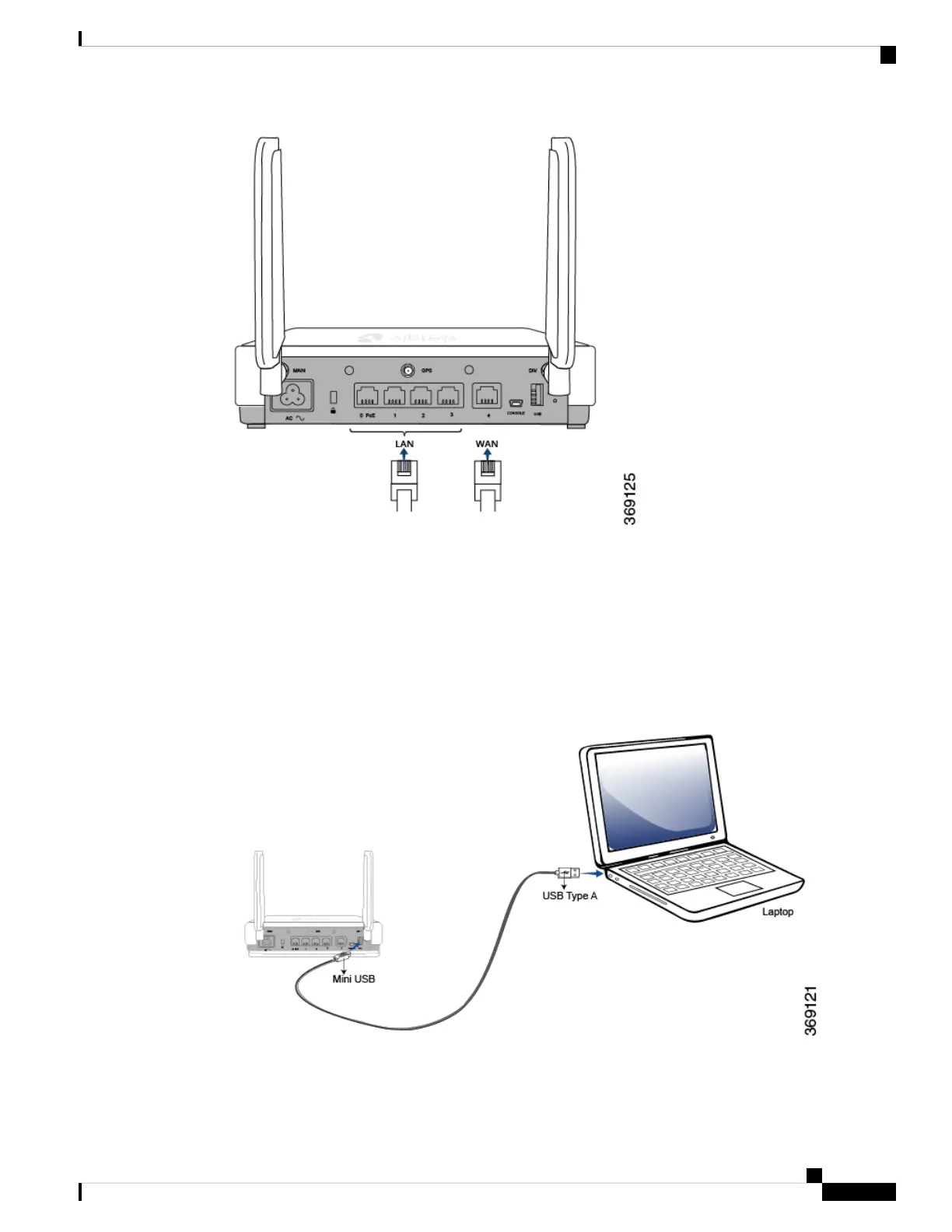

Figure 3: Connecting a vEdge 100m Router to a Management Console
To use the USB console from a Windows device:
1. Go to the Device Manager to determine which COM port is being used for the USB serial port.
Hardware Installation Guide for vEdge Routers
71
vEdge 100m Router
Connect the vEdge 100m Router
