Citrix ADC MPX
• Can I mix SFP+ fiber and DAC in ports that are part of the same link aggregation channel?
No. There must be symmetry between all elements in the same link aggregation channel.
• Which transceivers use the MPO type connector?
Only 40G QSFP+ SR4 transceiver and 100G QSFP28 SR4 transceiversuse the MPO type connector.
All other fiber transceivers use the LC type connector.
• Are special adapters required for 25G, 50G, and 100G ports?
A 100G port can support five speeds: 10G, 25G, 40G, 50G, and 100G. 1G speed is not supported
on the 100G port. 50G and 100G ports use the same transceiver. The appliance determines the
speed, and not the port.
Only 50G/100G (QSFP28) and 40G (QSFP+) transceivers can be directly used on a QSFP28
interface. Use a QSA28 adapter on a QSFP28 interface to use 10G (SFP+) and 25G (SFP28)
transceivers.

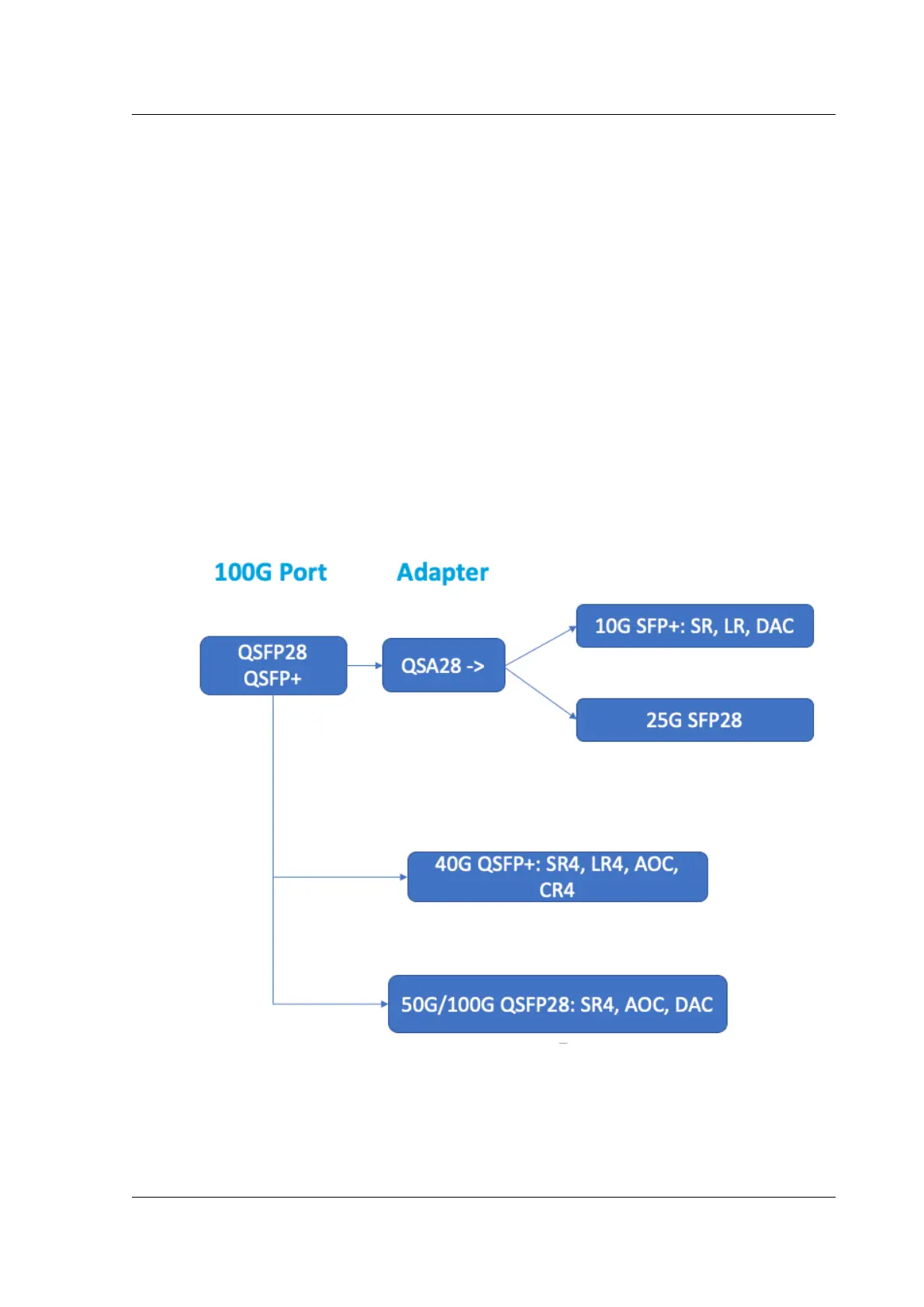

The following diagram shows the transceiver compatibility.
• Is the 40G SR4 QSFP (also known as BiDi) transceiver supported?
Yes. The following platforms support BiDi transceivers:
– MPX/SDX 14000 40C
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 224
