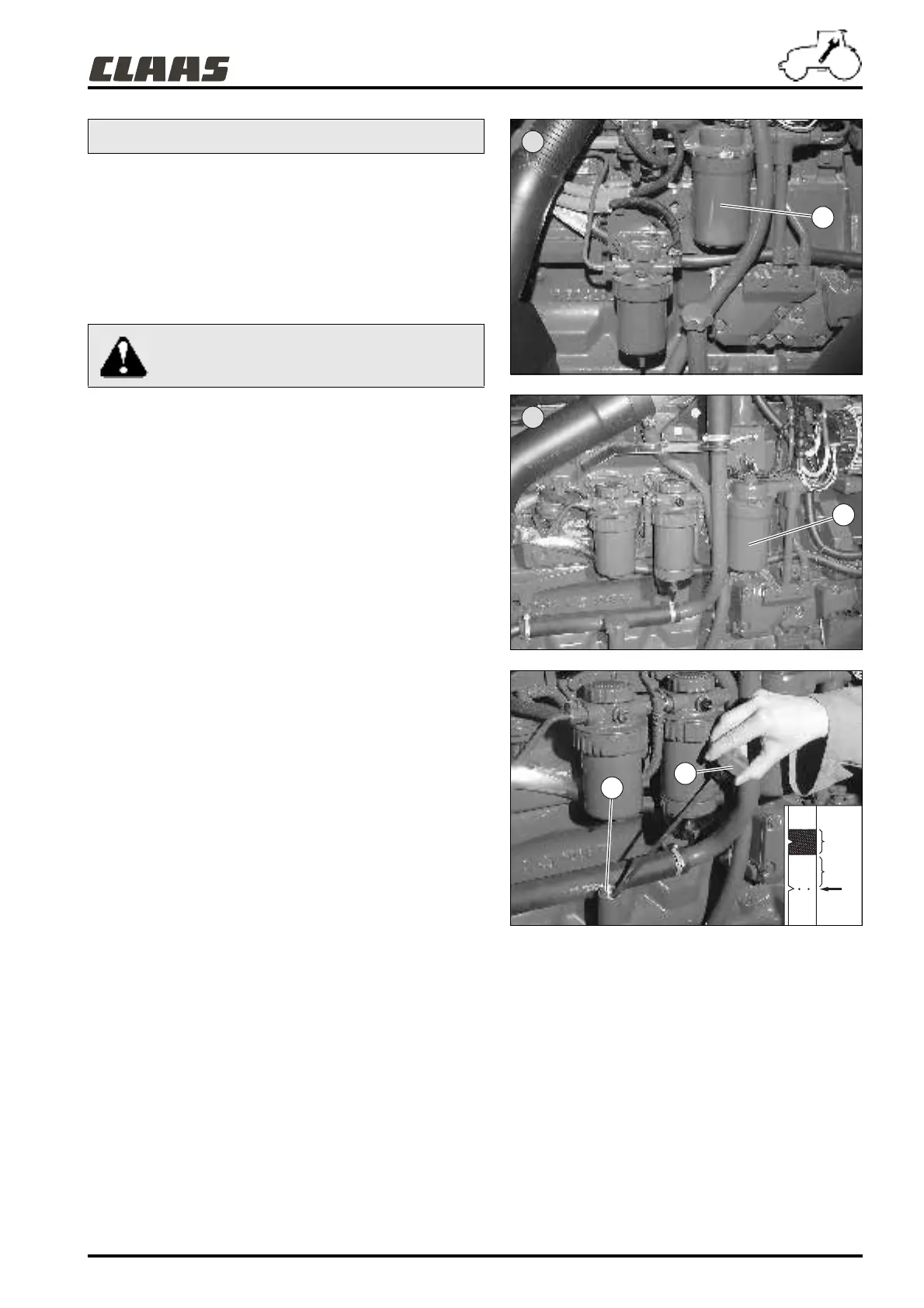

ENGINE OIL FILTER CARTRIDGE:
REPLACE
- Remove the right cover.
1 - Filter position range ARES 500.
2 - Filter position range ARES 600.
- Unscrew the filter cartridge (X) using a filter wrench.
- Lightly oil the rubber seal of the new filter.
- Replace the old filter with the new one and screw down until
the seal is in contact with the filter base. Then tighten it
another half turn.
- Fill the oil sump through aperture (Y), up to the normal level of
use (see operation n° 5).
221msn01
221msn02
111msn01
Operation n°
31
The oil is hot! Avoid getting burned!.
