FreeSpeak Edge | User Guide
5.9.3 Static configuration
By default, the E-IPA-HX card is DHCP enabled, and IPTs are in DHCP mode. However, you
can allocate static IP addresses for an IPT. If the IP AES67 Admin and AES67 Audio IP
addresses are in DHCP mode, you must set them to static mode.

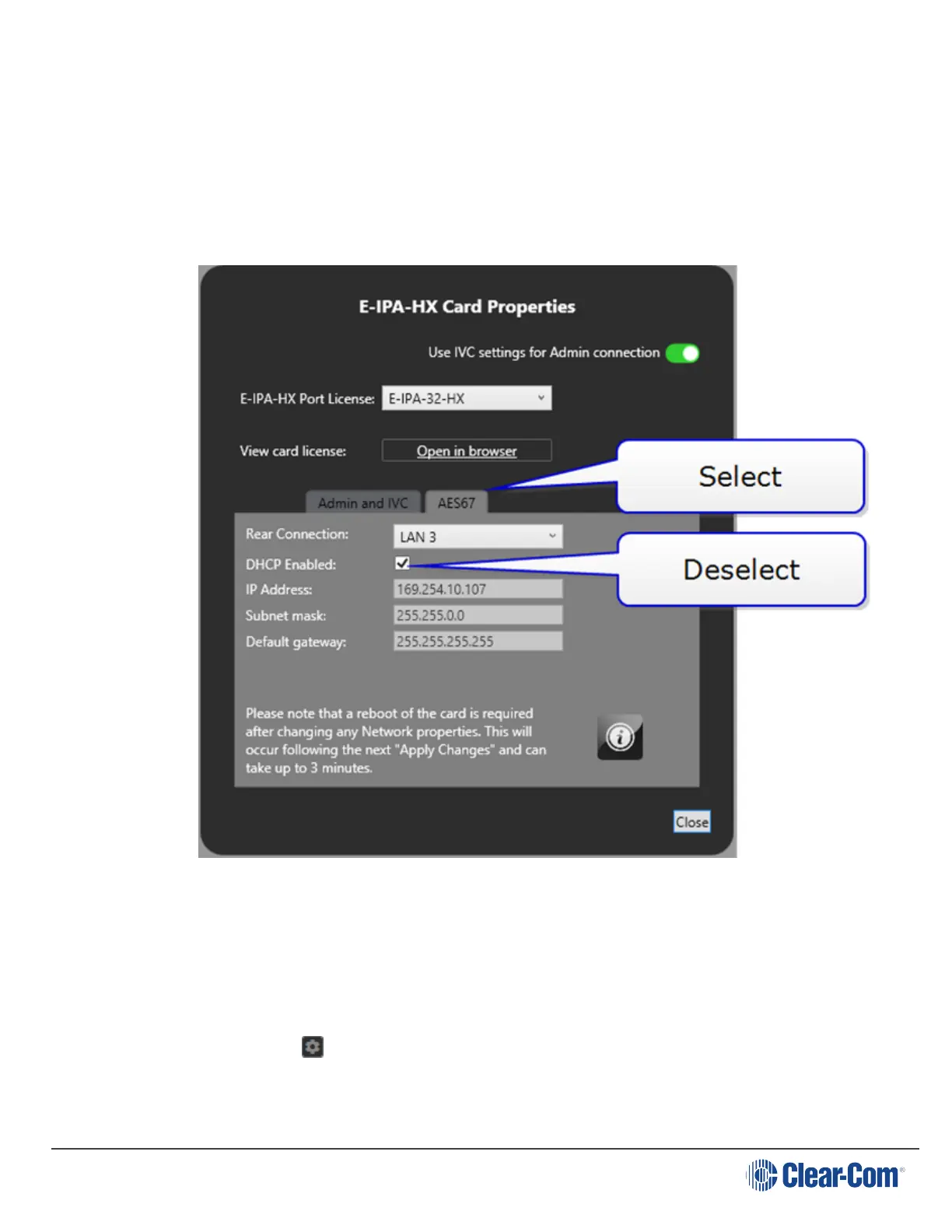

1. Navigate to Hardware > Cards and Ports, and then double-click the card slot containing the
E-IPA-HX card. The Card Properties screen appears.
2. Select the AES67 tab, and then deselect DHCP Enabled.
3. Enter the required static IP address, and then Apply Changes.
4. Click Close.
5. Navigate to Hardware > Transceivers.
6.
Click the cog icon for the required transceiver. The Transceiver Properties screen
appears.
7. Select Edit, and then deselect DHCP Enabled for both AES67 Admin and AES67 Audio.
Page 42
