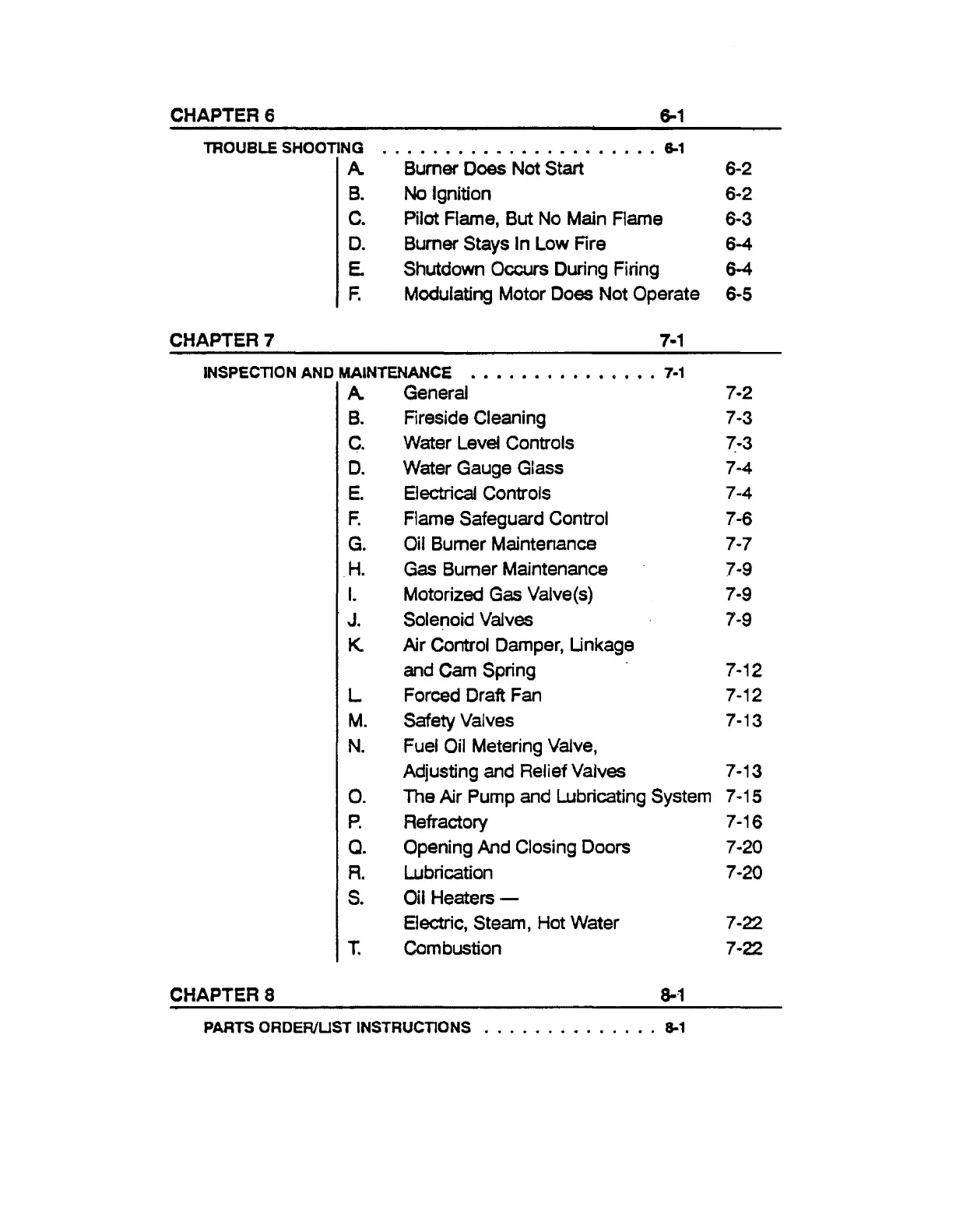

Cleaver-Brooks CBW - Page 12

CHAPTER 6
6-1
TROUBLE SHOOTING
• • • • • • • • • • • • • • • • • • • • • • 8-1
A
Burner Does Not Start
6-2
B. No Ignition
6-2
c.
Pilot Flame, But No Main Flame
6·3
D. Burner Stays In Low Fire 6-4
E.
Shutdown Occurs During Firing
6-4
F.
Modulating Motor Does Not Operate
6-5
CHAPTER 7
7·1
INSPECTION AND MAINTENANCE
• a • • a a e • e e • G • e e 7•1
A
General
7-2
B. Fireside Cleaning
7-3
G.
Water Level Controls
7-3
D.
Water Gauge Glass
7-4
E.
EJectriccU Controls 7-4
F.
Flame Safeguard Control
7-6
G.
Oil Bumer Maintenance
7-7
H.
Gas Bumer Maintenance
7-9
I.
Motorized Gas Valve(s)
7-9
J. Sole~oid Valves 7-9
K
Air Control Damper, Unkage
and Cam Spring
7-12
L
Forced Draft Fan
7w12
M. Safety Valves
7-13
N.
Fuel Oil Metering Valve,
Adjusting and Relief Valves
7-13
0.
The Air Pump and Lubricating System 7-15
P.
Refractory
7-16
a.
Opening And Closing Doors
7-20
A. Lubrication
7·20
s.
Oil Heaters -
Electric,
Steam, Hot Water
7-22
T.
Combustion
7-22
CHAPTER 8
8-·1
PARTS ORDER/UST INSTRUCTIONS
•.•.•.•••••.•• 8-1
