GENERAL DESCRIPTION AND PRINCIPLES OF OPERATION
GAS CONTROL
VALVE
FUEL
OIL
CONTROLLER
OIL
RELIEF VALVE
ERATING, HIGH
LIMIT AND
LATING PRESSURE CONTROLS
WATER COLUMN
AND PUMP CONTROLS

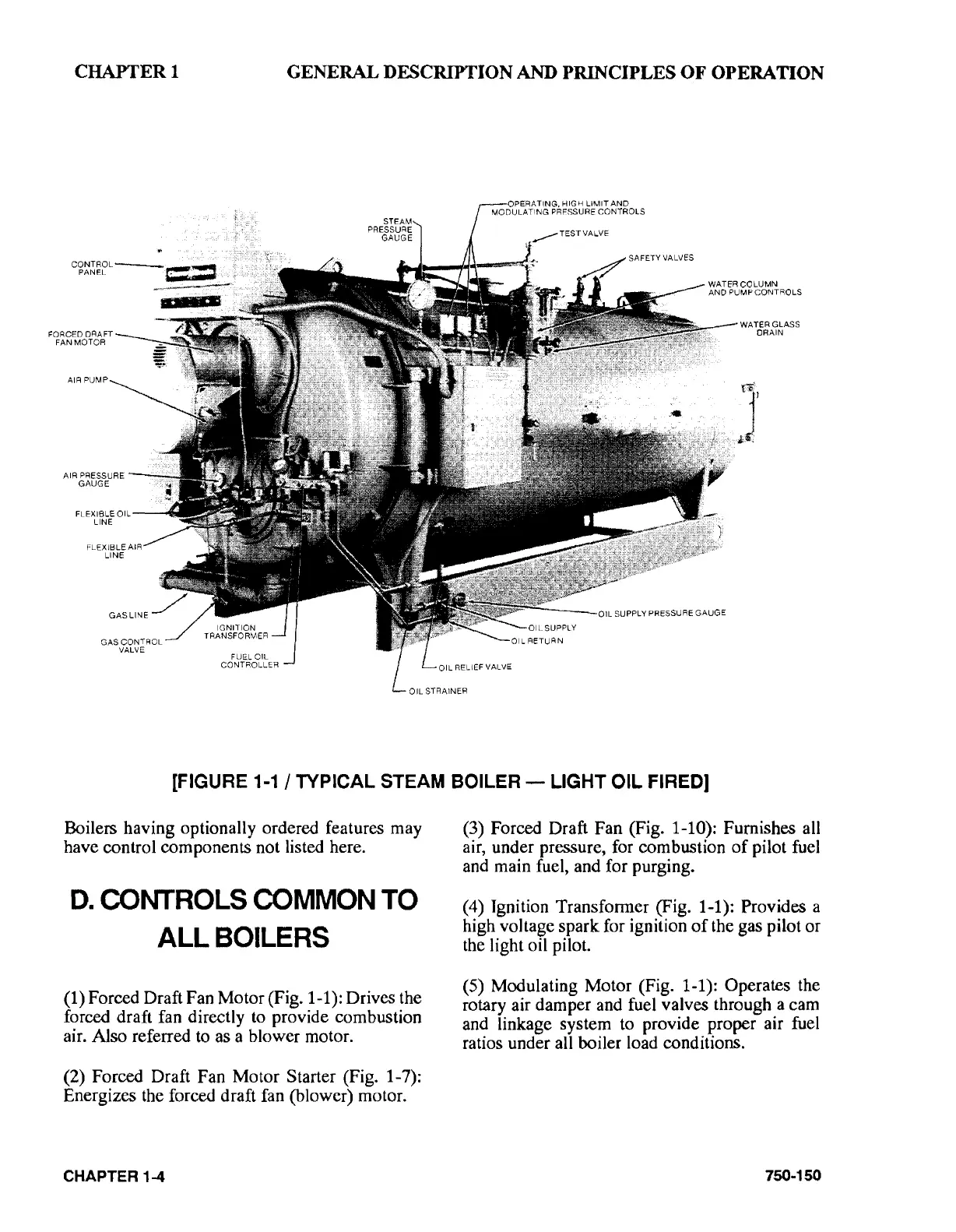

[FIGURE 1-1 I TYPICAL STEAM BOILER- LIGHT OIL FIRED]
Boilers having optionally ordered features may
have control components not listed here.
D. CONTROLS COMMON TO
ALL BOILERS
(1) Forced Draft Fan Motor (Fig. 1-1): Drives the
forced draft fan directly
to provide combustion
air. Also referred
to as a blower motor.
(2) Forced Draft Fan Motor Starter (Fig. 1-7):
Energizes the forced draft fan (blower) motor.
CHAPTER 1-4
(3) Forced Draft Fan (Fig. 1-10): Furnishes all
air, under pressure, for combustion
of pilot fuel
and main fuel, and for purging.
( 4) Ignition Transfonner (Fig.
1-1 ): Provides a
high voltage spark for ignition
of the gas pilot or
the light oil pilot.
(5) Modulating Motor (Fig. 1-1): Operates the
rotary air damper and fuel valves through a cam
and linkage system to provide proper air fuel
ratios under all boiler load conditions.
