Cleaver-Brooks CBW - Chapter 5 Adjustment Procedures

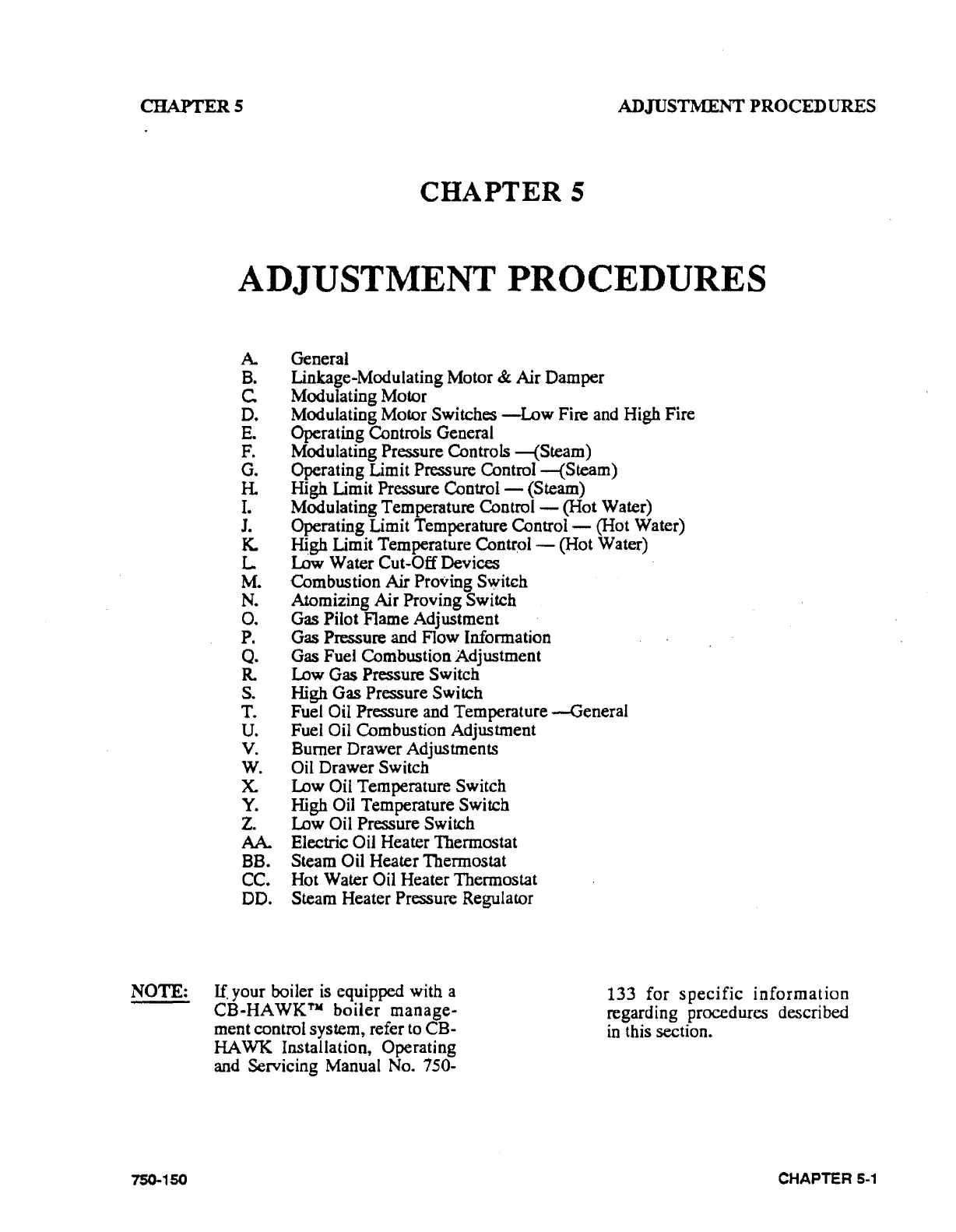

CHAPTERS ADJUSTMENT PROCEDURES
CHAPTERS
ADJUSTMENT PROCEDURES
A General
B. Linkage-Modulating Motor & Air Damper
C. Modulating Motor
D. Modulating Motor
Switches -Low Fire and High Fire
E. Operating Controls General
F. Modulating
Pressure Controls -(Steam)
G. Operating Limit Pressure Control -(Steam)
H. High Limit Pressure Control -(Steam)
I. Modulating Temperature Control- (Hot Water)
J. Operating Limit Temperature Control - (Hot Water)
K. Hi.gh Limit Temperature Contt:pl- (Hot Water)
L. Low Water Cut-Off Devices
M. Combustion Air Proving Switch
N. Atomizing Air Proving Switch
0. Gas Pilot Flame Adjustment
P. Gas Pressure and Flow Information
Q. Gas Fuel Combustion Adjustment
R. Low Gas Pressure Switch
S.
High Gas Pressure Switch
T. Fuel Oil Pressure and Temperature -General
U. Fuel Oil Combustion Adjustment
V. Burner Drawer Adjustments
W.
Oil Drawer Switch
X.
Low Oil Temperature Switch
Y. High Oil Temperature Switch
Z. Low Oil Pressure Switch
AA. Electric Oil Heater Thermostat
BB.
Steam Oil Heater Thermostat
CC. Hot Water
Oil Heater Thermostat
DD. Steam Heater Pressure Regulator
NOTE: If. your boiler is equipped with a
CB-HA WKTM boiler manage·
ment control system, refer to CB-
HA WK. Installation, Operating
and Servicing Manual No. 750-
133 for specific information
regarding procedures described
in this section.
75()..150
CHAPTER 5-1
