Page 48 BB4500-BB5000 Operating Manual

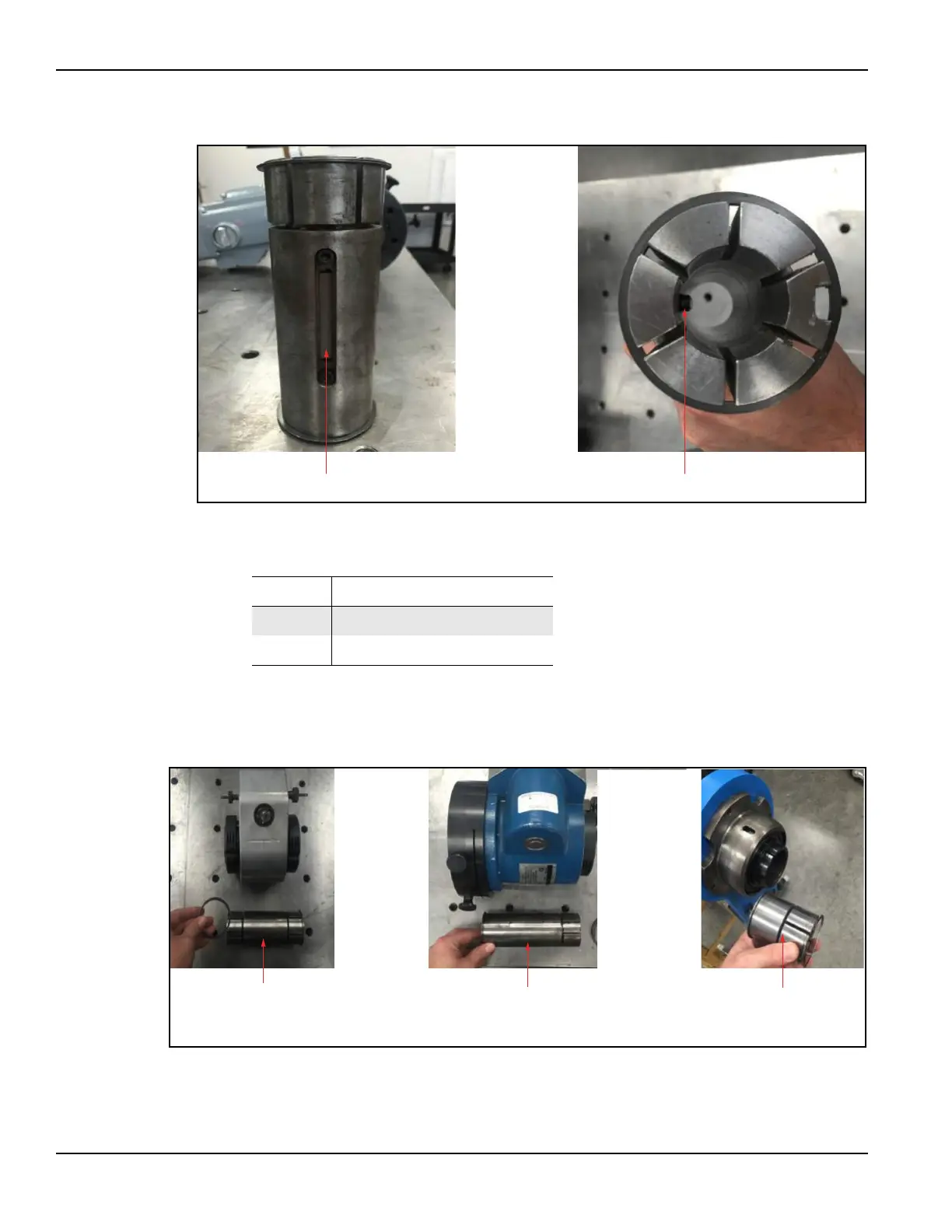

FIGURE 3-19. BB5000 RDU COLLET KEYWAY
Do the following to install the small-bore kit, or for installing collets for the RDU,
AFU, or spherical bearings:
1. Remove a snap ring from one end of the small bore kit collet.
FIGURE 3-20. SNAP RING REMOVAL
TABLE 3-11. RDU COLLET KEYWAY IDENTIFICATION
Number Component
1 Keyway
2 Key
AFU SNAP
RING
RDU SNAP
RING
SPHERICAL
BEARING
SNAP RING
231
