Climax BB5000 - 4 OPERATION

P/N 92974, Rev. 1 Page 49
2. Insert the small bore kit adapter 1.25" (32 mm) ID collet into the existing
2.25" (57 mm) ID collet.

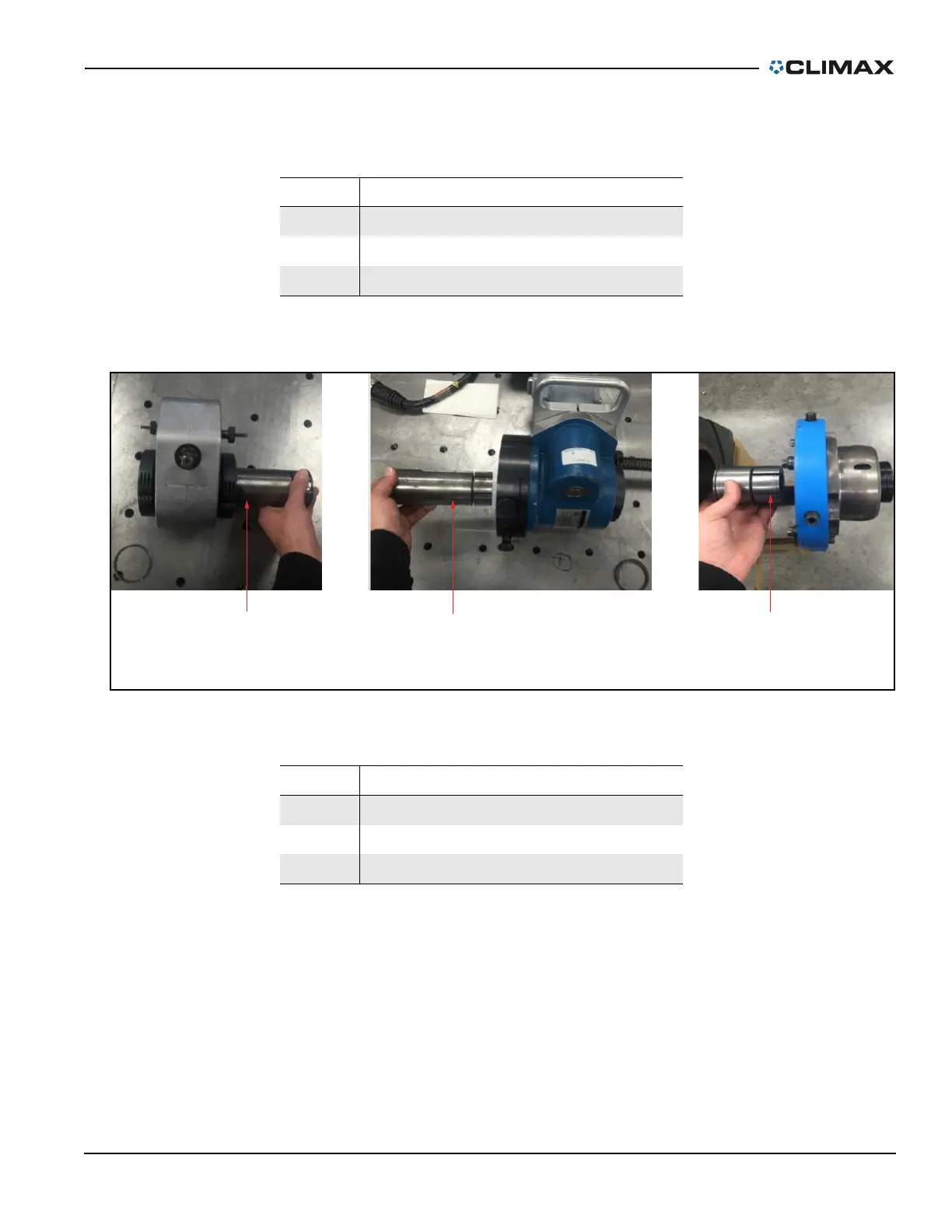

FIGURE 3-21. SMALL BORE KIT ADAPTER INSERTION
TIP:
When installing the RDU collet, make sure to line up the keyway to
accept the key in the RDU.
3. Replace the snap ring and install the 1-1/4" bar (see Figure 3-22 on page
50).
TABLE 3-12. SNAP RING REMOVAL IDENTIFICATION
Number Component
1 AFU snap ring
2 RDU snap ring
3 Spherical bearing snap ring
AFU SMALL
BORE KIT
ADAPTER
RDU SMALL
BORE KIT
ADAPTER
SPHERICAL
BEARING
SMALL BORE
KIT ADAPTER
231
TABLE 3-13. SMALL BORE KIT ADAPTER IDENTIFICATION
Number Component
1 AFU small bore kit adapter
2 RDU small bore kit adapter
3 Spherical bearing small bore kit adapter
