2110 SSB Transceiver Reference Manual 27
CODAN
4 The 2110 SSB Transceiver
The 2110 SSB Transceiver consists of a:
• handset
• 2110 transceiver unit
• battery pack
• antenna and earthing equipment
The handset is a hand-held device that has a microphone, and PTT button. The
microphone and PTT button are used for voice communication.
The transceiver unit modulates audio signals onto radio frequencies that can be
transmitted on air, and demodulates the radio frequencies it receives into audio signals.
The keypad on the front panel of the transceiver unit enables you to control and
configure the 2110 SSB Transceiver. The handset connects to the front panel.

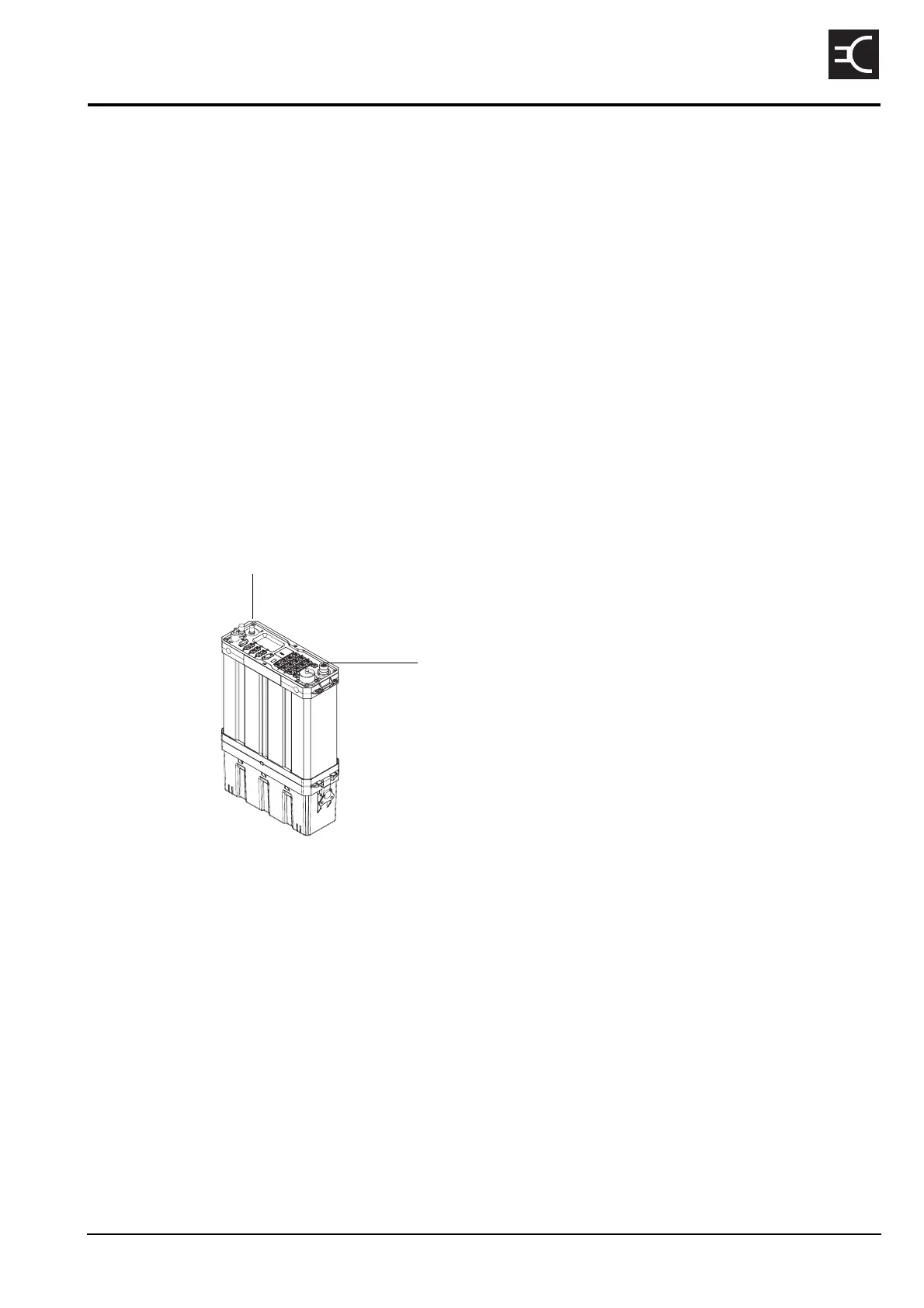

Figure 2: The 2110 SSB Transceiver
to handset
to antenna
